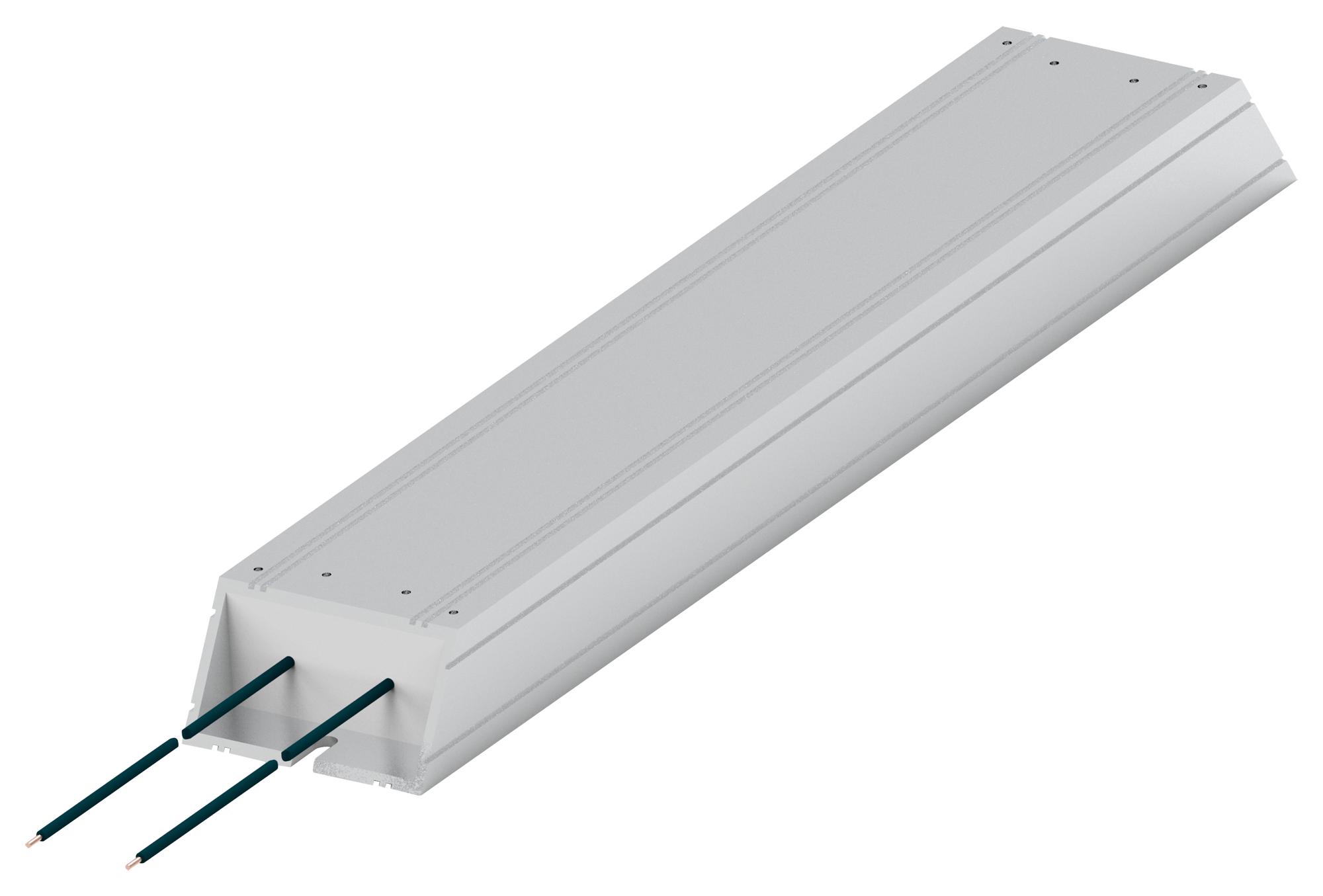

TE CONNECTIVITY HCH335J82RJ Braking Resistor
The aluminium housed braking resistor is designed for high-power overload absorption in braking applications, featuring IP54 ingress protection and PTFE insulated flying leads. It is available in multiple power ratings from 200W to 500W, with resistance ranges of 680-2200Ω to 102-2200Ω. The resistors undergo rigorous testing for load life, damp heat, insulation resistance, and dielectric strength, ensuring durability and reliable performance in industrial drive systems. The anodized aluminium body, robust construction, and variable pulse overload ratings make it suitable for high-performance braking needs.
TE CONNECTIVITY HCH335J82RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680-2200Ω to 102-2200Ω
- Tolerance: +5%, +10%
- Maximum Working Voltage: 1100V
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Ingress Protection: IP54
- Resistor Element: Wire Wound
- Resistor Body: Anodized extruded Aluminium Profile
- Flying Lead Length: 300 mm, PTFE Insulated, rated 1000V, 200°C
- Dimensions (L): HCH165 165mm, HCH215 215mm, HCH265 265mm, HCH335 335mm
Buy the TE Series Braking Resistor: HCH335J82RJ
Purchase the TE Series aluminium housed braking resistor online today to ensure your industrial drive systems operate efficiently and reliably. Designed for high overload capability, the resistor features IP54 ingress protection, PTFE insulated flying leads, and a robust aluminium body for durability. Available in various power ratings from 200W to 500W, it undergoes extensive testing for load life, insulation, and dielectric strength. This resistor provides dependable performance in demanding braking applications, enabling precise control and long-lasting operation in industrial environments.
Get TE Series HCH335J82RJ aluminium housed braking resistor today—built for high power loads, durability, and reliable braking performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J82RJ?
You can click on the BUY or RFQ button to purchase HCH335J82RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J82RJ?
You can download the HCH335J82RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J82RJ?
TE CONNECTIVITY
