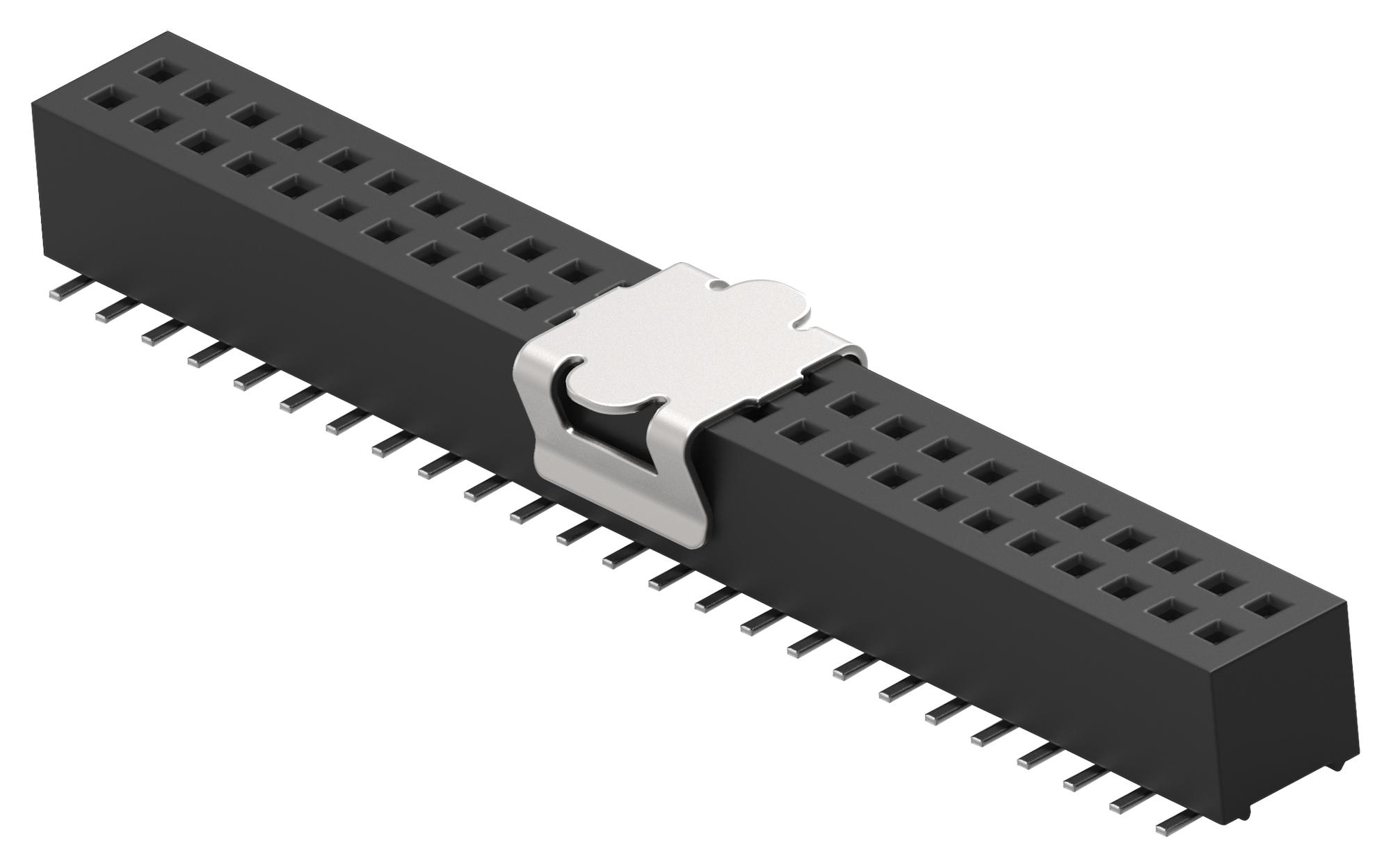

TE CONNECTIVITY 222674655 Interconnection System
TE Connectivity's AMPMODU Small Centerline Interconnection Systems are high-precision, 1.0 mm pitch connectors designed for space-saving PCB assemblies. They offer reliable dual-beam contact design, ensuring stable electrical connections even in shock and vibration conditions. Suitable for automation, industrial controls, telecommunication, and robotics, these connectors support surface mounting with packaging in tubes with pick and place caps. Made from high-temperature thermoplastic with gold-plated contacts, they meet RoHS and REACH standards, providing durability and corrosion resistance in demanding environments.
TE CONNECTIVITY 222674655 Interconnection System Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing: high-temperature thermoplastic (LCP)
- Mounting style: surface mount
- Header/receptacle contact material: copper alloy
- Plating options: 30" [0.76 um] gold flash
- Receptacle contact design: dual beam, gold flash
- Receptacle entry: dual entry
- Operating temperature: -55°C to +125°C
- Solderability: re-flow capable up to 260°C
- Electrical: UL recognized at 1.0A, CSA recognized at 0.8A, Operating voltage: 30VAC, Dielectric withstand voltage: 300VAC
- Vibration resistance: no electrical discontinuity >1 µs per E1A-364-28
Buy the TE Connectivity 222674655 – Reliable Interconnection for Industrial Applications
Order TE Connectivity's Interconnection System online today to enjoy quick delivery of reliable, space-saving connectors designed for industrial controls, automation, robotics, and telecommunication devices. These connectors feature dual-beam contact technology, gold plating for durability, and are reflow-solderable up to 260°C, ensuring high performance in demanding environments. Perfect for surface mount applications, they support up to 100 positions per row, facilitating efficient assembly and enhanced connection stability, making them an excellent choice for engineers and manufacturers seeking quality and reliability.
Get TE Connectivity 222674655 today—built for precision and long-lasting durability in industrial PCB assemblies.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 222674655?
You can click on the BUY or RFQ button to purchase 222674655 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 222674655?
You can download the 222674655 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 222674655?
TE CONNECTIVITY
