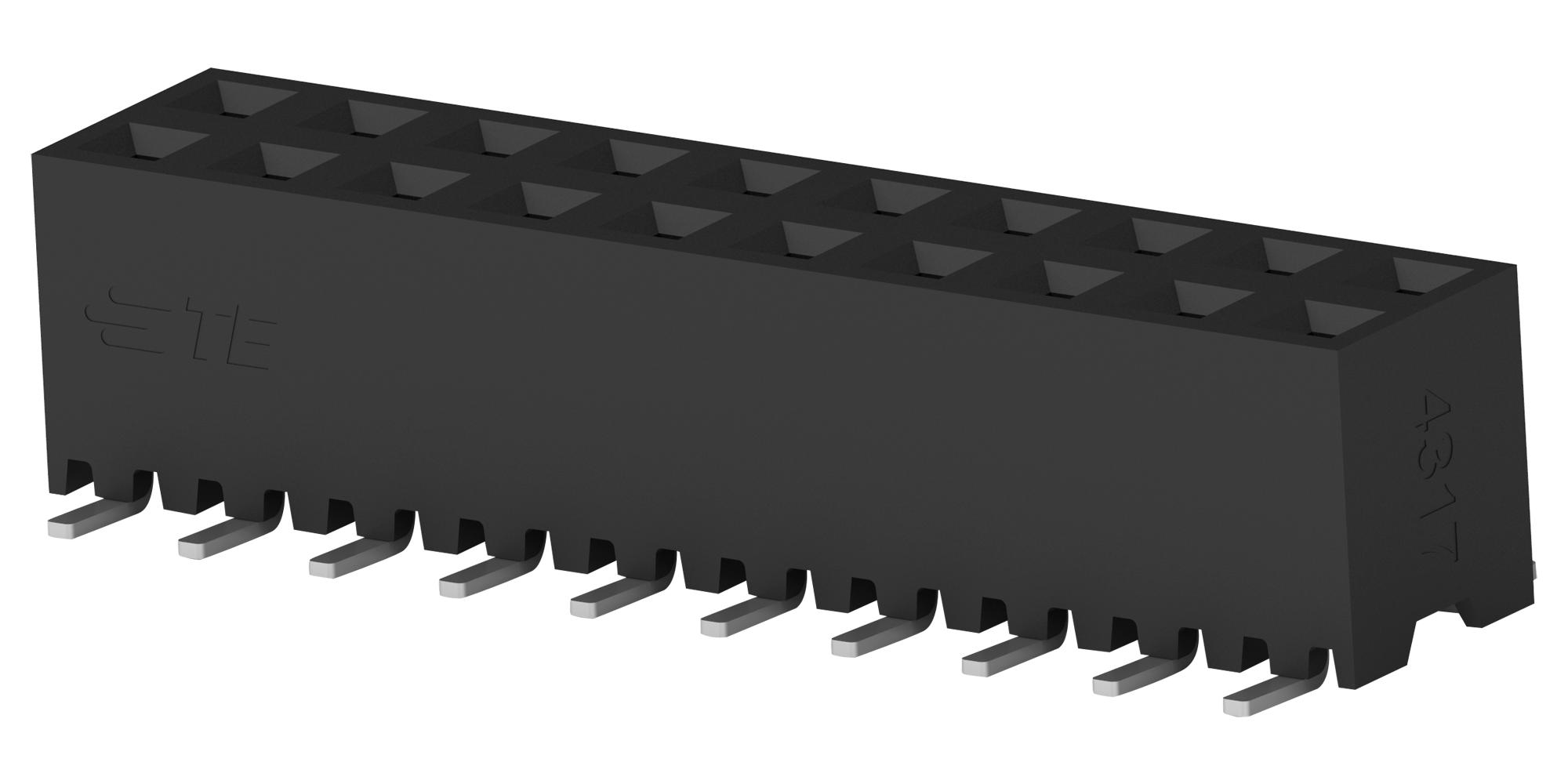

TE CONNECTIVITY 223148460 2mm Breakaway Header
The TE Connectivity AMPMODU 2mm Breakaway Header is a space-efficient, reliable connector designed for PCB applications in industrial automation. It features a 2mm centerline, 0.50mm square pins, and is compatible with automated surface mounting and through-hole assembly methods. The header supports 2-25 positions per row, suitable for high-density layouts, with operating temperatures from -40°C to 125°C. Made of high temperature plastic with brass contacts plated in gold or tin, it provides a dielectric withstand voltage of 650VAC, ensuring durability in various industrial environments and applications such as PLCs, servo drives, and instrumentation.
TE CONNECTIVITY 223148460 2mm Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2-25 per row, available in single and double row configurations
- PCB Thickness Compatibility: 1.6mm to 2.4mm [0.063" to 0.094"]
- Operating Temperature: -40°C to 125°C
- Housing Material: High temperature UL 94VO plastic, black
- Contact Material: Brass, Gold-plated (30p", 15u"), Tin
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Reflow Solder Capable: Up to 260°C
- RoHS & REACH Compliant
- Vibration Resistance: No electrical discontinuity greater than 1 microsecond according to UL certification
Buy the TE Series AMPMODU 2mm Breakaway Header: 223148460
Purchase the TE Connectivity AMPMODU 2mm Breakaway Header online today to enhance your circuit board designs. This space-saving connector supports automated mounting, offers excellent electrical durability, and is suitable for industrial control systems, servo drives, and instrumentation. With gold or tin plating, high-temperature plastic housing, and a compact 2mm centerline, it ensures high reliability in demanding environments. Order now for fast delivery and improve your manufacturing efficiency with this versatile, high-quality connector.
Buy TE Connectivity AMPMODU 2mm Breakaway Header now and experience unmatched reliability and high-density PCB assembly solutions, ideal for industrial automation and test equipment.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223148460?
You can click on the BUY or RFQ button to purchase 223148460 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223148460?
You can download the 223148460 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223148460?
TE CONNECTIVITY
