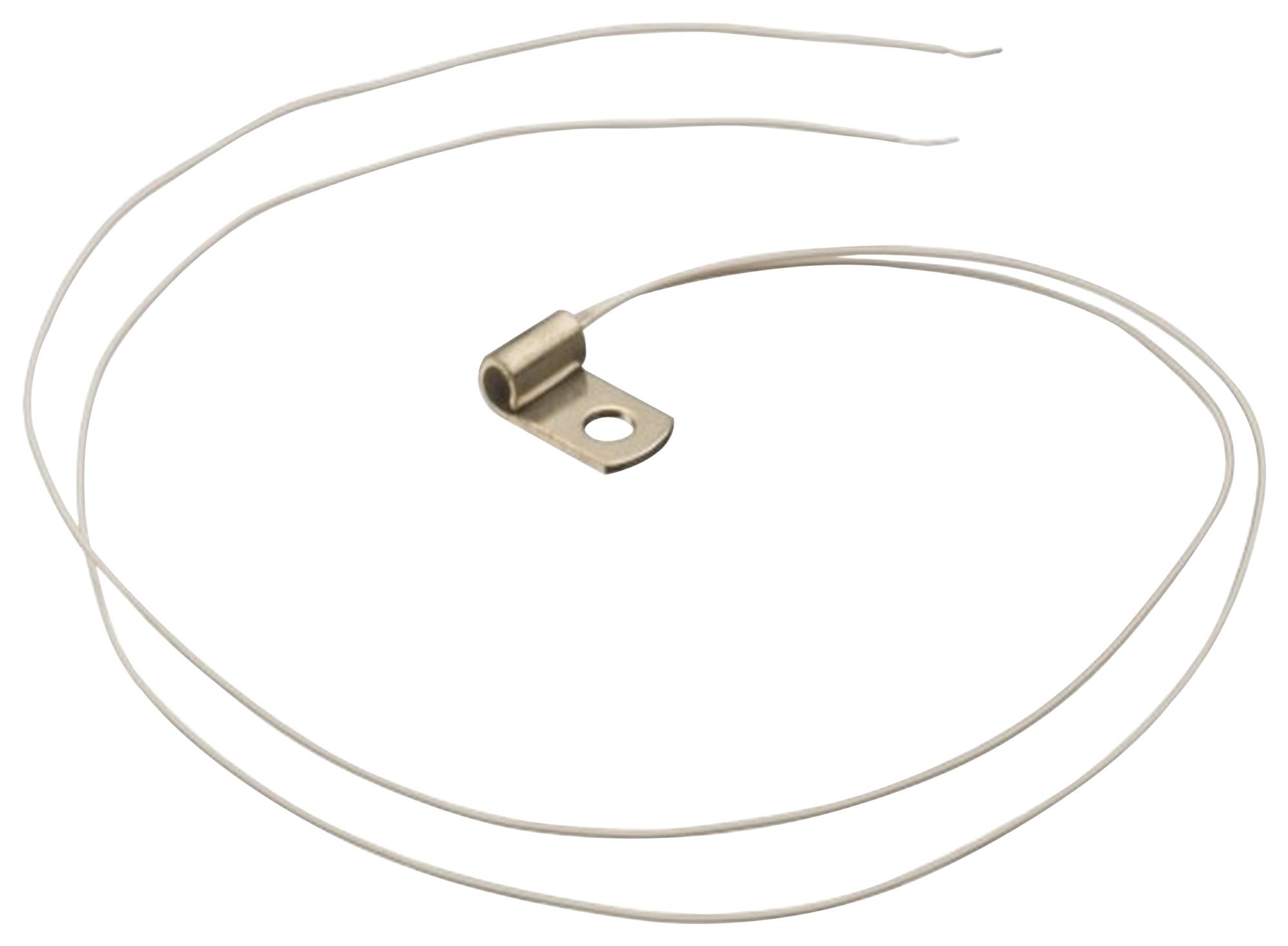

TE CONNECTIVITY GA10K4D25 Temperature Sensor
The Surface Mount Flag Terminal Probe is an NTC thermistor sensor designed for bolt-in applications to measure and control temperatures in motors, heat exchangers, and fluid systems. It features a copper housing with excellent thermal transfer, a soldered thermistor bead, and a potted Mylar tube in a black epoxy resin for durability. Available in various lead lengths and mounting hole sizes, it operates within -40°C to +125°C, offering precise resistance and beta value for reliable temperature sensing and heat sink management.
TE CONNECTIVITY GA10K4D25 Temperature Sensor Specifications:
- Resistance @ +25°C: 10,000 Ohms
- Resistance tolerance from 0°C to +70°C: +0.2
- Beta Value 25/85: 3694 K
- Tolerance on Beta Value 25/85: +0.5%
- Temperature range: -40°C to +125°C
- Housing material: Tin-plated copper
- Encapsulation: Black thermally conductive epoxy
- Lead wires: 28 AWG silver-plated copper with ETFE insulation
- Mounting hole sizes: Several options available
- Response time in liquids: <5 seconds
- Dimensions: Length approximately 305+6.4mm, with optional sizes
- RoHs compliant
- Suitable for bolt-in applications, cooling, and temperature control
- Ideal for motors, surface plates, heat exchangers, and heat sink applications
Buy the TE Connectivity Series Temperature Sensor: GA10K4D25
Experience reliable temperature measurement with the TE Connectivity Surface Mount Flag Terminal Probe GA10K4D25. Featuring high accuracy resistance at +25°C and a broad operating range from -40°C to +125°C, this thermistor sensor is ideal for controlling and monitoring motors, heat exchangers, and fluid systems. Its durable copper housing with epoxy encapsulation ensures longevity and efficient thermal transfer. Available in various lead lengths and mounting sizes, purchase online today to ensure precise temperature management in your critical applications.
Get TE Connectivity GA10K4D25 today—built for precision and long-lasting durability in temperature sensing applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GA10K4D25?
You can click on the BUY or RFQ button to purchase GA10K4D25 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GA10K4D25?
You can download the GA10K4D25 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GA10K4D25?
TE CONNECTIVITY
