TE CONNECTIVITY 223305512 LGA 4189 Socket Hardware
The LGA 4189 socket and hardware from TE Connectivity support next-generation CPUs and are qualified for high-performance server, data center, and HPC applications. Constructed with a durable housing of LCP and copper alloy contacts plated with 15 or 30 microinches of gold, these sockets support PCIe Gen 4 and multi-processor systems. Designed for high reliability and quick prototyping, they feature a 0.9906mm pitch, a height of 2.7mm, and electrical ratings of 0.5 Amps with insulation resistance exceeding 800 megohms. Ideal for advanced computing and server configurations, offering full hardware solutions with bolsters, back plates, and dust covers.
TE CONNECTIVITY 223305512 LGA 4189 Socket Hardware Specifications:
- Current rating: 0.5 Amps
- Insulation resistance: 800 megohms min. @ 500 VDC
- Durability: 30 cycles
- Housing: LCP thermoplastic
- Contact Material: Copper alloy, 15u” or 30u” gold plated
- Pitch: 0.9906mm

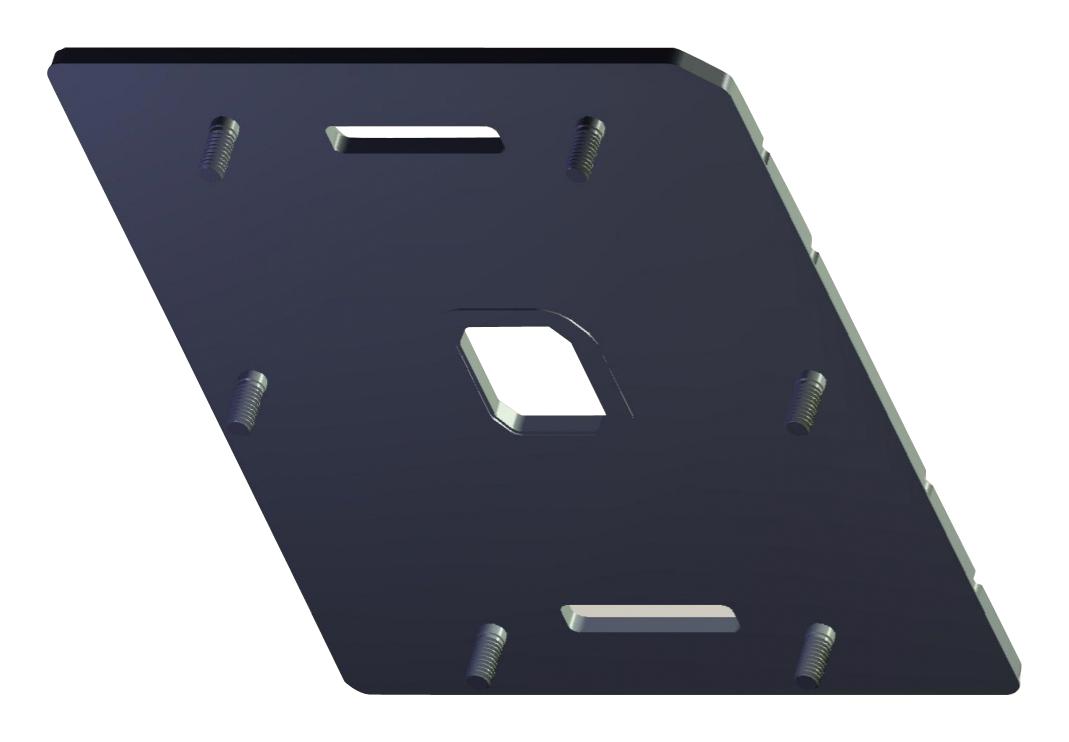

- Hardware: Bolster plates, back plates, dust covers available
- SP height: 2.7mm
- Contact force: 25gf @ nominal def.
- Supports PCIe Gen 4 and multi-processor system architectures
- Suitable for PCB thicknesses of 1.42mm-3.94mm
Buy the Cee LGA 4189 – Reliable Socket for Industrial Applications
Order the LGA 4189 socket and hardware from Cee online today to ensure reliable, high-performance server and HPC setups. These sockets support PCIe Gen 4, multi-processor architectures, and come with comprehensive hardware solutions including bolsters, back plates, and dust covers. Crafted from durable materials like LCP housing and gold-plated copper contacts, they guarantee high electrical performance and mechanical durability with up to 30 cycles. Ideal for advanced data center and computing applications, buying online offers fast delivery and expert support for your design needs.
Get Cee LGA 4189 today—built for precision, durability, and high-performance server applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223305512?
You can click on the BUY or RFQ button to purchase 223305512 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223305512?
You can download the 223305512 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223305512?
TE CONNECTIVITY
