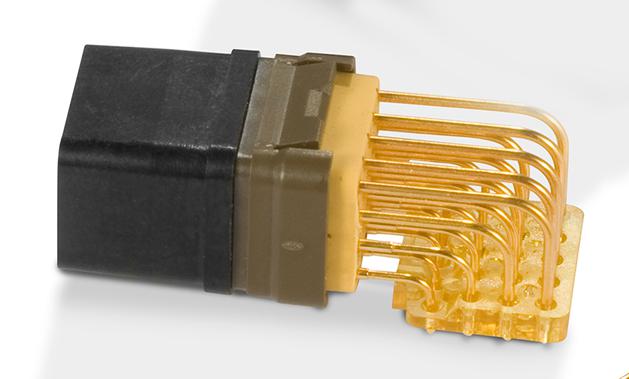

TE CONNECTIVITY ZPF000000000100796 Aerospace Modular Connector
The Deutsch DMC-MD series connectors are modular, lightweight, and highly reliable solutions designed specifically for aerospace cabin and avionics systems. They conform to standards EN4165, ARINC 809, and BACC65, offering fiber optic, hybrid, and high-speed Ethernet modules along with various shells and accessories. These connectors feature durable composite housings, corrosion-resistant gold-plated contacts, and broad environmental tolerance. Suitable for aircraft IFE and cabin wiring, they provide quick installation, modular reconfiguration, and 500 mating cycles, ensuring robust performance in demanding aerospace environments.
TE CONNECTIVITY ZPF000000000100796 Aerospace Modular Connector Specifications:
- Housing Material: Composite, nickel plated
- Modules Material: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, gold plated over nickel
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10⁻³ bar
- Insulation Resistance: 5000 MΩ
- Contact Current Ratings: Size 24 3A, Size 20 0.75A, Size 16 1.3A, Size 12 2.3A, Size 8 4A
- EMI Shielding: Attenuation up to 50 dB at 100 MHz, 30 dB at 1000 MHz
- Overall Dimensions: Receptacles and plugs optimized for panel mounting with cutout dimensions around 18-35 mm
- Compatibility: Supports aluminium contacts, Boeing part numbers, and EN4165 standard modules
Buy the Buy Deutsch Connector Part Number ZPF000000000100796 Online
Purchase the Deutsch aerospace connector online today for a trusted, modular solution engineered for demanding aircraft environments. Designed to offer quick installation, extensive environmental resistance, and long-lasting performance, this connector system supports fiber optic, hybrid, and high-speed Ethernet modules. Its lightweight composite housing, corrosion-resistant contacts, and compatibility with industry standards ensure optimal reliability and flexible configurations for cabin and avionics wiring. Benefit from fast delivery, secure ordering, and technical support to enhance your aerospace system efficiency and safety.
Buy Deutsch connector part number ZPF000000000100796 now and experience unmatched reliability and ease of installation in aerospace applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY ZPF000000000100796?
You can click on the BUY or RFQ button to purchase ZPF000000000100796 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part ZPF000000000100796?
You can download the ZPF000000000100796 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of ZPF000000000100796?
TE CONNECTIVITY
