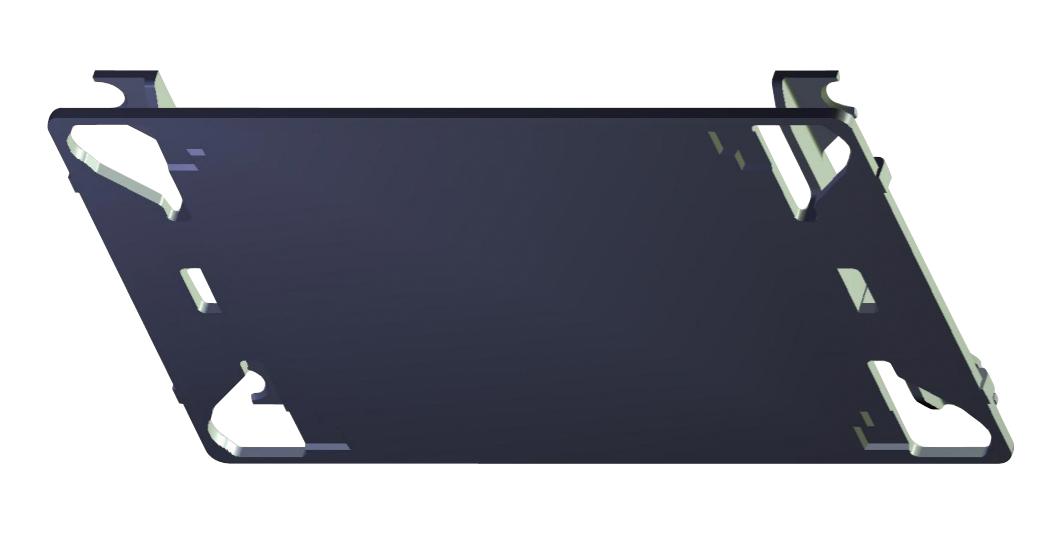

TE CONNECTIVITY 223305531 CPU Socket
The LGA 4189 socket and hardware from TE Connectivity are engineered for high reliability to support latest generation CPUs, including PCIe Gen 4. Made with durable materials like LCP housing and copper alloy contacts with gold plating, they ensure stable electrical connections and mechanical durability for servers, data centers, and high-performance computing. The socket supports multi-processor architectures, withstands 30 connection cycles, and has an electrical rating of 0.5 Amps with resistance over 800 megohms. Designed for quick prototyping with flexible tooling and full solution integration.
TE CONNECTIVITY 223305531 CPU Socket Specifications:
- Current rating: 0.5 Amps
- Insulation resistance: 800 megohms min. @ 500 VDC
- Durability: 30 cycles
- Housing material: LCP (Liquid Crystal Polymer)
- Contact material: Copper alloy, gold plated (15u" or 30u")
- Cap material: Thermoplastic
- Pitch: 0.9906mm
- Height: 2.7mm
- Contact force: 25gf @ nominal deflection
- Support: PCIe Gen 4, multi-processor architectures
- Product compatibility: Supports latest CPU designs, full solution provider
- Housing: Two-piece design
- Back plate: PCB thickness ranging from 1.42mm to 3.94mm
- Bolt and carrier options available for different configurations
- Electrical performance: Insulation resistance minimum 800 megohms at 500 VDC
Buy the TE Connectivity 223305531 – Reliable CPU Socket for Industrial Applications
Purchase the TE Connectivity CPU Socket today for reliable performance in server, data center, and HPC applications. Designed for next-generation CPUs, it features durable materials like LCP housing and gold-plated copper contacts. Supports PCIe Gen 4 and multi-processor configurations, with a compact height of 2.7mm and a contact force of 25gf. With a current rating of 0.5 Amps and insulating resistance of 800 megohms, this socket ensures stable electrical connections, quick prototyping, and full system integration—making it ideal for demanding industrial and computing environments.
Get TE Connectivity 223305531 today—built for precision, supporting next-generation CPUs, and ensuring long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223305531?
You can click on the BUY or RFQ button to purchase 223305531 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223305531?
You can download the 223305531 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223305531?
TE CONNECTIVITY
