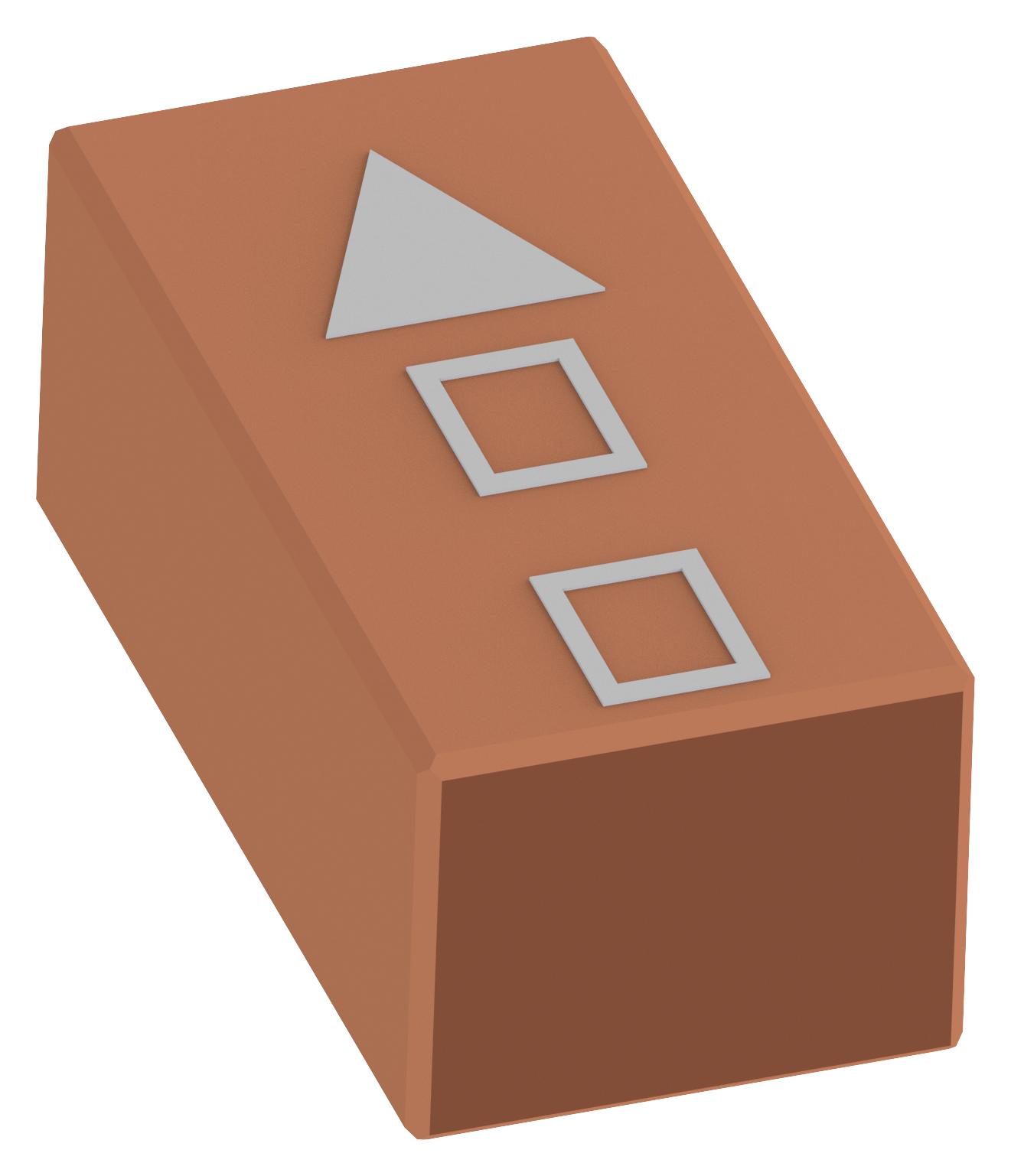

TE CONNECTIVITY 21088321 Embedded Chip Antenna
The TE Connectivity 2108832-1 is a compact embedded ceramic chip antenna optimized for 2.4 GHz wireless applications, including Wi-Fi, Bluetooth, and ZigBee. Its small form factor and surface mount design make it ideal for integration into space-constrained devices. The antenna delivers a balance of performance and ease of integration, supporting reliable wireless communication in a variety of industrial and consumer applications. Proper PCB layout and ground plane considerations are essential for optimal performance, as detailed in the mounting guide.
TE CONNECTIVITY 21088321 Embedded Chip Antenna Specifications:
- Frequency Range: 2400 - 2500 MHz
- VSWR: < 2.8:1
- Average Efficiency: 82 %
- Peak Gain: 1.8 dBi
- Average Gain: -1.9 dBi
- Feed Point Impedance: 50 ohms
- Polarization: Linear
- Size: 3.0 mm x 1.5 mm x 1.2 mm
- Weight: < 0.02 g
- Mounting: Surface mount
- Operating Temperature: -40 to +85°C
- Storage Temperature: -40 to +85°C
