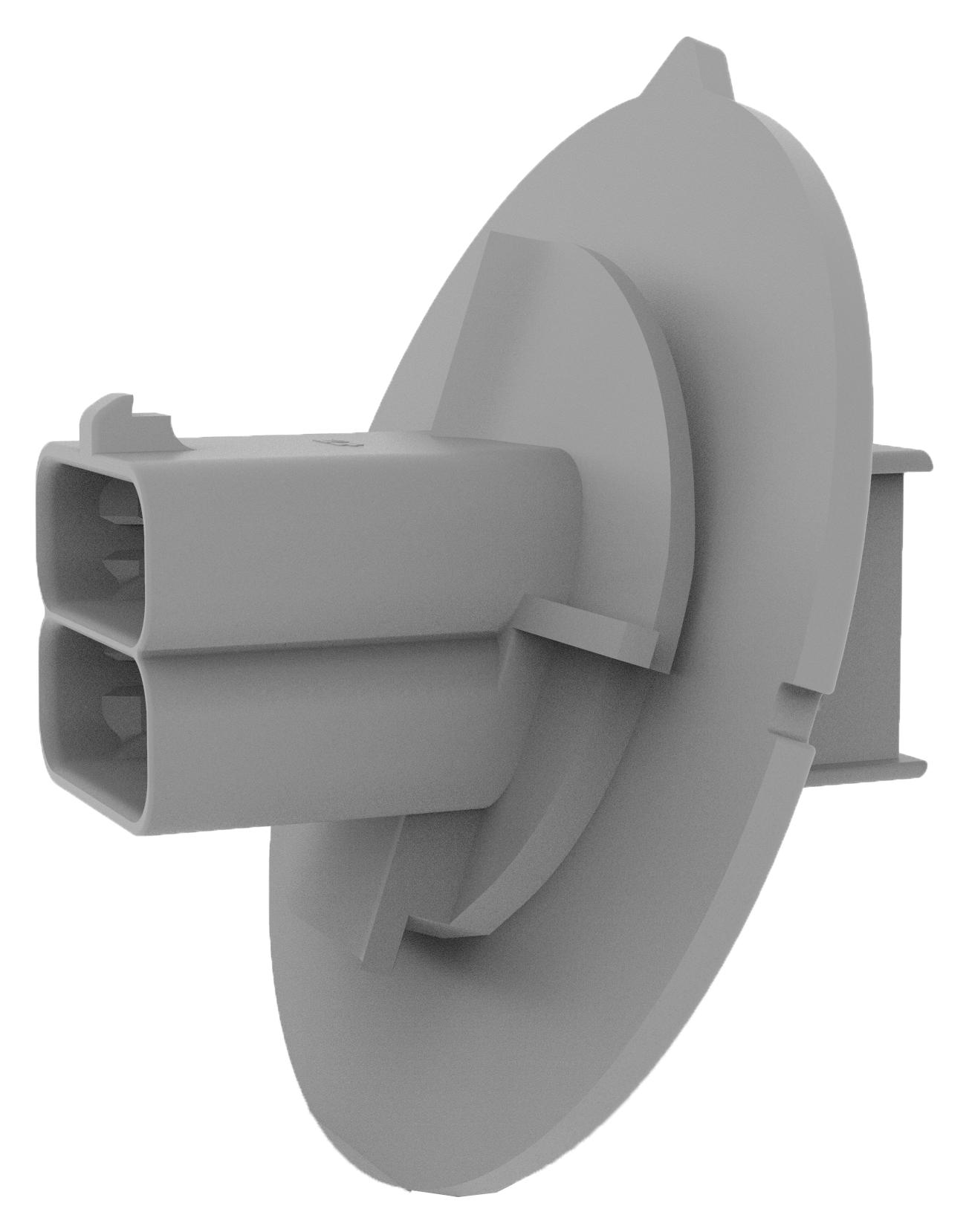

TE CONNECTIVITY 223362316 Power Connector
The Power Versa-Lock connector system is a high-performance, wire-to-wire solution suitable for power and signal applications. It features IP67 protection, a twist-and-lock cap that wards off moisture, and optional sealing mechanisms, making it ideal for outdoor and industrial environments. Compatible with various electrical devices, including refrigeration, automation, lighting, and automotive systems, it supports up to 15A and 600VAC. Constructed from durable materials with UL 94V-0 flammability rating, it ensures safety and reliability in demanding applications. Its compact 5mm pitch and high-quality contacts enable secure connections in tight spaces, reducing vibration movement with integrated mounting clips.
TE CONNECTIVITY 223362316 Power Connector Specifications:
- Connector Type: Housing
- Connector & Housing Type: Cap
- Connector System: Wire-to-Wire
- Number of Positions: 6
- Centerline (Pitch): 5mm [.197 in]
- Sealable: Yes, with optional TPA and back covers
- Operating Voltage: Up to 600 VAC/DC
- Current Rating: Up to 15A
- Housing Material: PBT GF
- Housing Color: Gray
- Flammability Rating: UL 94V-0
- Temperature Range: -30 to 140 °C [-22 to 284 °F]
- Seal Type: Interfacial Seal
- Contact Features: High reliability, high current capacity, male and female terminals
- Cable Exit Angle: Straight
- Dimensions: Row-to-Row Spacing 7.25 mm [.285 in], Panel Thickness up to 76 mm
- Mounting Features: Panel mount with locking clip
- Standards & Certifications: UL compliant, CE marked, RoHS, REACH
- Compatibility: Supports power applications in industrial, automotive, and automation systems
Buy the Buy TE Power Versa-Lock Part Number 2-2336231 Online
Purchase the TE Power Versa-Lock Power Connector online today for robust, sealed, and reliable connections in demanding environments. With IP67 protection and a convenient twist-and-lock design, this versatile connector is suitable for refrigeration, industrial automation, lighting, and automotive systems. Its compact 5mm pitch supports high current up to 15A and voltage up to 600VAC, ensuring safety and durability. Easy to install with optional TPA and back covers, it provides excellent sealing, vibration resistance, and compliance with UL and RoHS standards. Upgrade your power connections with confidence.
Buy TE Power Versa-Lock 2-2336231 now and experience unmatched reliability and performance for high-power, outdoor, and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223362316?
You can click on the BUY or RFQ button to purchase 223362316 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223362316?
You can download the 223362316 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223362316?
TE CONNECTIVITY
