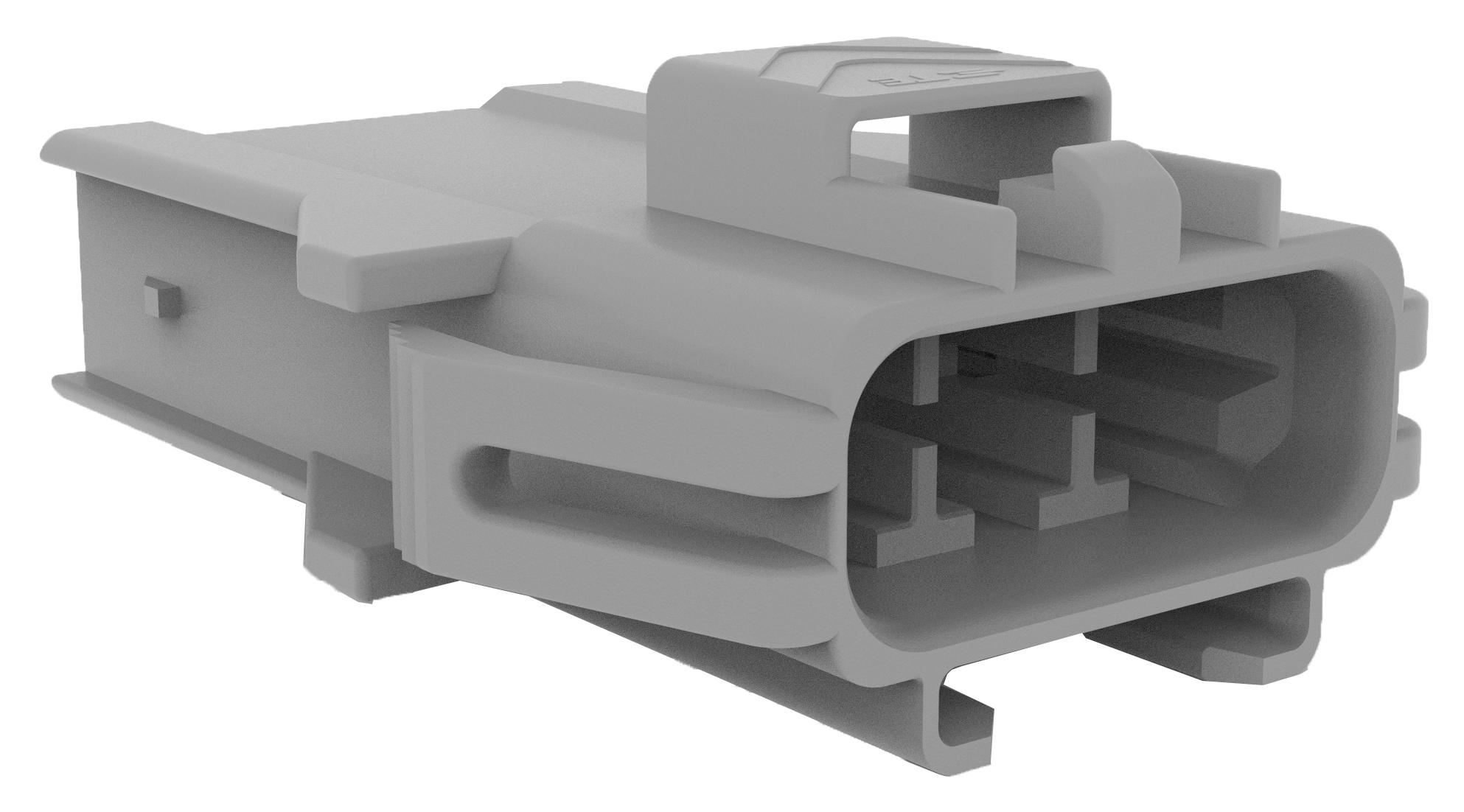

TE CONNECTIVITY 223781583 Power Connector
The Power Versa-Lock connector system provides a durable, IP67-rated wire-to-wire power and signal connection solution ideal for outdoor and industrial environments. Featuring a 5mm [.197 in] centerline pitch, the system includes a lockable, sealable housing and cap with perimeter seals for enhanced moisture resistance. The compact design supports up to 15A and 600VAC, suitable for appliances, automation, lighting, automotive, and robotics. Compliant with UL 94V-0 safety standards, it includes features like reliable contact systems, mounting clips for vibration resistance, and optional covers for versatile applications.
TE CONNECTIVITY 223781583 Power Connector Specifications:
- Connector Type: Housing and Cap
- Number of Positions: 3
- Centerline (Pitch): 5mm [.197 in]
- Operating Voltage: 600 V AC/DC
- Current Rating: Up to 15A
- Material: PBT GF
- Color: Gray
- Sealed: Perimeter seal, interfacial seal
- Mounting: Panel mount with mounting clip
- Temperature Range: -30°C to 140°C
- Flammability Rating: UL 94V-0
- Designed for wire-to-wire connections with crimp termination
- Suitable for outdoor, industrial, and automation applications
- Compliance: UL, ENEC, RoHS, REACH
Buy the Buy TE Power Versa-Lock Part Number 2-23781 58-3 Online
Experience the superior reliability and safety of the TE Power Versa-Lock high-performance power connector with a 5mm pitch, sealed design, and UL safety standards. Perfect for indoor and outdoor use, industrial automation, harsh environments, and high-power applications up to 15A and 600VAC. Its compact, lockable housing with perimeter seals ensures moisture resistance and vibration durability, while the UL 94V-0 safety-rated materials guarantee safety compliance. Easily install with crimped wire terminations, making it a versatile choice for home appliances, robotics, lighting, and HVAC systems. Shop online now for fast delivery and dependable performance.
Order your TE Power Versa-Lock 5.0 part number 2-23781 58-3 today and ensure reliable, sealed power connections for industrial automation, outdoor, and high-power applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223781583?
You can click on the BUY or RFQ button to purchase 223781583 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223781583?
You can download the 223781583 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223781583?
TE CONNECTIVITY
