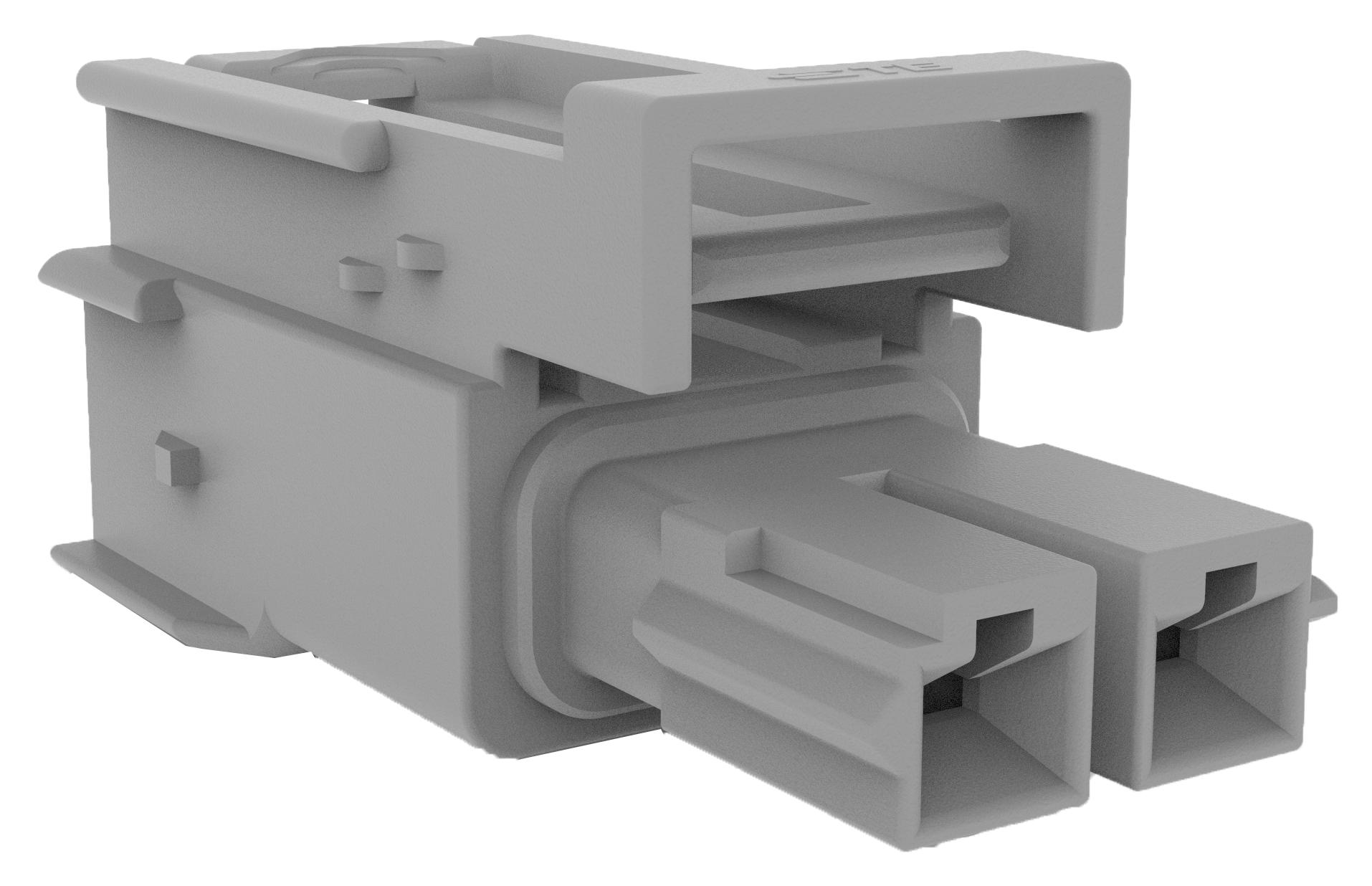

TE CONNECTIVITY 223781592 Power Connector
The Power Versa-Lock connector system offers high-performance wire-to-wire power and signal solutions with IP67 protection against water and dust. Featuring a twist and lock cap for moisture shedding, it includes options for sealed or unsealed configurations suitable for home appliances, industrial automation, lighting, and automotive sectors. The compact 5mm centerline allows space-efficient installations, handling up to 15A and 600VAC. Safety standards UL 94V-0 are met, with reliable connection and vibration-resistant mounting. Ideal for robotics, HVAC, and outdoor equipment, ensuring durability and safety in demanding environments.
TE CONNECTIVITY 223781592 Power Connector Specifications:
- Connector Type: Housing, Plug
- Connector System: Wire-to-Wire
- Number of Positions: 2
- Centerline (Pitch): 5mm [.197in]
- Sealable: Yes, with optional TPA and back covers
- Housing Material: PBT GF
- Housing Color: Gray
- Operating Temperature Range: -30°C to 140°C [-22°F to 284°F]
- Voltage Rating: 600 VDC
- Current Capacity: 15A
- Flammability Rating: UL 94V-0
- Sealing Features: Interfacial Seal
- Compliance: UL E28476, IP67 rated
- Cable Exit Angle: Straight
- Applicable Industry Standards: UL
- Connector & Contact Termination: Crimp
- Housing Features: Locking mechanism, vibration-resistant mounting
- Temperature Range: -30°C to 140°C
- Protection Class: IP67
- Material: PBT GF
Buy the TE Series Versa-Lock Power: 2-Position Housing Plug Part 223781592
Purchase the TE Series Versa-Lock Power Connector with 2 positions and 5mm pitch online today. Designed for high-current, outdoor, and industrial applications, it offers IP67 protection against water and dust, UL 94V-0 safety compliance, and a reliable twist and lock mechanism. Its compact size supports space-efficient installations in automation, lighting, HVAC, and outdoor equipment. With crimp termination and vibration-resistant features, this connector ensures safe operation and durability in demanding environments. Get quality, safety, and performance in your applications now!
Order your TE Series Versa-Lock 2-Position Power Connector with 5mm pitch today and ensure high-performance, durable power solutions for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223781592?
You can click on the BUY or RFQ button to purchase 223781592 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223781592?
You can download the 223781592 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223781592?
TE CONNECTIVITY
