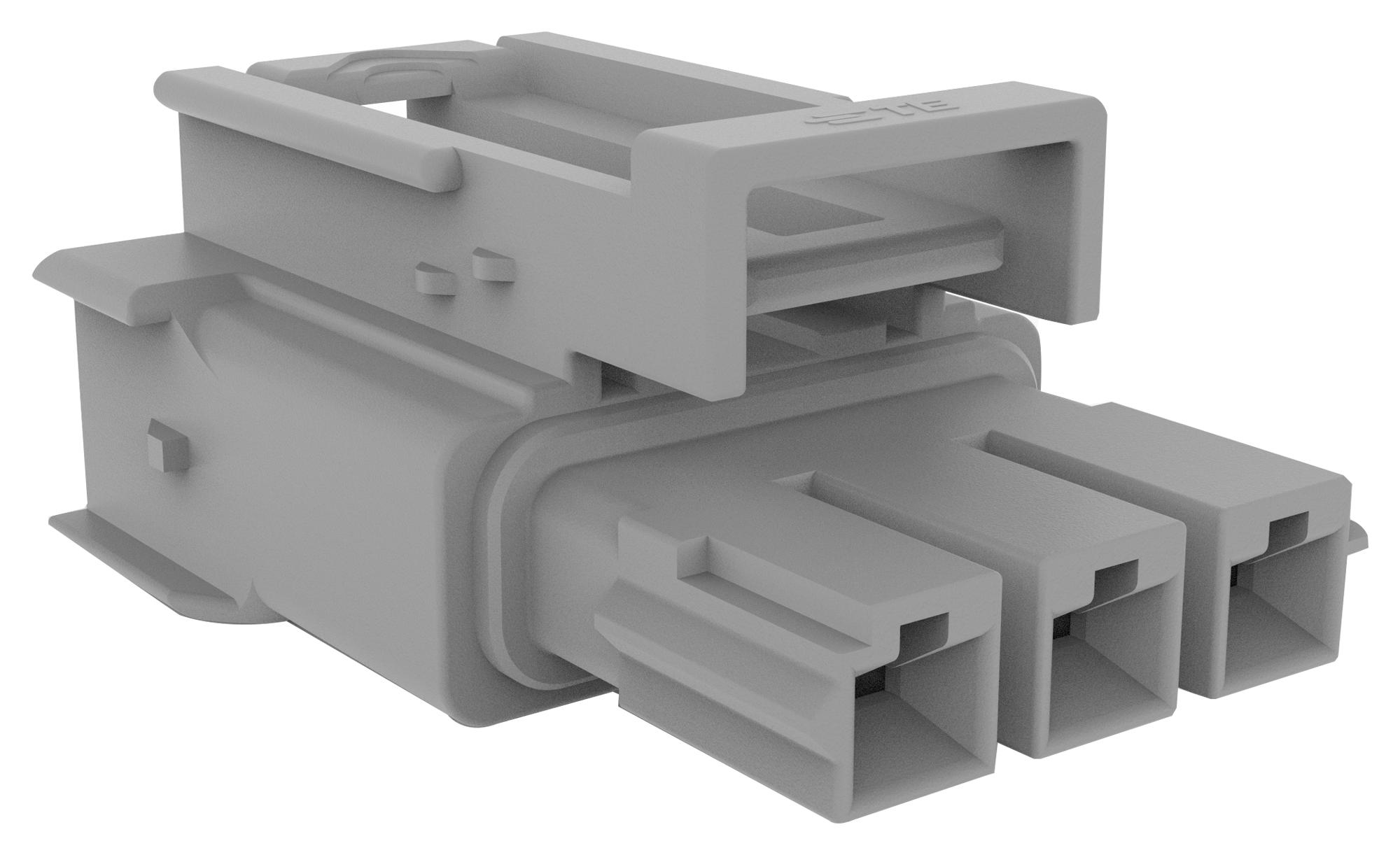

TE CONNECTIVITY 223781593 Power Connector
The Power Versa-Lock connector system offers a high-performance, wire-to-wire power and signal connection solution, ideal for harsh environments. It features IP67 rated protection against water and dust, a patented twist-and-lock cap for moisture drainage, and optional sealing covers for enhanced durability. Suitable for industrial, automotive, and home appliance applications, it supports up to 15A and 600VAC, with UL 94V-0 safety standards. Its 5mm centerline design saves space, with high-reliability contact systems and mounting clips for vibration resistance. Perfect for outdoor lighting, refrigeration, robotics, and HVAC systems, ensuring secure and durable connections under demanding conditions.
TE CONNECTIVITY 223781593 Power Connector Specifications:
- Connector Type: Housing
- Connector & Housing Type: Plug
- Connector System: Wire-to-Wire
- Number of Positions: 3
- Centerline (Pitch): 5mm [.197 in]
- Seal Type: Interfacial Seal
- Housing Material: PBT GF
- Housing Color: Gray
- Operating Voltage: 600 VDC
- Operating Temperature Range: -30 to 140°C [-22 to 284°F]
- Flammability Rating: UL 94V-0
- Certification: UL E28476
- Cable Exit Angle: Straight
- Maximum Current: 15A
- Supports Use With: Power and signal applications in harsh environments
- UL Flammability: UL 94-V0
- Agency Standards: UL, CE compliant
- Material: PBT GF, gray color
- Sealing: Interfacial seal for moisture protection
- Vibration Resistance: Mounting clip included
Buy the TE Series Power Versa-Lock Power Connector: 223781593
Discover the high-performance Power Versa-Lock connector system, designed for harsh environments with IP67 protection. Its 5mm pitch, high current capacity of 15A, and 600VAC support make it suitable for industrial, automotive, and outdoor lighting applications. With UL 94V-0 safety standards, moisture-resistant interfacial sealing, and efficient space-saving design, this connector ensures secure, durable connections. Ideal for refrigeration, robotics, HVAC, and more, it offers easy mating and vibration resistance, delivering dependable power transmission in demanding conditions.
Get TE Power Versa-Lock 5.0 connector today—built for reliable power delivery and durability in demanding industrial and outdoor environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223781593?
You can click on the BUY or RFQ button to purchase 223781593 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223781593?
You can download the 223781593 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223781593?
TE CONNECTIVITY
