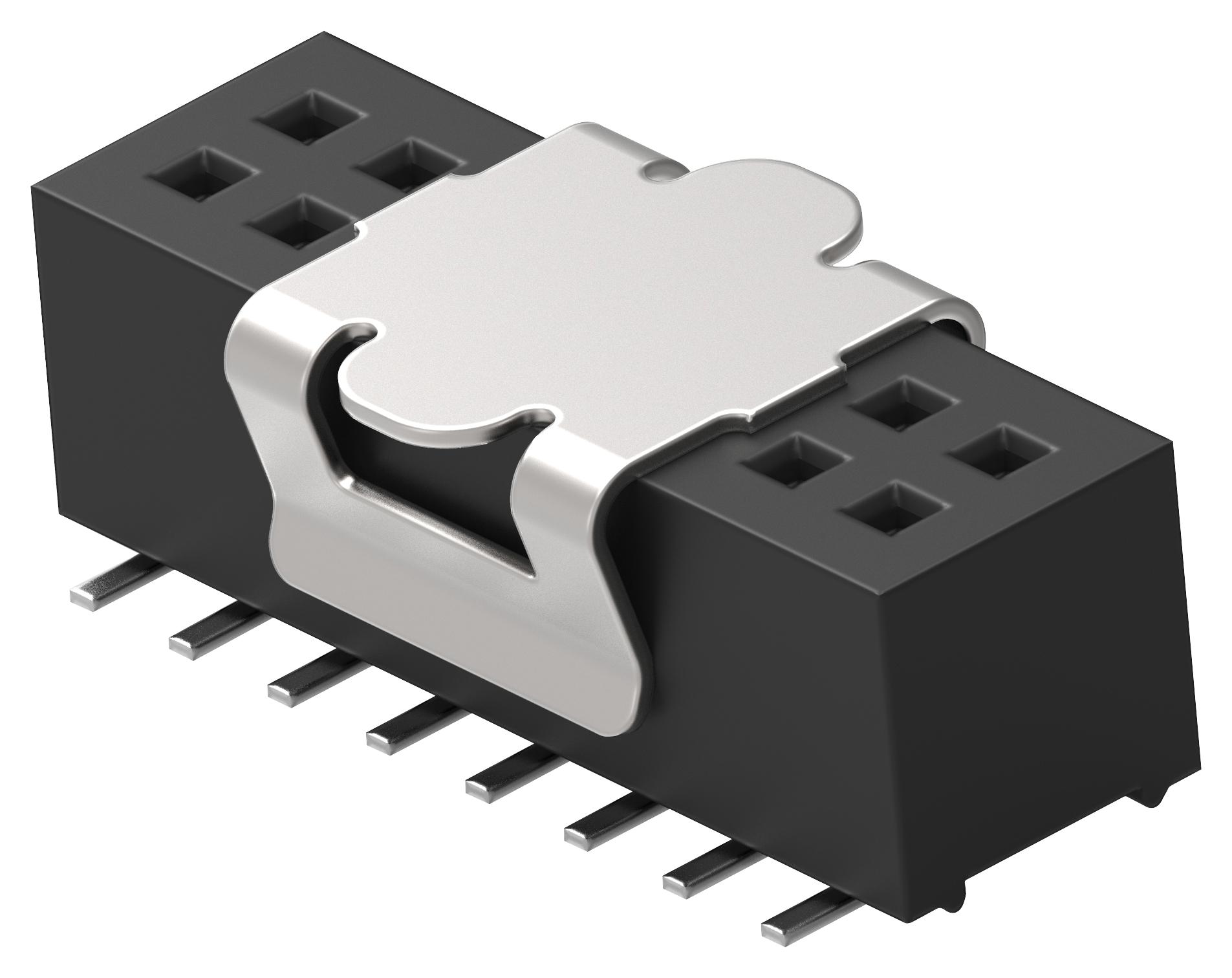

TE CONNECTIVITY 22674658 Interconnection Connector
The TE Connectivity AMPMODU Small Centerline Interconnection System features a compact 1.0 mm pitch connector, offering 85% space savings compared to standard 2.54 mm connectors. It provides reliable dual-beam contacts for secure electrical connections even under shock and vibration. Designed for automated surface mounting, it supports a broad range of applications including industrial controls, automation, telecommunication, robotics, and instrumentation. Made from high-temp thermoplastic with gold flash plating, it ensures longevity, corrosion resistance, and easy integration into dense electronic assemblies.
TE CONNECTIVITY 22674658 Interconnection Connector Specifications:
- Centerline: 1.0 mm [0.0394"]
- Housing Material: high-temperature thermoplastic (LCP)
- Mounting Style: surface mount
- Header/Receptacle Contact Material: copper alloy
- Plating Options: 30” [0.76 um] gold flash
- Receptacle Entry: dual entry
- Operating Temperature: -55°C to +125°C
- Electrical Ratings: UL recognized at 1.0A, CSA recognized at 0.8A, operating voltage 30VAC
- Dielectric Withstanding Voltage: 300VAC
- Soldering: re-flow capable up to 260°C
- Packaging: tubes with pick & place caps
- Conductors: 5-100 per row, double row
- Vibration Resilience: no electrical discontinuity >1 microsecond under vibration testing
Buy the Buy TE Connectivity AMPMODU Small Centerline Part Number 22674658 Online
Purchase the TE Connectivity AMPMODU Small Centerline Interconnection System online today. This compact, reliable connector with 1.0 mm pitch offers excellent space savings and robust dual-beam contact design suitable for automation, industrial controls, robotics, and telecommunication devices. It features high-temperature thermoplastic housing, gold flash plating for corrosion resistance, and re-flow capability at up to 260°C. Ideal for dense electronic assemblies requiring high reliability, it ensures secure connections and fast assembly in automated production environments.
Get TE Connectivity 22674658 today—designed for high-density applications with reliable dual-beam contacts and easy surface mount installation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 22674658?
You can click on the BUY or RFQ button to purchase 22674658 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 22674658?
You can download the 22674658 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 22674658?
TE CONNECTIVITY
