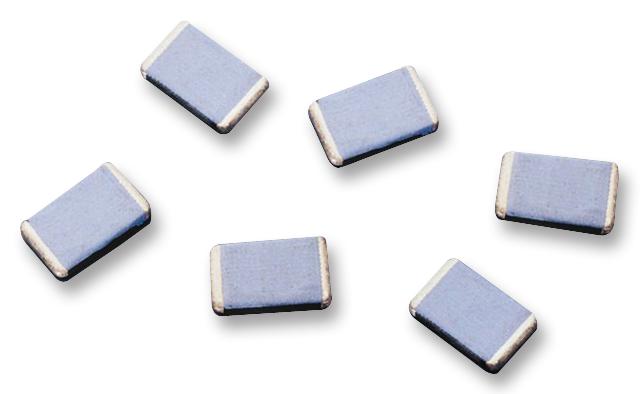

TE CONNECTIVITY RN73C2A301RBTDF Thin Film Precision Resistor
The RN73 series consists of high stability thin film precision resistors designed for applications requiring excellent accuracy, stability, and low TCRs down to 5ppm/°C. Manufactured with sputtered nichrome layers, these resistors feature resistance tolerances as tight as 0.01% and power dissipations up to 0.5W across multiple sizes including 0402, 0603, 0805, 1206, 1210, 2010, and 2512. Ideal for communication, industrial control, instrumentation, and medical devices, they offer precise performance under a wide operating temperature range of -55°C to +155°C. Robust construction ensures high insulation resistance and stability ensuring reliable operation in demanding environments.
TE CONNECTIVITY RN73C2A301RBTDF Thin Film Precision Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @ 70°C: 0.063W (0402 to 0603), 0.125W (0805, 1206), 0.25W (2010), 0.5W (2512)
- Resistance Range: up to 521KΩ depending on size and series (E24 & E96)
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- TCR: 5ppm/°C to 10ppm/°C depending on series
- Max Operating Voltage: 25V to 150V depending on size
- Max Overload Voltage: 50V to 300V depending on size
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: ≥59999MΩ (dry min.)
- Stability: ±0.05%
- Construction: Nichrome sputtered film with alumina substrate, tin-plated external electrodes
- Environmental Resilience: MIL-STD-202 tested for overload, insulation, durability, heat, damp heat, solderability, and thermal shock
- Packaging: Tape and reel; sizes 0402 to 2512 with specified peel forces and orientation for automated assembly
Buy the Buy Connectivity SeriesRN73 Part Number RN73C2A301RBTDF Online
Enhance your electronic assemblies with our high-precision thin film resistors. Featuring resistance tolerances as tight as 0.01% and TCRs down to 5ppm/°C, these resistors provide excellent stability across a wide temperature range. Available in sizes from 0402 to 2512, they are ideal for communication, control, instrumentation, and medical applications. Trust our resistors for reliable, durable, and precise performance in demanding environments. Order online now to get fast delivery and professional support, ensuring your designs meet the highest standards of quality and stability.
Order your Connectivity seriesRN73 precision resistor today and ensure your electronic projects benefit from exceptional accuracy and stability in high-performance environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A301RBTDF?
You can click on the BUY or RFQ button to purchase RN73C2A301RBTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A301RBTDF?
You can download the RN73C2A301RBTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A301RBTDF?
TE CONNECTIVITY
