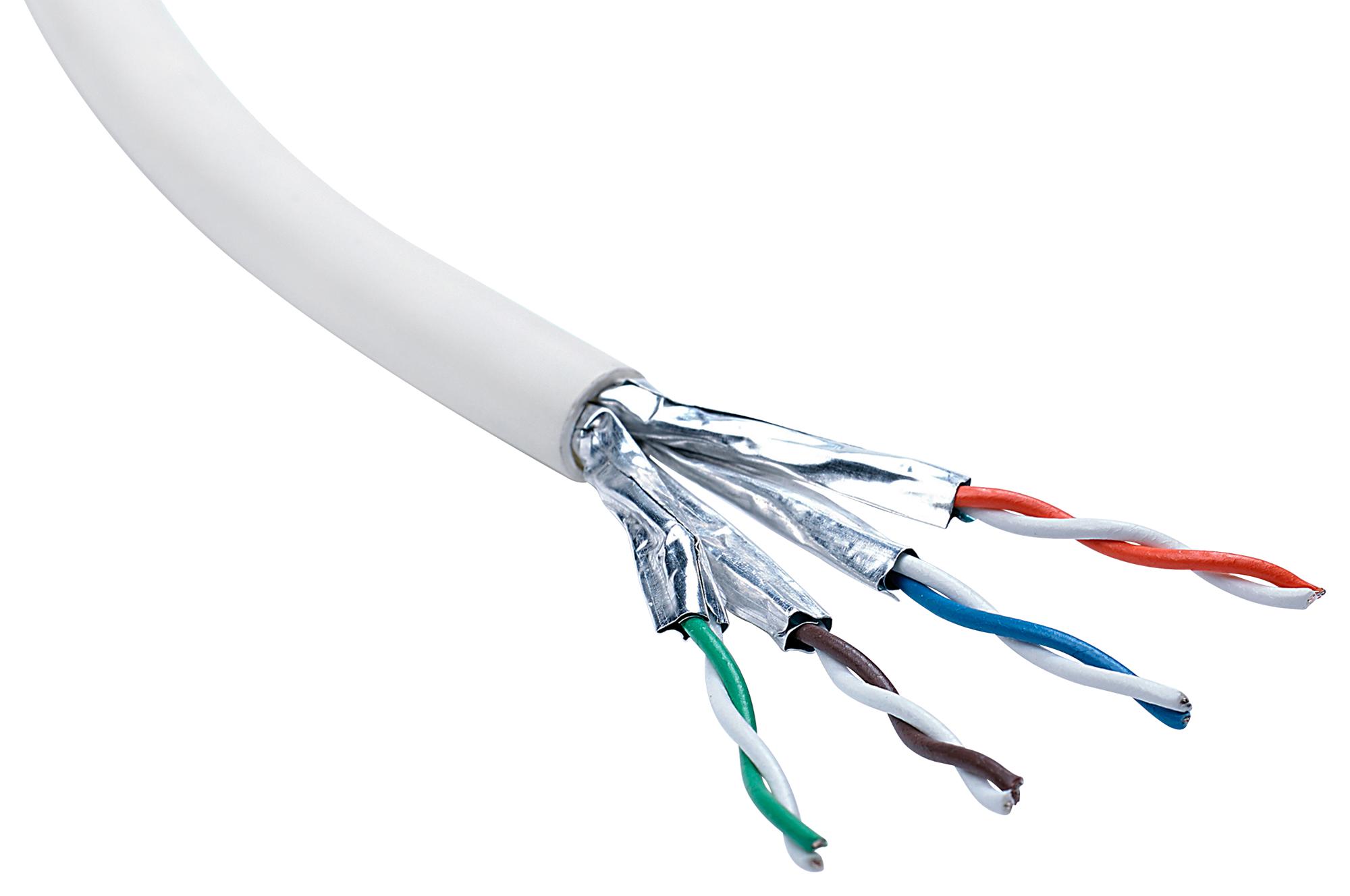

TE CONNECTIVITY 22949621 Four Pair 26AWG S/FTP PVC CAT5e
The TE Connectivity 2294962-1 is a robust communication cable designed for a wide range of applications including 100BASE-T4, 100BASE-TX, 100VG-AnyLAN, 1000Base-T, and 1 Gb Ethernet. It features a stranded tinned copper conductor, color-coded insulation, PVC jacket, and S/FTP shielding for enhanced signal integrity and protection against electromagnetic interference. The cable is constructed with four pairs of conductors and meets key industry standards like ANSI/TIA 568C-2.1 and EN 50173-6, making it suitable for demanding network environments. It is designed to operate within a temperature range of -40°C to +80°C.
TE CONNECTIVITY 22949621 Four Pair 26AWG S/FTP PVC CAT5e Specifications:
- Application: 100BASE-T4, 100BASE-TX, 100VG-AnyLAN, 1000Base-T, 1000Base-TX, 155Mbps ATM, 622Mbps ATM, 1 Gb Ethernet
- Rated temperature: 80°C
- Reference Standard: ANSI/TIA 568C-2.1, EN 50173-6, IEC 11801
- Flammability Rating: IEC 60332-2-1
- UV Resistance: EN 50289-4-17
- Conductor material: Stranded Annealed Cooper
- Conductor dimension: 7 / 0.16mm
- Insulation material: Polyolefin
- Insulation dimension: 0.98 ± 0.05 mm
- Nominal Insulation Thickness: 0.22 mm
- Twisting lay length: ≤ 30 mm
- Cabling laylength: ≤ 200 mm
- Individual shield & material: AL-Foil
- Primary overall shield & material: Stranded Tinned Copper
- Shield nom. Coverage: 65% Min.
- Drainwire: 7 / 0.16 mm
- Outer Jacket material: PVC
- Outer Jacket Thickness (mm): 0.80 mm Nom.
- Overall Nom Dimension (mm): 6.80 ±0.3 mm
- Outer Jacket Rip cord: N/A
- Outer Jacket Colour: Per Customer Request
- Storage Temp Range: -40°C to +80°C
- Operating Temp Range: -20°C to +80°C
- Bulk Cable weight: 47kg/km
- Max. recommended pulling tension: 100 N
- Min. bend radius (Install): 10 x O.D.
- Heat Ageing: IEC 60811-402
- Cold Bend: IEC 60811-504
- Heat Shock: IEC 60811-509
- Nom. mutual capacitance: ≦56 pF/m (@1kHz)
- Conductor DCR: ≦14.5Ω/100m
- Max. operating voltage - UL: 300 V
- Impedance: 100±15 Ω
- Frequency: 1-62.5 MHz
- PSNEXT (dB Min): 20.0
- PSACR (dB Min): 39.9
