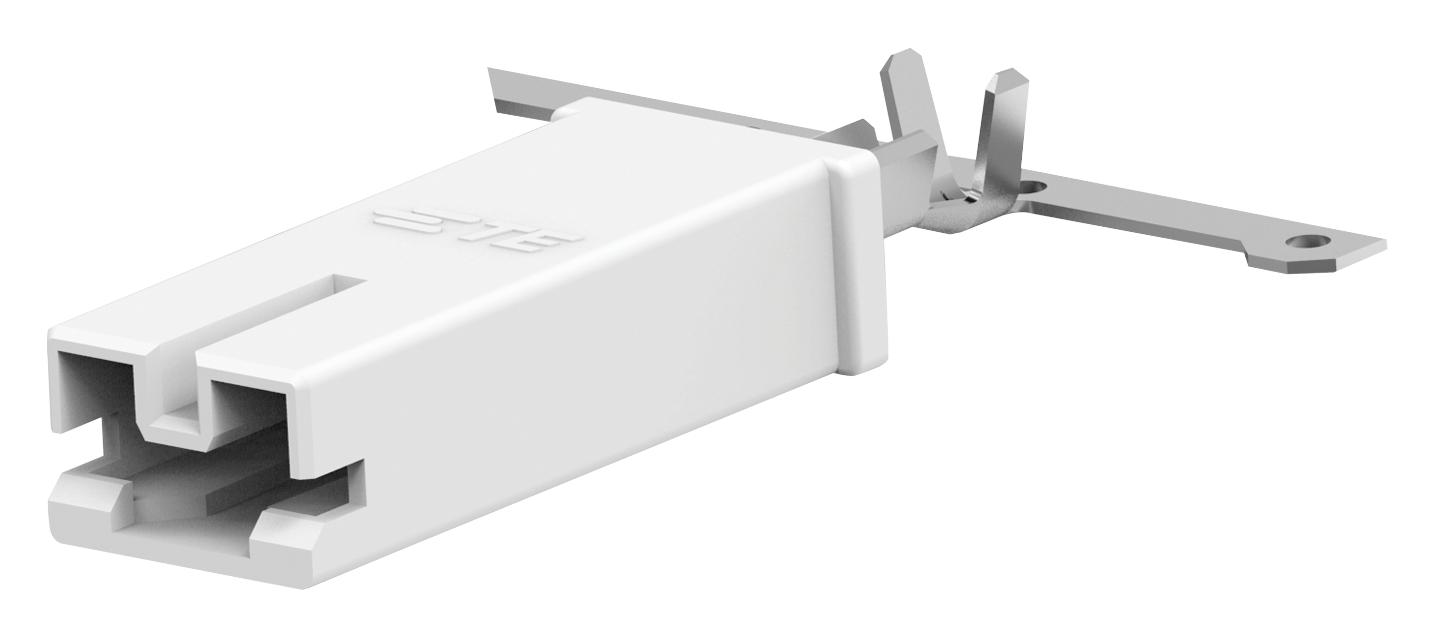

TE CONNECTIVITY 22992821 Pre-Insulated POD-LOK Receptacle
TE Connectivity's POD-LOK receptacles provide a quick disconnect solution with significant applied cost savings. The pre-insulated design combines a Positive Lock receptacle with a robust housing, offering low insertion force, a locking feature for secure connections, and insulation to prevent shock hazards. Suitable for power cord, water valve, appliance, HVAC, and vending machine applications, these receptacles are designed for automated assembly and easy maintenance.
TE CONNECTIVITY 22992821 Pre-Insulated POD-LOK Receptacle Specifications:
- Material: Contact: Pre tin-plated brass, Housing: Nylon 6/66
- Voltage: 600 VAC
- Continuous Current: 3-20A (dependent upon wire size)
- Operating Temperature: -40 to 105°C
- Flammability: GWT 750°C, UL 94 V-0
- Contact Insertion Force: 27N (6.07 lbs) max
- Contact Retention Force: 89N (20 lbs) min (1st extraction)
- Wire Size: 22-18 AWG
- Insulation Diameter: 0.09-.11 in (0.32-.82 mm2)
- Mating Tab Size: 0.250 x 0.032 in (6.3 x .8 mm)
- Stock Thickness: 0.0157 in (0.4 mm)
- Applicator Part Number: 1855703
