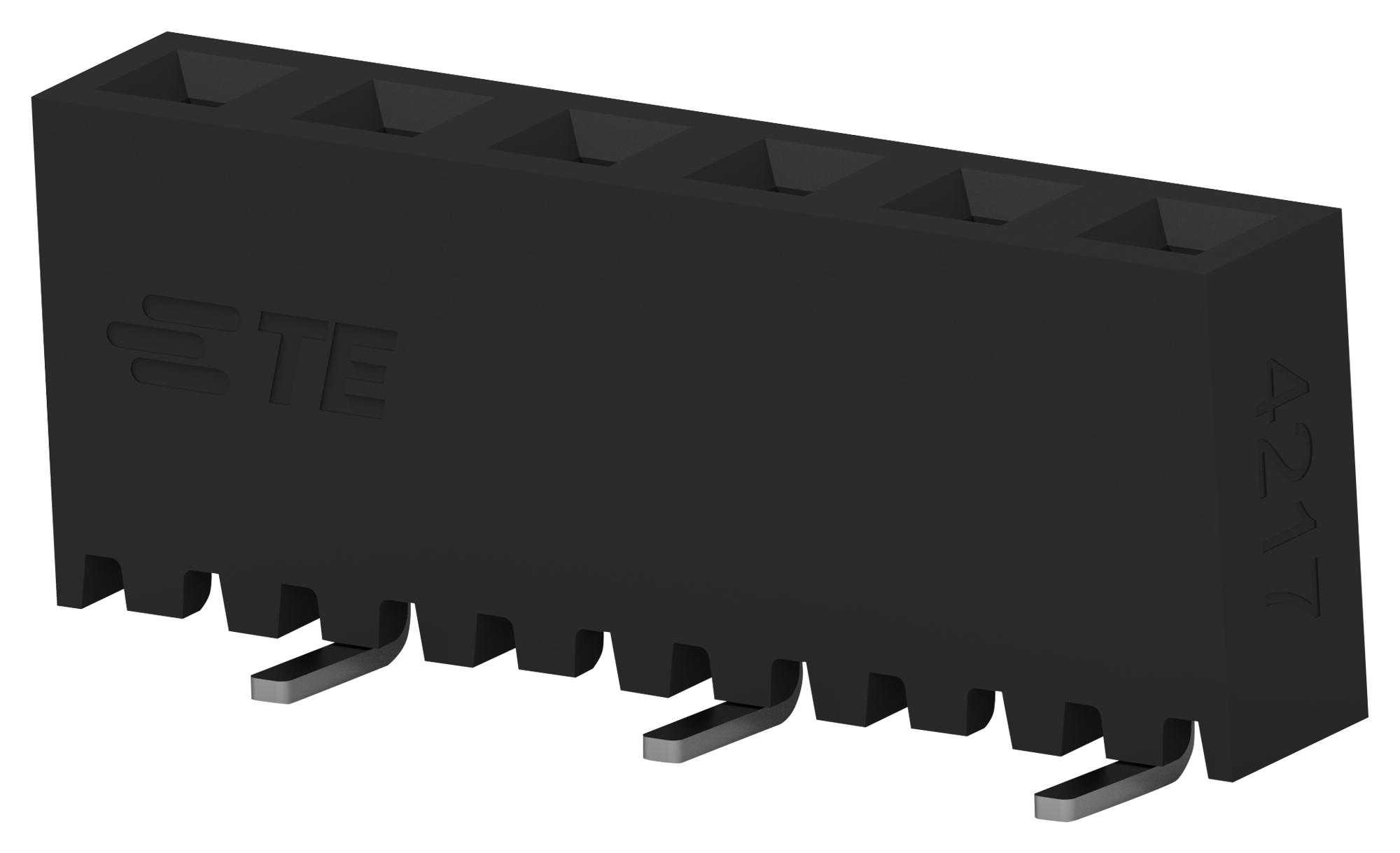

TE CONNECTIVITY 23078136 2mm Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles are designed for reliable interconnection in a variety of industrial applications. Featuring phosphor bronze contacts with dual cantilever beams and a high-temperature-resistant LCP plastic housing, these receptacles offer increased contact surface area and are suitable for automated surface-mount and through-hole manufacturing processes. They occupy 38% less space on the PCB compared to 2.54mm centerline connectors, enabling extended functionality. Available in multiple positions and plating options, these receptacles are ideal for PLC, servo drives, industrial controls, and instrumentation applications.
TE CONNECTIVITY 23078136 2mm Board-to-Board Receptacle Specifications:
- Centerline: 2.00mm [0.079"]
- Contact Type: Dual beam receptacle
- Entry Type: Top- and dual-entry vertical and horizontal
- Mounting Type: Surface-mount and through-hole
- Solder Tail Lengths: 1.6mm to 2.4mm [0.063" to 0.094"]
- Positions per Row: Up to 25
- Packaging: Tube, tape and reel
- Environmental: UL94V0, halogen free / low halogen
- Operating Temperature: -40°C to 125°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- Reflow Solder Temperature: Capable to 260°C
- Plating Options: 30 μ " [0.76 μ m] Gold, 15 μ ” [0.38 μ m] Gold, 4 μ '' [0.1 μ m] Gold
- Contact Material: Phosphor Bronze
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Certifications: UL Certified, VDE Approval Pending
- Product Specification: 108-64040
- Application Specification: 114-32186
Buy the 2307813-6 TE CONNECTIVITY 2mm Board-to-Board Receptacle | myMectronic
Purchase the TE Connectivity 2307813-6 2mm Board-to-Board Receptacle securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23078136?
You can click on the BUY or RFQ button to purchase 23078136 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23078136?
You can download the 23078136 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23078136?
TE CONNECTIVITY
