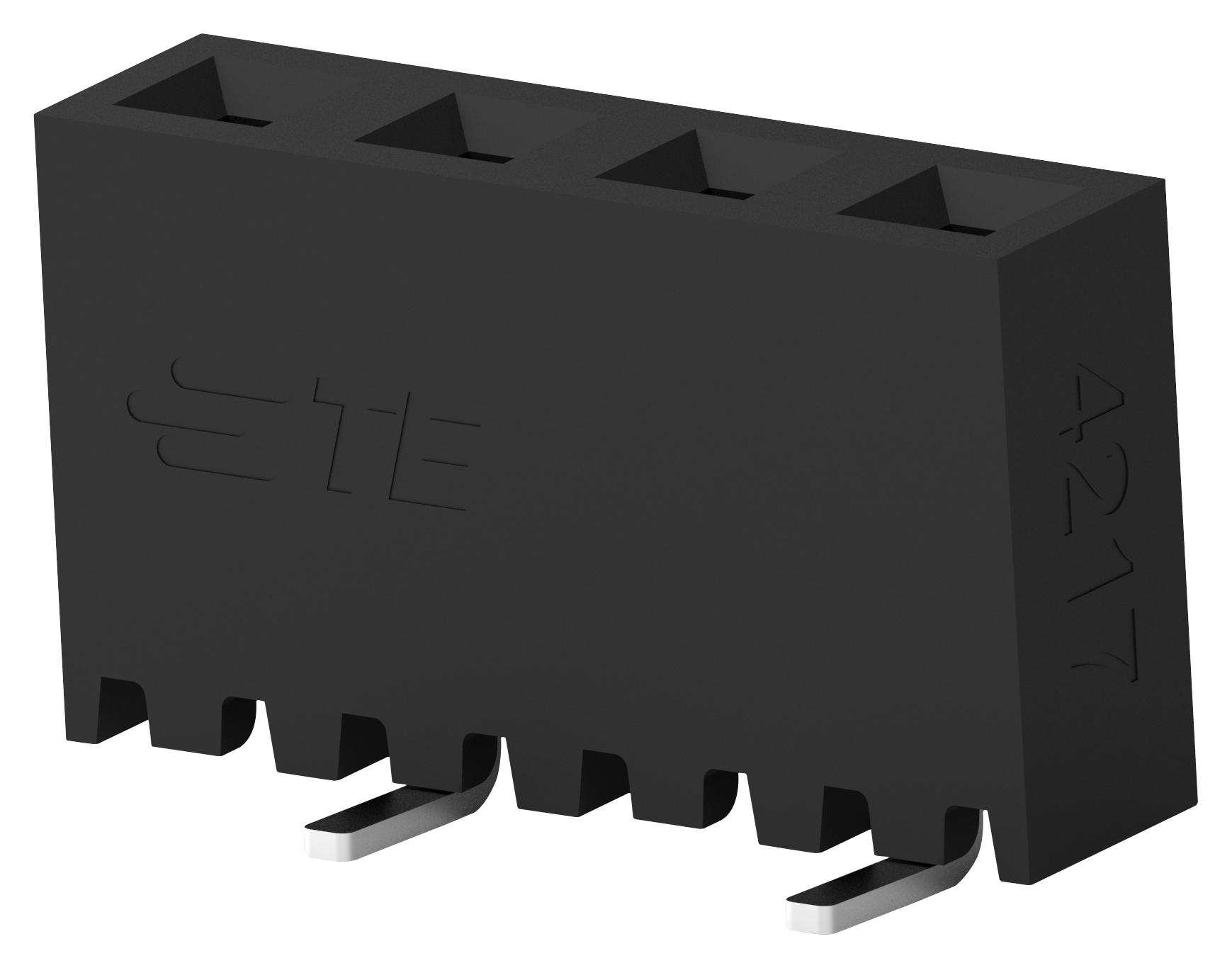

TE CONNECTIVITY 23078154 2mm Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles provide a compact and reliable solution for connecting boards. The phosphor bronze contacts with dual cantilever beams ensure increased contact surface area and reliable signal transfer. Constructed with high-temperature liquid crystal polymer (LCP) plastic, these receptacles are suitable for automated surface-mount, through-hole-reflow, and traditional through-hole mount processes. They are ideal for applications requiring Board-to-Board stacking and offer various top- and dual-entry vertical and horizontal configurations.
TE CONNECTIVITY 23078154 2mm Board-to-Board Receptacle Specifications:
- Centerline: 2.00mm [0.079"]
- Contact Material: Phosphor Bronze
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Plating Options: 30 μ " [0.76 μ m] Gold, 15 μ ” [0.38 μ m] Gold, 4 μ '' [0.1 μ m] Gold
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- Reflow Solder Temperature: Capable to 260°C
- RoHS Compliant: Yes
- Application Specification: 114-32186
- Product Specification: 108-64040
Buy the 2307815-4 TE CONNECTIVITY 2mm Board-to-Board Receptacle | myMectronic
Purchase the TE Connectivity 2307815-4 2mm Board-to-Board Receptacle securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23078154?
You can click on the BUY or RFQ button to purchase 23078154 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23078154?
You can download the 23078154 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23078154?
TE CONNECTIVITY
