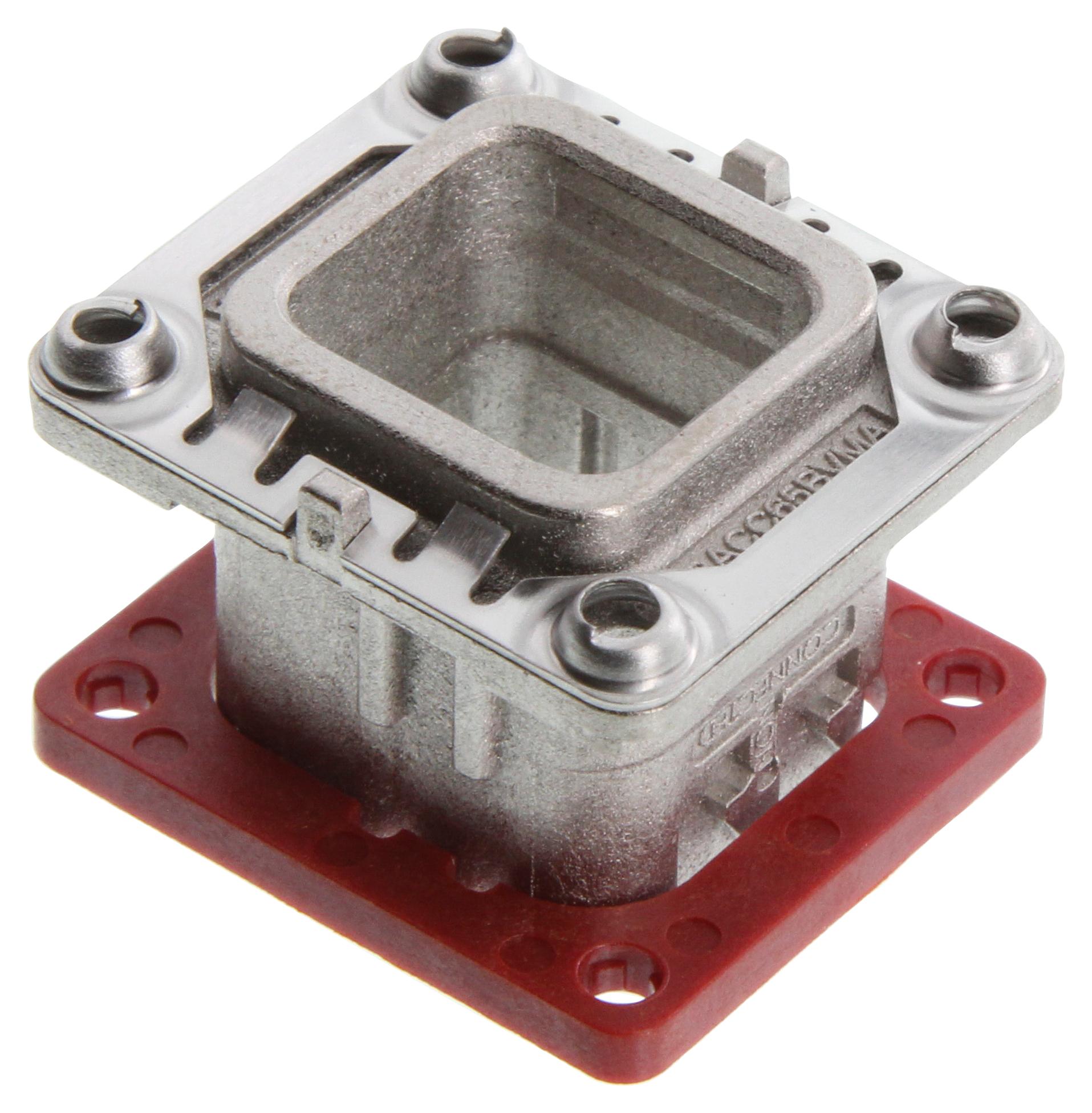

TE CONNECTIVITY DMCMD24AKT Aerospace Modular Connector
Deutsch DMC-MD series connectors are modular, reliable, and lightweight solutions designed for aircraft in-flight entertainment and cabin systems. These connectors support various modules and accessories, ensuring flexible configuration, quick installation, and compliance with standards like EN4165, ARINC 809, and BACC65. Made with durable composite housings and gold-plated contacts, they provide high temperature resistance, vibration durability, and EMI shielding. Suitable for aerospace, defense, and marine applications, these connectors facilitate secure, efficient, and modular wiring in complex aerospace environments.
TE CONNECTIVITY DMCMD24AKT Aerospace Modular Connector Specifications:
- Housing: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +175°C
- Vibration Resistance: 20 g
- Durability: 500 mating cycles
- Salt Spray Resistance: 500 hours
- Interfacial Sealing: 1.1 x 10^7 bar
- Contact Resistance: 5000 MO
- Contact Current Ratings: Size 24: 3 A, Size 23: 5 A, Size 22: 5 A, Size 20: 75 A, Size 16: 13 A, Size 12: 23 A, Size 8: 46 A
- EMI Attenuation: 50 dB at 100 MHz, 45 dB at 200-300 MHz, 40 dB at 400 MHz, 35 dB at 800 MHz, 30 dB at 1000 MHz
- Physical Dimensions: Panel mounting cutout approx. 35.30 mm max., hole diameters 3.1 mm, recommended panel thickness 0.8 mm to 2 mm.
- Material: Housing – composite nickel-plated, contacts – copper alloy with gold plating
- Standards: EN4165, ARINC 809, BACC65
Buy the Deutsch DMC-24 U+2013 Reliable Aerospace Connectors for Industrial Applications
Enhance your aircraft wiring with our aerospace-grade modular connectors. Designed for quick assembly, exceptional durability, and high-temperature tolerance, these connectors meet strict industry standards like EN4165, ARINC 809, and BACC65. They offer flexible configuration options, EMI shielding, and long-lasting performance in demanding environments. Suitable for cabin systems, in-flight entertainment, and military aircraft, our connectors ensure secure, efficient, and modular connections that simplify maintenance and upgrades. Purchase online today for dependable aerospace connectivity solutions.
Order your Deutsch DMC-24 modular connector today and ensure your aircraft cabin systems have secure, modular, and reliable connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCMD24AKT?
You can click on the BUY or RFQ button to purchase DMCMD24AKT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCMD24AKT?
You can download the DMCMD24AKT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCMD24AKT?
TE CONNECTIVITY
