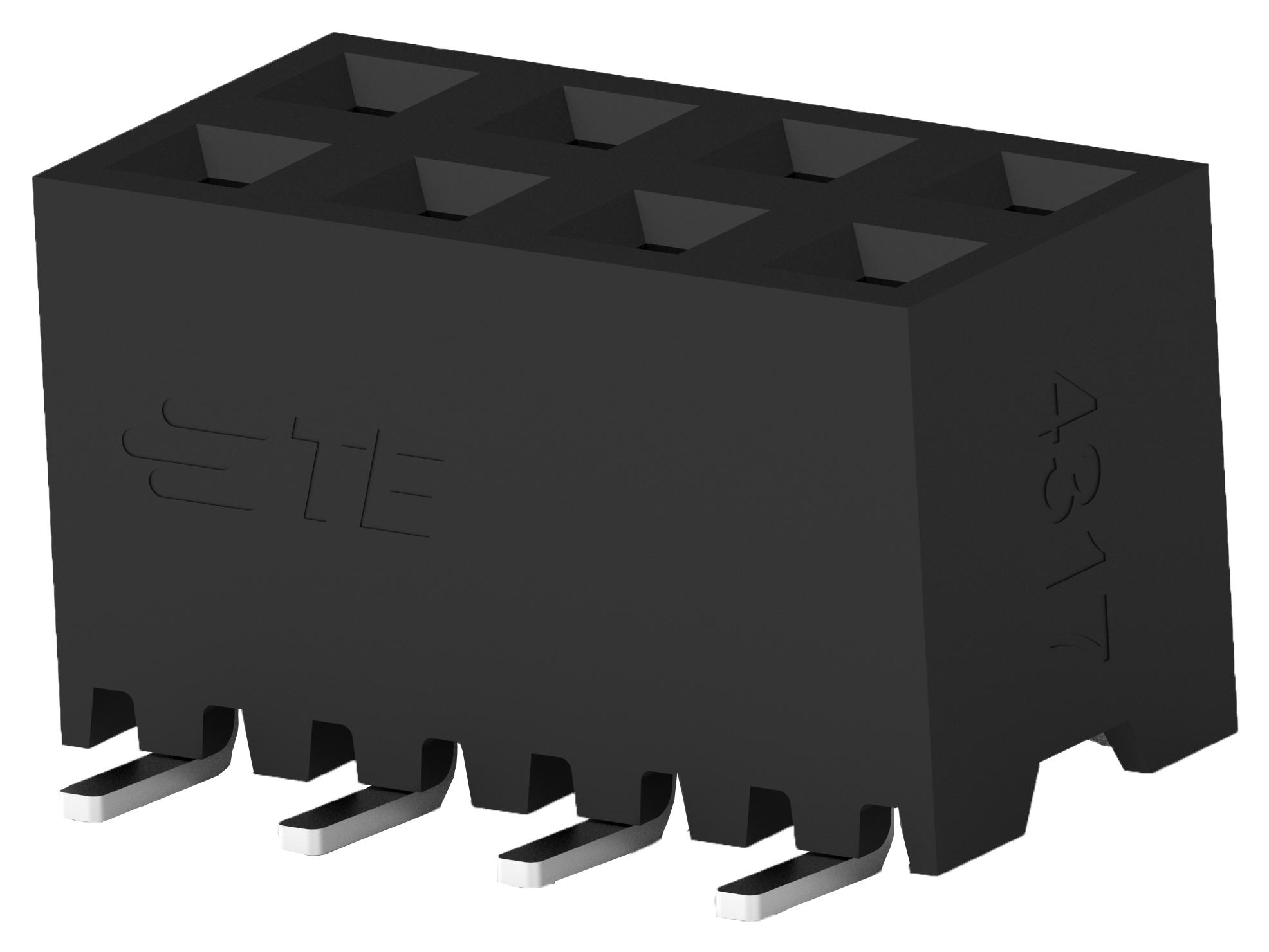

TE CONNECTIVITY 23148448 2mm Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board receptacles are designed for reliable signal transfer in a compact form factor. Utilizing phosphor bronze contacts with dual cantilever beams, these receptacles provide increased contact surface area. Housed in high-temperature liquid crystal polymer (LCP) plastic, they are suitable for automated manufacturing processes and offer various top- and dual-entry configurations for flexible board stacking. They are ideal for applications such as PLC, servo drives, and industrial controls.
TE CONNECTIVITY 23148448 2mm Board-to-Board Receptacle Specifications:
- Centerline: 2.00mm [0.079"]
- Contact Material: Phosphor Bronze
- Housing Material: High temperature plastic (LCP), UL 94V0, Black
- Plating Options: 30 μ " [0.76 μ m] Gold, 15 μ ” [0.38 μ m] Gold, 4 μ '' [0.1 μ m] Gold
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Vibration: No electrical discontinuity greater than 1 microsecond
- Reflow Solder Temperature: Capable to 260°C
- RoHS Compliant: Yes
- Application Specification: 114-32186
- Product Specification: 108-64040
