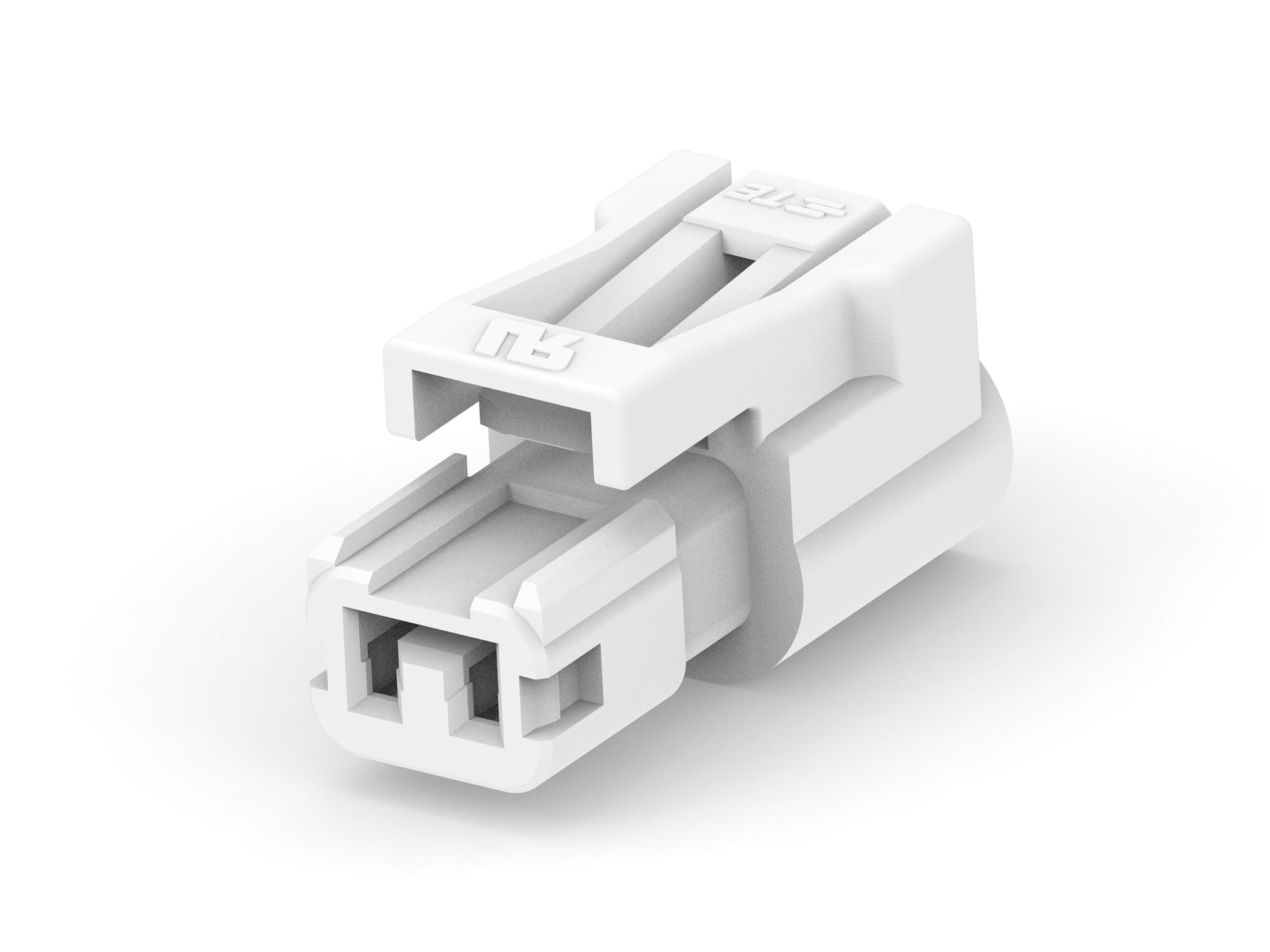

TE CONNECTIVITY 23219182 Sealed Signal Connector
The 2.5mm Sealed Signal Double Lock connector offers IP67 rated sealing, robust waterproof protection, and a compact 2.5mm centerline design ideal for small, water-sensitive applications. It features a snag-proof latch, polarized terminals, and optional TPA for easy assembly. Suitable for major home appliances, outdoor lighting, industrial equipment, and personal healthcare, it supports up to 3A and 250VAC ratings. Conforming to UL94-V0 and glow wire standards, the connector ensures safety, reliability, and efficient installation in harsh environments with excellent water and dust resistance.
TE CONNECTIVITY 23219182 Sealed Signal Connector Specifications:
- Waterproof rating: IP67
- Current Rating: 3A per line
- Voltage Rating: 250VAC
- Contact Pitch: 2.5mm
- Contact Wire Range: 26-20 AWG
- Material: UL94-V0 flame retardant plastic
- Seals: Perimeter seal for waterproof protection
- Standards: UL Recognized, Glow Wire Test (750°C)
- Connection Type: Receptacle and plug housings, panel mount and free hanging options
- Assembly Features: Snag-proof latch, polarized terminals, optional TPA
- Certifications: UL Recognized, compliant with global safety standards
Buy the TE Series 2.5mm Sealed Signal Double Lock Connectors: 23219182
Order the TE Connectivity 2.5mm Sealed Signal Connector online today and experience reliable waterproof sealing with IP67 rating, ensuring safe operation in water and dust-prone environments. Designed for easy assembly with snag-proof latch and polarized terminals, it's suitable for various applications like appliances, outdoor lighting, and industrial equipment. Support for up to 3A and 250VAC, along with UL94-V0 flame retardancy and glow wire compliance, makes this connector a top choice for safety, durability, and ease of installation in demanding conditions.
Get TE Connectivity 23219182 today—built for water-resistance and durable performance in harsh environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219182?
You can click on the BUY or RFQ button to purchase 23219182 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219182?
You can download the 23219182 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219182?
TE CONNECTIVITY
