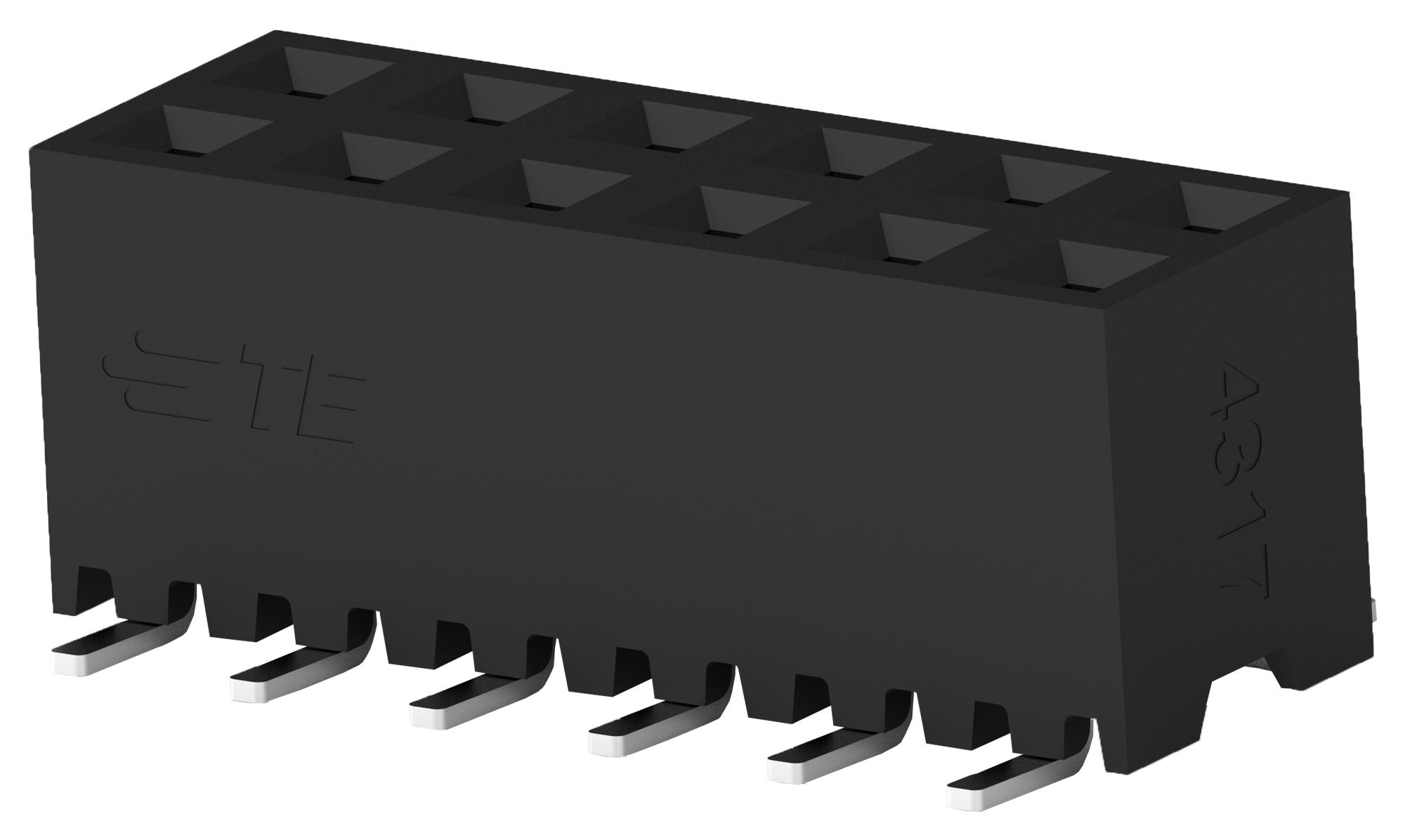

TE CONNECTIVITY 123148442 Board-to-Board Receptacle
TE Connectivity's AMPMODU 2mm Board-to-Board Receptacles are high-reliability connectors designed for compact electronic assemblies. Made with phosphor bronze contacts and available in multiple plating options, these receptacles feature a dual-beam contact design that ensures increased contact surface for dependable signal transfer. Housed in high-temperature-resistant LCP plastic, they support various mounting processes including surface-mount, through-hole, and pin-in-paste configurations. Suitable for industrial automation, PLCs, servo drives, and instrumentation, these connectors occupy less PCB space while delivering stable electrical performance up to 2A and 650VAC dielectric withstand voltage.
TE CONNECTIVITY 123148442 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contacts for increased reliability
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Material: Phosphor bronze contact, high-temperature LCP housing UL 94V0, black
- Plating Options: 30p" [0.76um], 15y" [0.38um], 4u" [0.1um] gold
- Reflow Solder Capable to 260°C
- RoHS & REACH compliant, UL certified
- Available in single and double-row configurations with 2-25 and 4-50 positions
Buy the Buy TE Connectivity AMPMODU 2mm Board-to-Board Part Number 123148442 Online
Secure your electronic assemblies with the TE Connectivity AMPMODU 2mm Board-to-Board Receptacles, designed for space-saving, reliable connectivity in automation, test equipment, and control systems. Engineered with dual-beam contacts and high-temperature plastic housing, these connectors support multiple mounting methods, including surface-mount and through-hole processes, ensuring versatile installation. With a current capacity of 2A and dielectric withstand of 650VAC, they provide stable, long-lasting electrical performance. Perfect for precision applications demanding space efficiency and dependable connections, purchase online now for fast delivery and top-quality performance!
Order your TE Connectivity Series123148442 reliable 2mm board-to-board receptacle today and ensure dependable connections in industrial automation projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 123148442?
You can click on the BUY or RFQ button to purchase 123148442 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 123148442?
You can download the 123148442 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 123148442?
TE CONNECTIVITY
