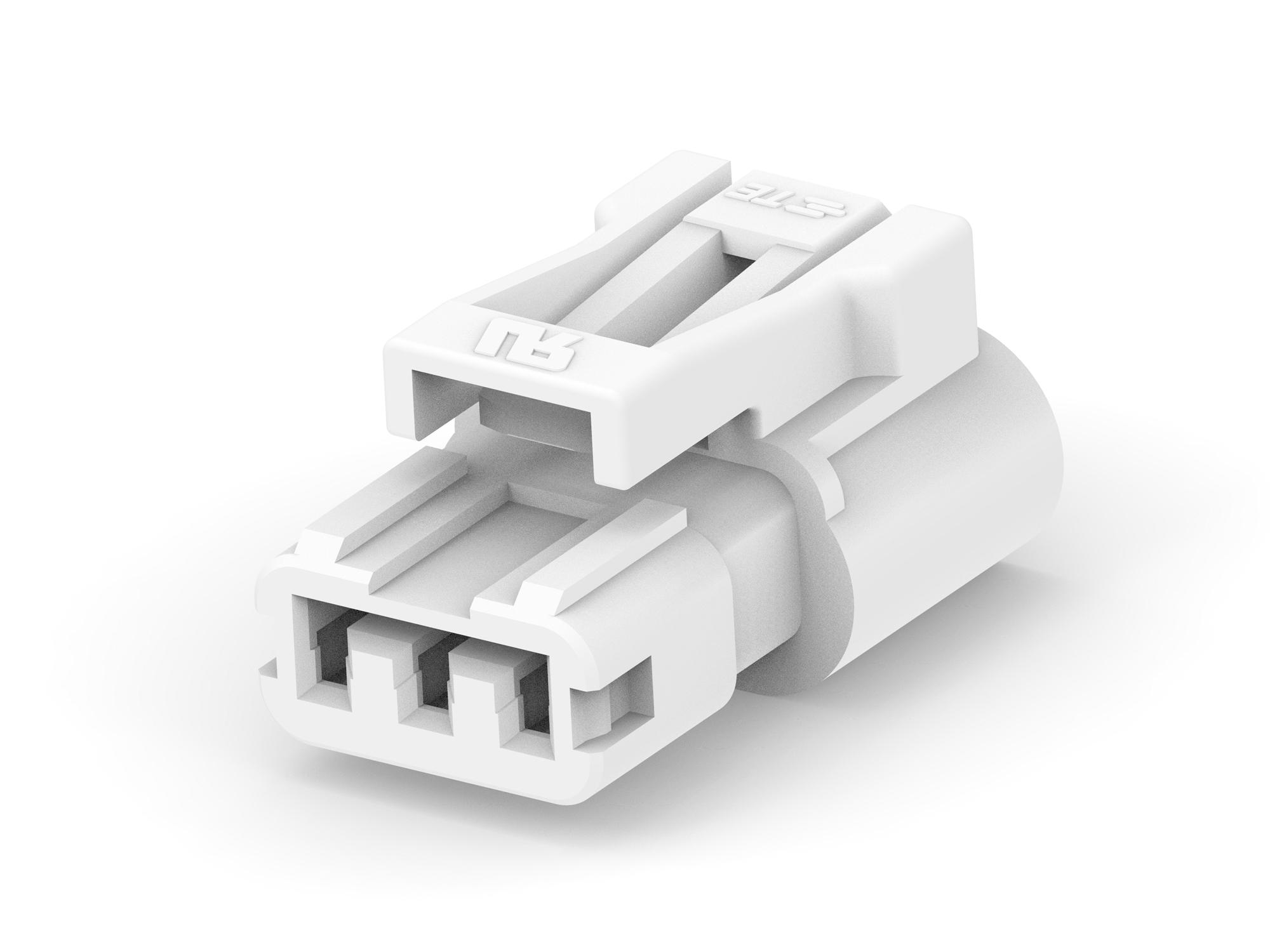

TE CONNECTIVITY 23219183 Sealed Signal Connector
The SDL2.5 plug housing offers IP67-rated sealing, ensuring reliable water and dust resistance for industrial, home, and outdoor applications. Designed with a compact 2.5mm centerline, it supports a maximum current of 3A and a voltage of up to 250VAC, making it suitable for refrigeration, lighting, power cords, and automotive uses. Made from UL94-V0 flame-retardant material, it passes glow wire tests at 750°C, meeting global safety standards. The housing integrates features like polarized terminals, snag-proof latch, and optional TPA for easy assembly and secure connections.
TE CONNECTIVITY 23219183 Sealed Signal Connector Specifications:
- Sealing Rating: IP67
- Maximum Current: 3A
- Voltage Rating: up to 250VAC
- Material: UL94-V0 flame retardant
- Flame Test: Glow Wire Test at 750°C (no flame)
- Centerline: 2.5mm
- Contacts: Accept 26-20 AWG wire
- Features: Polarized terminals, snag-proof latch, optional TPA
- Compliance: Meets global safety standards
Buy the Buy TE Connectivity 2.5MM Sealed Signal Double Lock Part Number 23219183 Online
Order the TE Connectivity 23219183 sealed signal connector housing today for reliable water and dust protection. Engineered with IP67-rated sealing, supporting up to 3A current and 250VAC voltage, it’s ideal for outdoor, industrial, and consumer applications. Made from UL94-V0 flame-retardant material and passing glow wire tests at 750°C, this connector offers safety and durability. Features include polarized terminals, a snag-proof latch, and optional TPA for secure, easy assembly. Perfect for water-resistant, safety-critical environments, ensuring long-lasting performance.
Get TE Connectivity 23219183 today—designed for water-resistant, flame-retardant industrial and home wiring solutions with ease of assembly.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219183?
You can click on the BUY or RFQ button to purchase 23219183 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219183?
You can download the 23219183 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219183?
TE CONNECTIVITY
