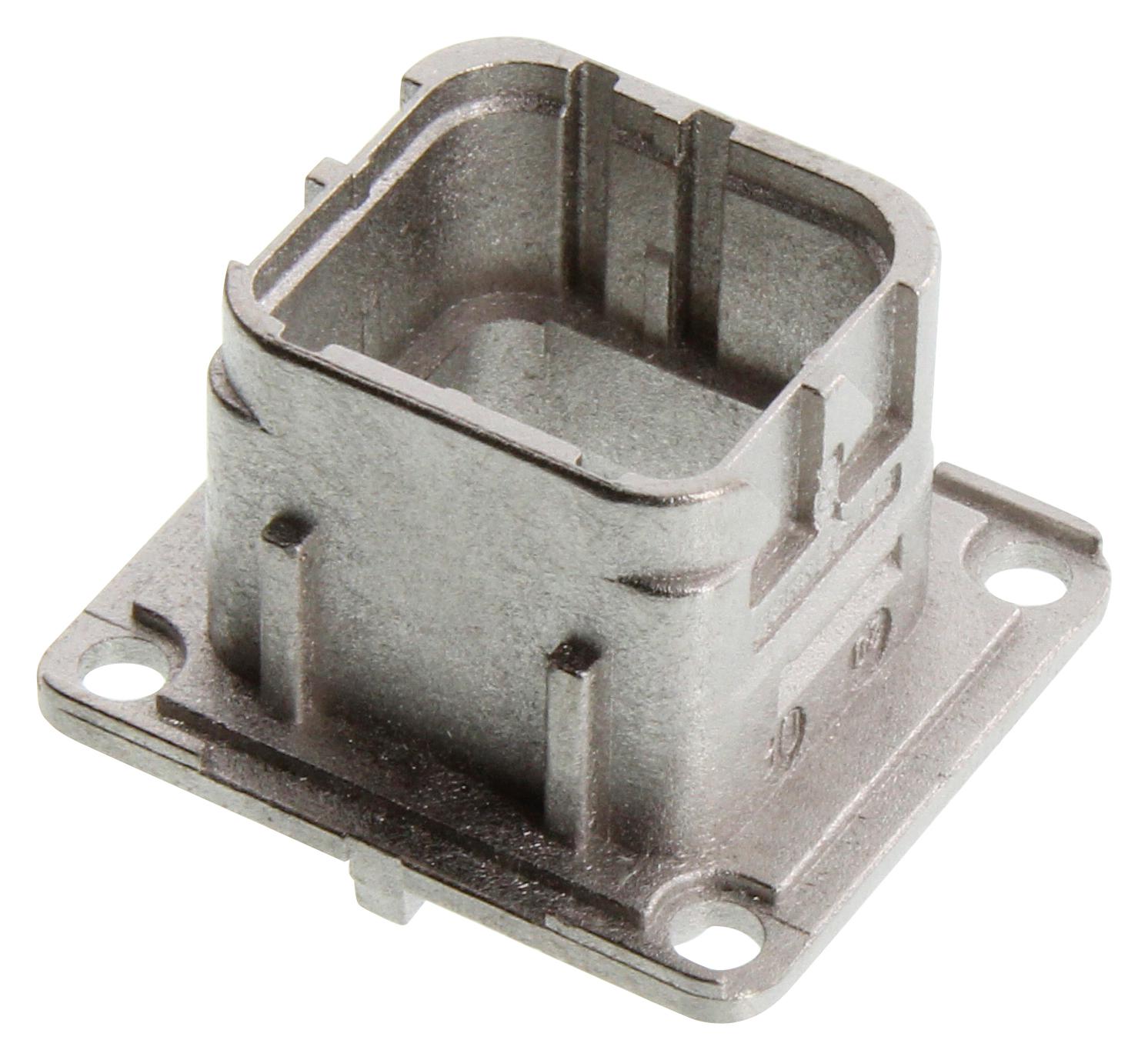

TE CONNECTIVITY DMCMD24N Modular Aerospace Connector
The Deutsch DMC-MD series connectors are modular, lightweight, and reliable for aerospace cabin systems, designed to meet EN4165, ARINC 809, and BACC65 standards. They feature robust composite housings with gold-plated copper contacts, suitable for high-temperature, vibration, and salt spray environments. Ideal for aircraft IFE and cabin applications, these single-module connectors offer flexible keying options, easy installation, and high durability, supporting up to 500 mating cycles and rated for intense operational conditions. They are compatible with various modules including electrical, fiber optic, and hybrid types for versatile aerospace wiring needs.
TE CONNECTIVITY DMCMD24N Modular Aerospace Connector Specifications:
- Housing: Composite, nickel plated
- Modules: Thermoplastic and fluoronated silicone
- Crimp Contacts: Copper alloy, plated gold over nickel
- Temperature Range: -55°C to +175°C
- Vibration: 20 g
- Salt Spray Resistance: 500 hours
- Durability: 500 mating cycles
- Interfacial Sealing: 1.1 x 10^7 Pa
- Pin Sizes: 12, 16, 20, 22, 24
- Contact Current Rating: Up to 46 A depending on size
- EMI Shielding: Attenuation up to 50 dB at 100 MHz
- Weight: Approx. 0.013 to 0.020 lbs per component
Buy the Buy Deutsch DMC Series Connectors Part Number DMCMD24N Online
Enhance your aircraft wiring with the Deutsch DMC Series Modular Connectors, offering lightweight design, high durability, and flexibility to meet EN4165, ARINC 809, and BACC65 standards. Easy to install, these connectors withstand vibration, salt spray, and high temperatures, supporting multiple modules including electrical, fiber optic, and hybrid types. Perfect for commercial aircraft cabin systems, they deliver reliable, high-performance connections that improve system maintenance, reduce weight, and ensure operational safety across demanding aerospace environments. Order online today for fast, secure delivery.
Order your Deutsch DMC Series DMCMD24N today and ensure your aerospace cabin systems benefit from reliable, lightweight, and modular connections.
