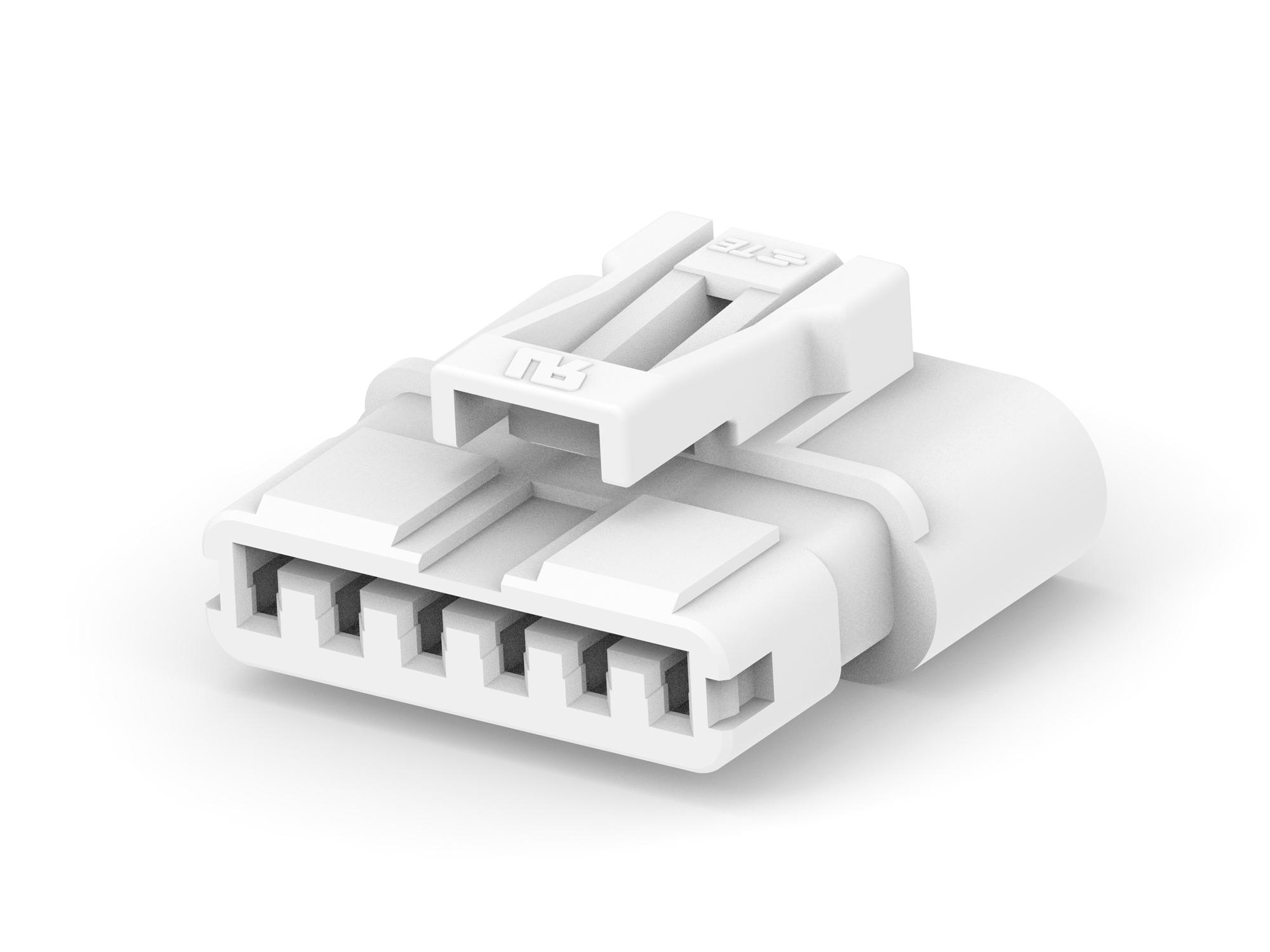

TE CONNECTIVITY 23219186 Sealed Signal Connector
The SDL2.5 plug housing offers IP67 rated waterproof and dustproof protection, ideal for harsh environments. It supports up to 3A current and 250VAC voltage, making it suitable for industrial, home appliances, and outdoor applications. Constructed from UL94-V0 flame retardant material and tested at 750°C with glow wire standards, it ensures safety and durability. Designed with a compact 2.5mm centerline spacing, this connector features a snag-proof latch, polarized terminals, and optional TPA for secure assembly. It is available in various pin configurations for flexible deployment in diverse systems.
TE CONNECTIVITY 23219186 Sealed Signal Connector Specifications:
- Waterproof IP67 rated protection against water and dust
- Maximum current: 3A per line
- Voltage rating: 250VAC
- Material: UL94-V0 flame retardant
- Glow wire test: 750°C (no flame)
- Centerline spacing: 2.5mm
- Number of pins: varies from 2 to 6
- Compatible wire range: 26-20 AWG
- Dimensions and housing types: panel mount and free hanging configurations
- Features: snag-proof latch, polarized terminals, optional TPA
Buy the Buy TE Connectivity 2.5MM Sealed Signal Double Lock Part Number 23219186 Online
Purchase the TE Connectivity sealed signal connector online today for secure, safe, and water-resistant connections in industrial, automotive, or home appliance applications. With an IP67 rating, 3A current capacity, and 250VAC voltage rating, this connector delivers durable performance even in harsh environments. Featuring UL94-V0 flame retardant material, glow wire resistance at 750°C, and a compact 2.5mm centerline, it supports quick assembly with polarized terminals, snag-proof latch, and optional TPA. Ensure reliable, safe connections for your critical systems by ordering now.
Get TE Connectivity 23219186 today—designed for water resistance, safety, and reliable connections in demanding environments.
