TE CONNECTIVITY HW318097109 High Tack Polyester Label
Tyco's high tack white polyester film is a durable thermal transfer label material designed for demanding surfaces, including textured and contoured ones. It features a permanent acrylic adhesive that bonds strongly to rough surfaces and electronics components, making it ideal for bar-coding, PCB, and general labeling. This film is compatible with Tyco's RHD series ribbons for guaranteed print performance. Its excellent chemical and fluid resistance, UV stability, and high-temperature endurance ensure long-lasting, clear, and legible printed labels in industrial environments.
TE CONNECTIVITY HW318097109 High Tack Polyester Label Specifications:
- Facestock Thickness: 0.051mm (0.0020 in)
- Adhesive Thickness: 0.046mm (0.0018 in)
- Liner Thickness: 0.081mm (0.0032 in)
- Bonding: High tack permanent acrylic adhesive suitable for textured and contoured surfaces
- Service Temperature: -40°C to 150°C (-40°F to 302°F)
- Shelf Life: 2 years at 21°C (70°F) and 50% R.H.
- Flammability: UL94 VTM-2
- Chemical Resistance: Good resistance to alcohols, oils, water, and hydrocarbons
- UV Transmittance: UV stable, suitable for outdoor applications
- Adhesion: ASTM-D-3330: Stainless steel 96N/100mm, polycarbonate 98N/100mm
- Abrasion Resistance: Excellent; maintains print legibility after 100 revolutions
- Print Performance: Compatible with Tyco T308S-PRINTER and 1330-0607-10 Ribbon
- Temperature Tolerance: Up to 150°C (302°F) for short durations
- Shrinkage: Less than 1% after exposure to 71°C for 42 hours
- Chemical Soak Resistance: Maintains adhesion after immersion in various fluids

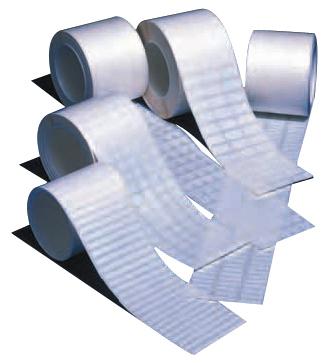

Buy the Tyco Series HW High Tack White Polyester: HW318097109
Order Tyco HW318097109 high tack white polyester labels online to ensure durable, chemical-resistant, and reliable adhesion for demanding industrial surfaces. Designed to bond to textured and contoured surfaces, these labels are ideal for electronic components, bar-coding, and general labeling needs. They sustain high temperatures and exposure to fluids without degradation, maintaining clear, legible printing. Use with Tyco’s RHD ribbons for optimal results, ensuring your labeling remains permanent, durable, and ready for outdoor or challenging environments. Shop now for fast, reliable delivery and superior performance.
Get Tyco HW318097109 today—built for demanding surfaces and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HW318097109?
You can click on the BUY or RFQ button to purchase HW318097109 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HW318097109?
You can download the HW318097109 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HW318097109?
TE CONNECTIVITY
