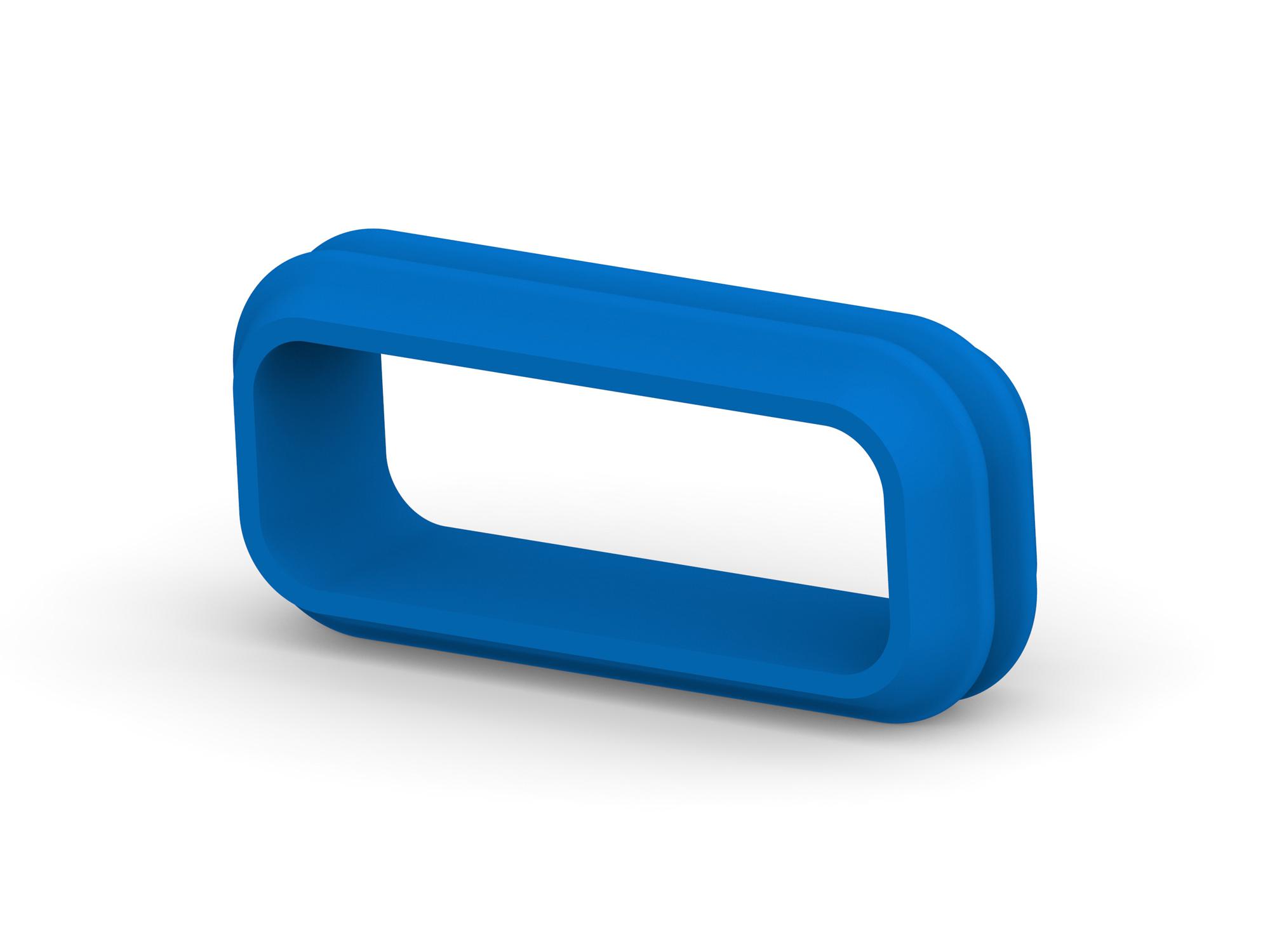

TE CONNECTIVITY 23219204 Sealed Signal Connector
Our 2.5mm Sealed Signal Double Lock connectors provide essential water and dust protection with an IP67 rated sealing, ideal for applications in harsh environments. These connectors feature a compact 2.5mm centerline, robust seals, and secondary locking safety for reliable performance in water-related and humid settings. Available in panel mount and free hanging configurations, they accept 26-20 AWG wires with rated current up to 3 amps per line and support global safety standards including UL and Glow Wire tests. Suitable for domestic, industrial, and automotive use where secure, sealed connections are required.
TE CONNECTIVITY 23219204 Sealed Signal Connector Specifications:
- Centerline Spacing: 2.5mm
- Current Rating: 3 amps per line
- Voltage Rating: 250 VAC
- Wire Range: 26-20 AWG
- Sealing: IP67 rated, perimeter silicone rubber seal
- Housing Material: Plastic with silicone rubber seal
- Locking Mechanism: Double lock with secondary locking safety
- Certifications: UL Recognized, Glow Wire (750°C, no flame), UL 94 V-0
- Configurations: Panel mount and free hanging
- Application: Water heaters, refrigeration, appliances, industrial, automotive, outdoor tools, and health care devices.
Buy the TE Connectivity 23219204 – Reliable Sealed Signal Connectors for Industrial Applications
Discover the TE Connectivity sealed signal connector with a 2.5mm centerline spacing, IP67 sealing, and secondary lock for enhanced safety and protection. Perfect for industrial, automotive, and household applications requiring water and dust resistance. These connectors support up to 3 amps and 250 VAC with wire ranges from 26-20 AWG, ensuring reliable electrical performance. Their compact size and robust design make installation straightforward, while compliance with global safety standards including UL and Glow Wire tests ensures high safety and durability in all environments. Buy online now for dependable connections that withstand harsh conditions.
Get TE Connectivity 23219204 today—designed for water resistance, durability, and secure locking in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219204?
You can click on the BUY or RFQ button to purchase 23219204 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219204?
You can download the 23219204 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219204?
TE CONNECTIVITY
