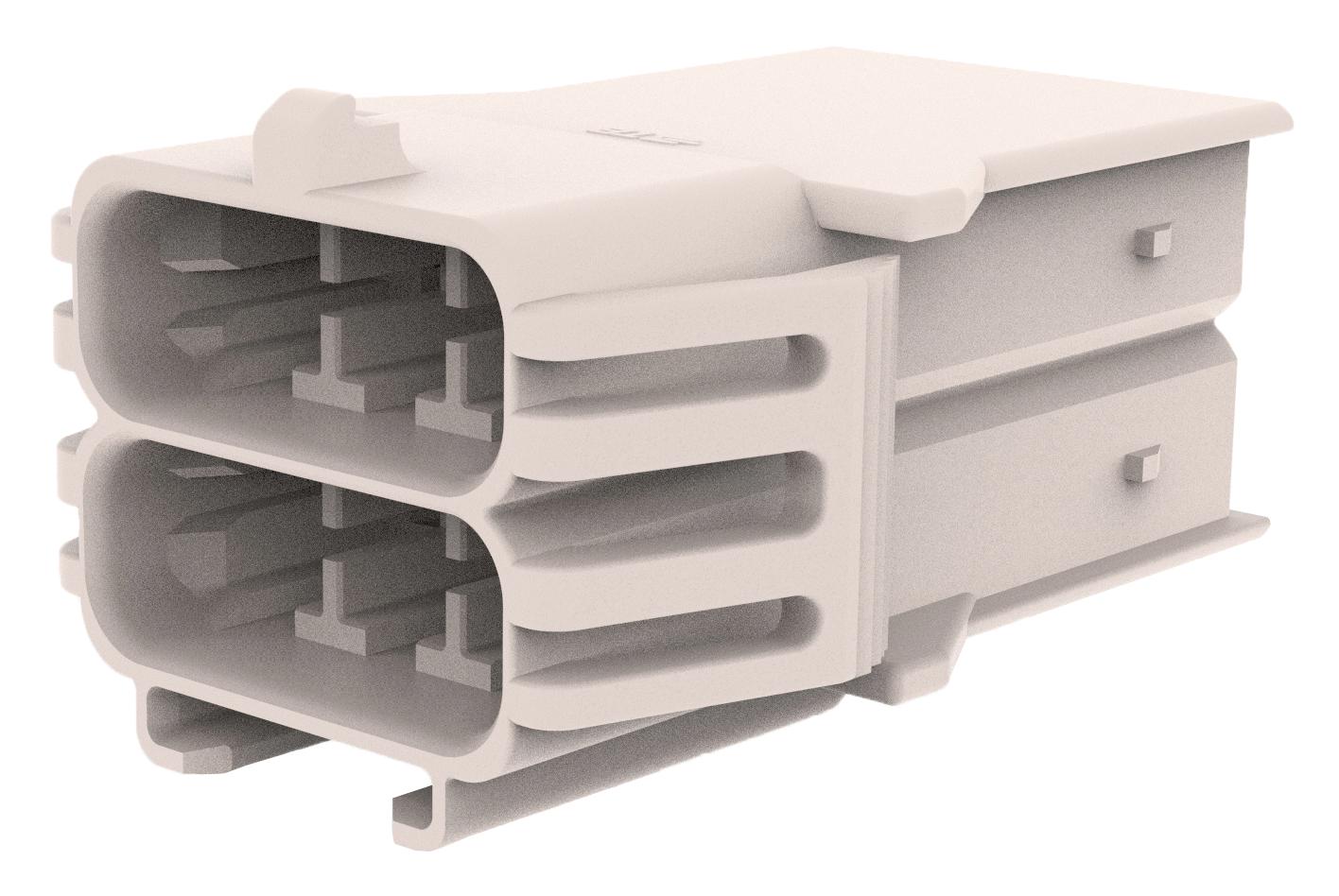

TE CONNECTIVITY 223781582 Rectangular Power Connector
The Power Versa-Lock connector system provides high-performance, water- and dust-resistant power and signal connectivity with IP67 rating. Its innovative twist and lock cap design facilitates moisture drainage in refrigeration and outdoor applications. Suitable for industrial automation, home appliances, lighting, and automotive sectors, it includes features like perimeter seals, a compact 5mm centerline pitch, and a maximum current of 15A at 600VAC. The UL 94V-0 safety-compliant housing and high-reliability contact system support diverse high-power needs, while optional mounting clips enhance stability in vibration-prone environments, ensuring durability and safety.
TE CONNECTIVITY 223781582 Rectangular Power Connector Specifications:
- Connector Type: Housing with Cap
- System Type: Wire-to-Wire
- Number of Positions: 2
- Centerline (Pitch): 5mm [.197 in]
- Features: Sealable, Twist and lock cap
- Housing Material: PBT GF
- Housing Color: Gray
- Operating Voltage: 600 V AC/DC
- Maximum Current: 15A
- Operating Temperature Range: -30°C to +140°C
- UL Flammability Rating: UL 94V-0
- Seal Type: Interfacial Seal
- Cable Exit Angle: Straight
- Mounting: Panel Mount with optional clip
- Compliance: UL E28476, RoHS, REACH, ELV
- Environmental Resistance: IP67 rated for water and dust resistance
- Housing Dimensions: Designed for compact applications
Buy the Buy TE Power Versa-Lock Part Number 223781582 Online
Purchase the TE Power Versa-Lock rectangular connector online today to benefit from its IP67-rated protection, compact 5mm pitch, and high current capacity of 15A at 600VAC. Designed for industrial automation, outdoor lighting, refrigeration, and automotive applications, this connector features a twist-lock cap for moisture drainage and UL 94V-0 safety housing. Its reliable contact system and optional mounting clips reduce vibration risks, ensuring long-term durability and safety in challenging environments. Get this high-performance, sealed power connection for your project now.
Order your TE Power Versa-Lock 2-23781 58-2 today and ensure reliable high-power connections with secure, sealed, and durable housing for demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 223781582?
You can click on the BUY or RFQ button to purchase 223781582 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 223781582?
You can download the 223781582 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 223781582?
TE CONNECTIVITY
