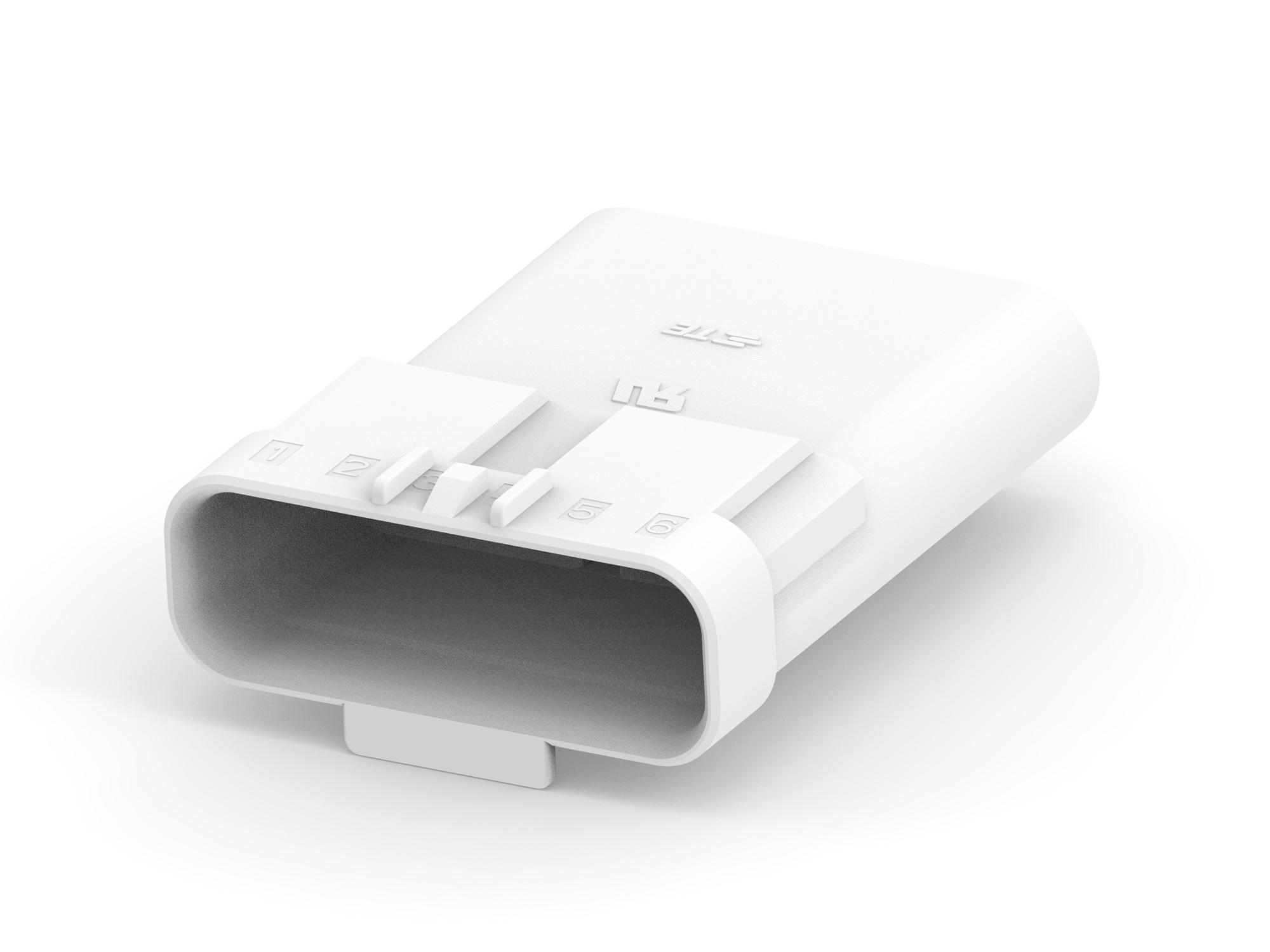

TE CONNECTIVITY 23219246 Sealed Signal Connectors
The 2.5mm Sealed Signal Double Lock connectors offer reliable IP67 rated sealing protection and secondary locking safety for harsh environments. Designed with a compact 2.5mm centerline, they support 26-20 AWG wire, rated up to 3 amps and 250VAC. Available in panel mount and free hanging configurations, these connectors feature snag-proof latches, polarized terminals, UL94-V0 compliant housings, and glow wire test approval at 750°C. Suitable for home, industrial, outdoor, and automotive applications requiring water and dust resistance, safety, and durable construction.
TE CONNECTIVITY 23219246 Sealed Signal Connectors Specifications:
- Rated current: 3A maximum per line
- Voltage rating: 250VAC
- Sealing: IP67 rated against water and dust
- Wire size: 26-20 AWG
- Material: UL94-V0 compliant housings, with glow wire test approval at 750°C
- Configurations: Panel mount and free hanging
- Features: Snag-proof latch, polarized terminals, optional TPA for secure assembly
- Application areas: Home appliances, industrial equipment, outdoor tools, automotive battery chargers
- Standards: UL Recognized, File #£28476, meets global safety and environmental tests
Buy the TE Series SDL2.5 Sealed Signal Double Lock Connectors: 23219246
Select TE Series SDL2.5 Sealed Signal Double Lock Connectors for water-resistant protection and dependable electrical performance across various industries. Engineered with IP67 sealing, these connectors support 26-20 AWG wire, rated up to 3A and 250VAC. Designed for durability, they feature snag-proof latches, polarized terminals, UL94-V0 housings, and glow wire test approval at 750°C. Ideal for home, industrial, outdoor, and automotive applications requiring robust, compact, and safe connectors available for quick online purchase.
Order your TE Series SDL2.5 Sealed Signal Double Lock Connectors today and ensure water-resistant, safe, and reliable electrical connections for your projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219246?
You can click on the BUY or RFQ button to purchase 23219246 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219246?
You can download the 23219246 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219246?
TE CONNECTIVITY
