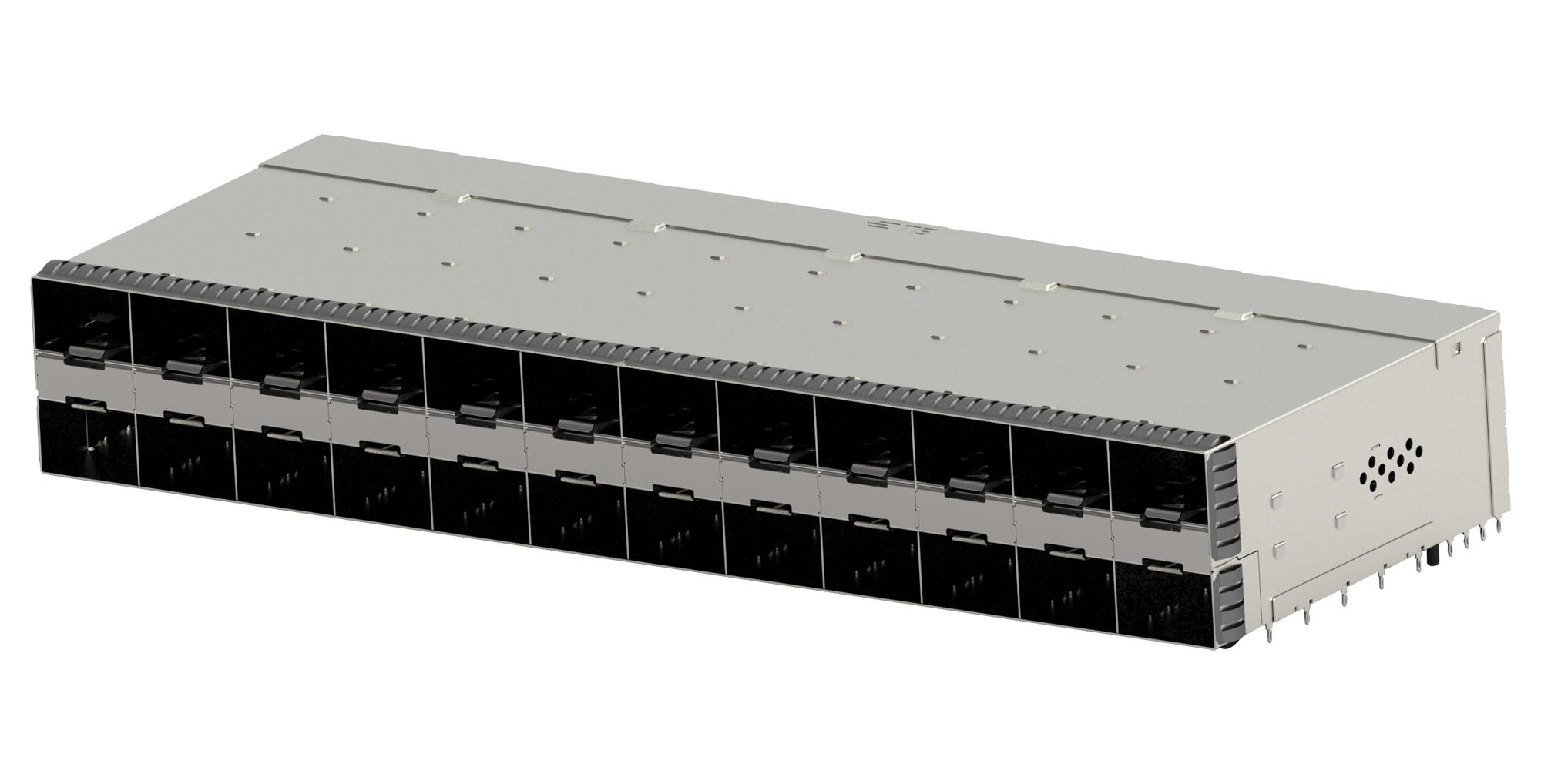

TE CONNECTIVITY 23492015 zSFP+ Interconnect
The zSFP+ pluggable I/O interconnect offers high-speed data transfer rates up to 28 Gbps NRZ and 56 Gbps PAM-4, supporting applications like Ethernet, Fibre Channel, and data centers. Designed with backward compatibility to SFP+ interfaces, it features surface-mount construction, superior signal integrity, and configurable port densities including 1x1 to 1x6 configurations and stacked assemblies. The product ensures excellent EMI containment, mechanical durability for at least 250 cycles, and operational temperature range from -40°C to +85°C, making it ideal for telecommunications, networking, and high-performance data environments.
TE CONNECTIVITY 23492015 zSFP+ Interconnect Specifications:
- Data Rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4
- Supported Protocols: 10 Gb Ethernet, 16 Gbps Fibre Channel
- Connector Design: Surface-mount, PCB footprint-compatible with SFP+
- Configurations: 1x1 to 1x6, stacked assemblies 2x1 to 2x12 port
- Housing Material: High-temperature thermoplastic, UL 94V-0 black
- Contacts: High-performance copper alloy, plated with nickel, tin, or gold
- Operating Temperature: -40°C to +85°C
- Mechanical Durability: Minimum 250 cycles
- Electrical Ratings: Max voltage 120V AC, max current 0.5A
- Electromagnetic Compatibility: EMI gaskets and springs options, configurable for containment
- Physical Dimensions: Based on port capacity and configuration, optimized for high-density applications
- Standards Compliance: SFF-8402, compatible with Fibre Channel 32G, IEEE 802.3by
- Additional Features: Light pipe options, heat sinks, LEDs, customizable cable assemblies
- Testing & Reliability: Meets industry standards with high signal integrity, low insertion, and return loss
Buy the TE Connectivity 23492015 – Reliable high-speed interconnect for industrial applications
Enhance your network performance with the high-speed zSFP+ interconnect from TE Connectivity. Supporting data rates up to 28 Gbps, it features versatile configurations, superior signal integrity, EMI containment options, and rugged durability for industrial and data center applications. Easy to install with magnetic or gasket options, it ensures reliable operation in temperature ranges from -40°C to +85°C. Upgrade your telecommunications, networking, or high-performance computing systems today and benefit from long-term cost savings and seamless system integration.
Buy TE Connectivity 23492015 now and experience unmatched reliability and high performance in data transfer and system upgrades.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23492015?
You can click on the BUY or RFQ button to purchase 23492015 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23492015?
You can download the 23492015 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23492015?
TE CONNECTIVITY
