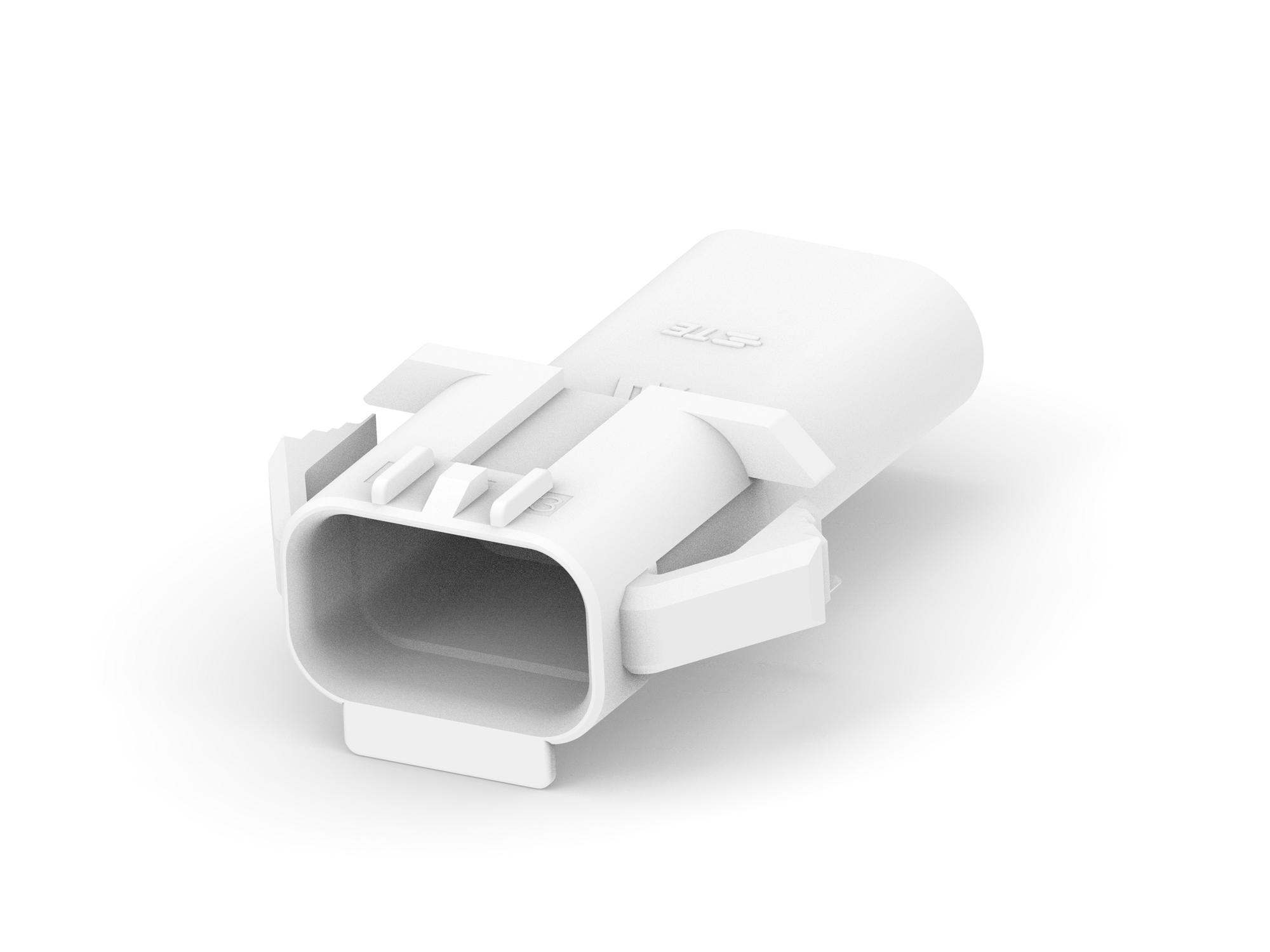

TE CONNECTIVITY 23219263 Sealed Signal Connector
This rugged 2.5mm Sealed Signal Double Lock connector offers reliable connection with a sealed IP67 rating, making it suitable for water- and dust-prone environments. Designed for applications in home appliances, industrial equipment, and outdoor tools, it features a compact 2.5mm centerline spacing that accepts 26-20 AWG wires. Rated up to 3A at 250VAC, it includes a snag-proof latch, polarized terminals, and optional TPA for secure, easy assembly. The connectors meet UL94 V-O and glow wire standards, ensuring safety and durability in demanding conditions.
TE CONNECTIVITY 23219263 Sealed Signal Connector Specifications:
- Centerline Spacing: 2.5mm
- Current Rating: Up to 3A
- Voltage Rating: 250VAC
- Wire Range: 26-20 AWG
- Sealing Protection: IP67 rated
- Flammability: UL 94 V-0
- Glow Wire Test: 750°C (no flame)
- Contact Material: Copper alloy
- Temperature Rating: -55°C to +105°C
- Housing Material: High-grade plastic
- Assembly Features: Snag-proof latch, polarized terminals, optional TPA
- Standards & Certifications: UL Recognized, File #E28476
Buy the TE Series 2.5MM Sealed Signal Double Lock: 23219263
Secure your electrical connections with the TE Series 2.5mm Sealed Signal Double Lock connector. Featuring IP67 sealing, a compact design, and rated up to 3A at 250VAC, it is ideal for water- and dust-resistant applications across home appliances, industrial equipment, and outdoor tools. The connector offers easy assembly with snag-proof latch, polarized terminals, and optional TPA for proper wire positioning. Meets UL94 V-0 and glow wire standards, ensuring high safety, durability, and performance in demanding environments.
Order your TE Series 2.5MM Sealed Signal Double Lock connector today and ensure reliable, water-resistant connections for industrial and outdoor projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23219263?
You can click on the BUY or RFQ button to purchase 23219263 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23219263?
You can download the 23219263 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23219263?
TE CONNECTIVITY
