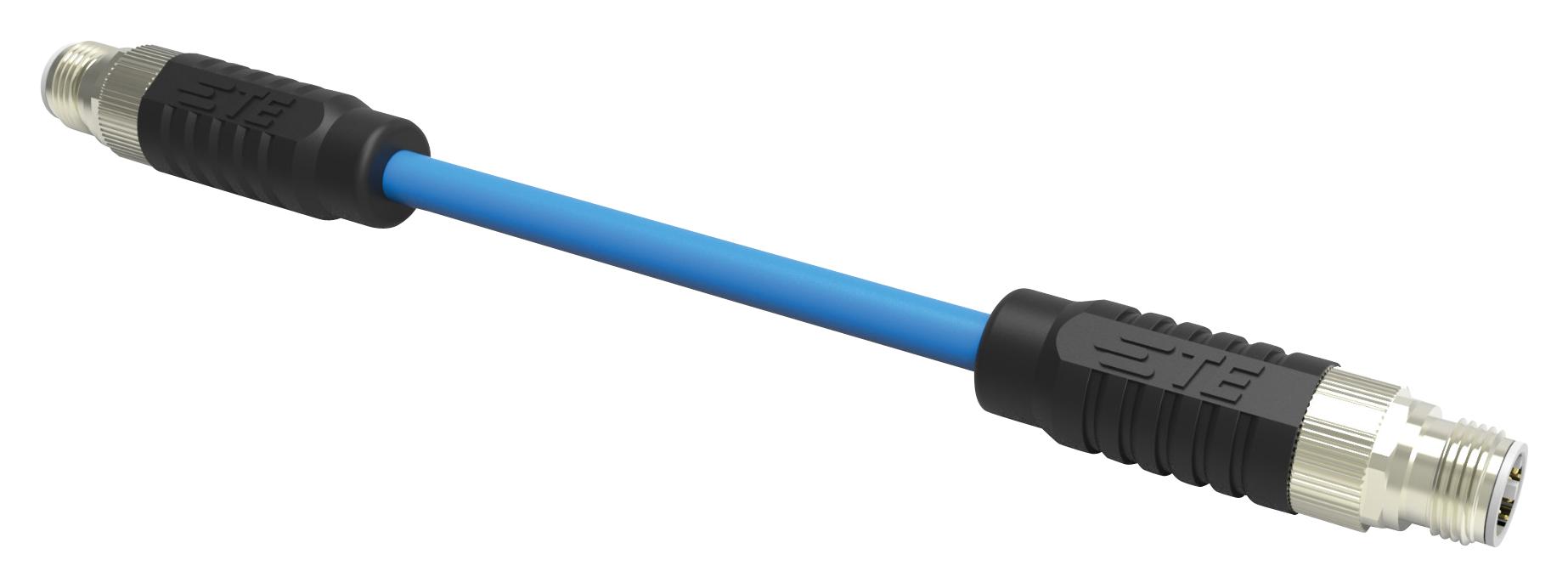

TE CONNECTIVITY 23223301 Industrial M12 Cable Assembly
TE Connectivity’s M12 cable assemblies are designed for heavy industrial applications, offering quick pre-assembly to reduce installation time. These rugged cables withstand shocks and vibrations according to EN 61373 Cat B, ensuring reliability in demanding environments. Available in straight and right-angle configurations with CATSe or CAT7 cables, they support data speeds up to 10 Gb/s, ideal for high-capacity networking. Fire and smoke compliant to EN45545 HL3, the assemblies feature crimped strain reliefs for enhanced durability. Length options from 1 to 20 meters provide flexibility in confined or extensive installations.
TE CONNECTIVITY 23223301 Industrial M12 Cable Assembly Specifications:
- Connector Gender: Male (pin)
- Coding: D-coding, A-coding, X-coding
- Number of pairs: 2 (Quad core), 4 (individually shielded)
- Cross section: 22 AWG (D4-Male), 24 AWG (CAT7x A8-Male & X8-Male)
- Temperature Range: -40°C to 85°C (without cable boot), -40°C to 70°C (with cable boot)
- Current rating: 4A (D4-Male), 2A (A8/X8-Male)
- Operational voltage: 50V (D4-Male), 30V (A8-Male), 48V (X8-Male)
- Max Data Transmission Rate: 100 Mbit/s (D4-Male), 1 Gbit/s (A8-Male), 10 Gbit/s (X8-Male)
- IP Rating: IP67
- Mating Cycles: >250
- Standards: EN61373 Cat B, EN45545 HL3, NFF-16-101 12/F2
- Features: Ruggedized, fire and smoke compliant, pre-assembled for quick installation, various lengths from 1m to 20m.
- Application: Suitable for heavy industrial environments, public transportation, high-speed data transfer, confined space operation.
Buy the TE Connectivity Series M12 Cable Assemblies: 23223301
Purchase the TE Connectivity 23223301 M12 cable assembly online today to upgrade your industrial networking setup. Designed for durability and high data speeds up to 10 Gb/s, this rugged cable features fire and smoke compliance, quick pre-assembly, and versatile lengths from 1m to 20m. Its shielded design and tough strain relief ensure long-lasting performance in harsh environments. Whether for automation, transportation, or heavy industry, buy online now and ensure seamless connectivity and reliability for your critical systems with our trusted industrial solutions.
Get TE Connectivity 23223301 today—built for industrial reliability, high-speed data transfer, and quick installation in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23223301?
You can click on the BUY or RFQ button to purchase 23223301 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23223301?
You can download the 23223301 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23223301?
TE CONNECTIVITY
