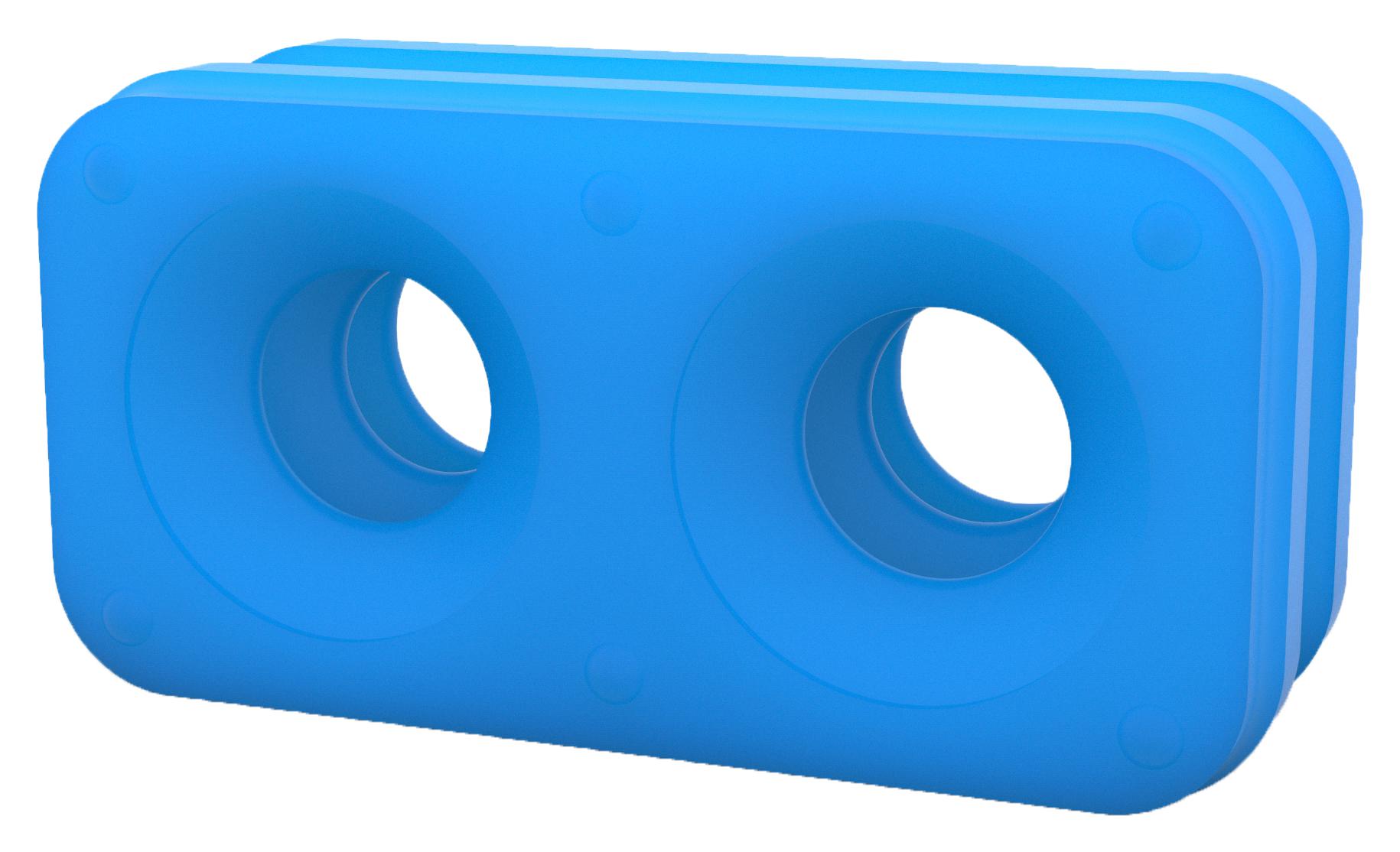

TE CONNECTIVITY 23253492 Rectangular Connector Seal
The TE Connectivity 2325349-2 is a rectangular connector seal specifically engineered for use with Power Versa-Lock 5.0 connectors. This gang wire seal is designed to provide a robust and environmentally sealed connection between wires. It accommodates wire insulation diameters ranging from 2.45 to 3.6 mm (.097 to .142 inches), making it suitable for a variety of applications. The seal is constructed from silicone rubber, offering excellent resistance to temperature extremes and environmental factors. It is commonly used in applications requiring a secure and sealed wire-to-wire connection, contributing to the overall reliability and performance of the electrical system.
TE CONNECTIVITY 23253492 Rectangular Connector Seal Specifications:
- Connector Seal Type: Gang Wire Seal
- Accepts Wire Insulation Diameter Range: 2.45 – 3.6 mm [.097 – .142 in]
- Connector System: Wire-to-Wire
- Number of Positions: 2
- Centerline (Pitch): 5 mm [ .197 in ]
- Accessory Color: Blue
- Product Type: Accessory
- Seal Color: Blue
- Seal Material: Silicone Rubber
- Material: Silicone Rubber
- Sealable: Yes
- Connector & Contact Terminates To: Wire & Cable
- Operating Temperature Range: -30 – 105 °C[-22 – 221 °F]
- For Use With: Power Versa-Lock Sealed Connectors
- Circuit Application: Power & Signal
- Comment: IP67
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Not Yet Reviewed
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021 (211). Candidate List Declared Against: JAN 2021 (211). Does not contain REACH SVHC
- Halogen Content: Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
- Solder Process Capability: Not reviewed for solder process capability
