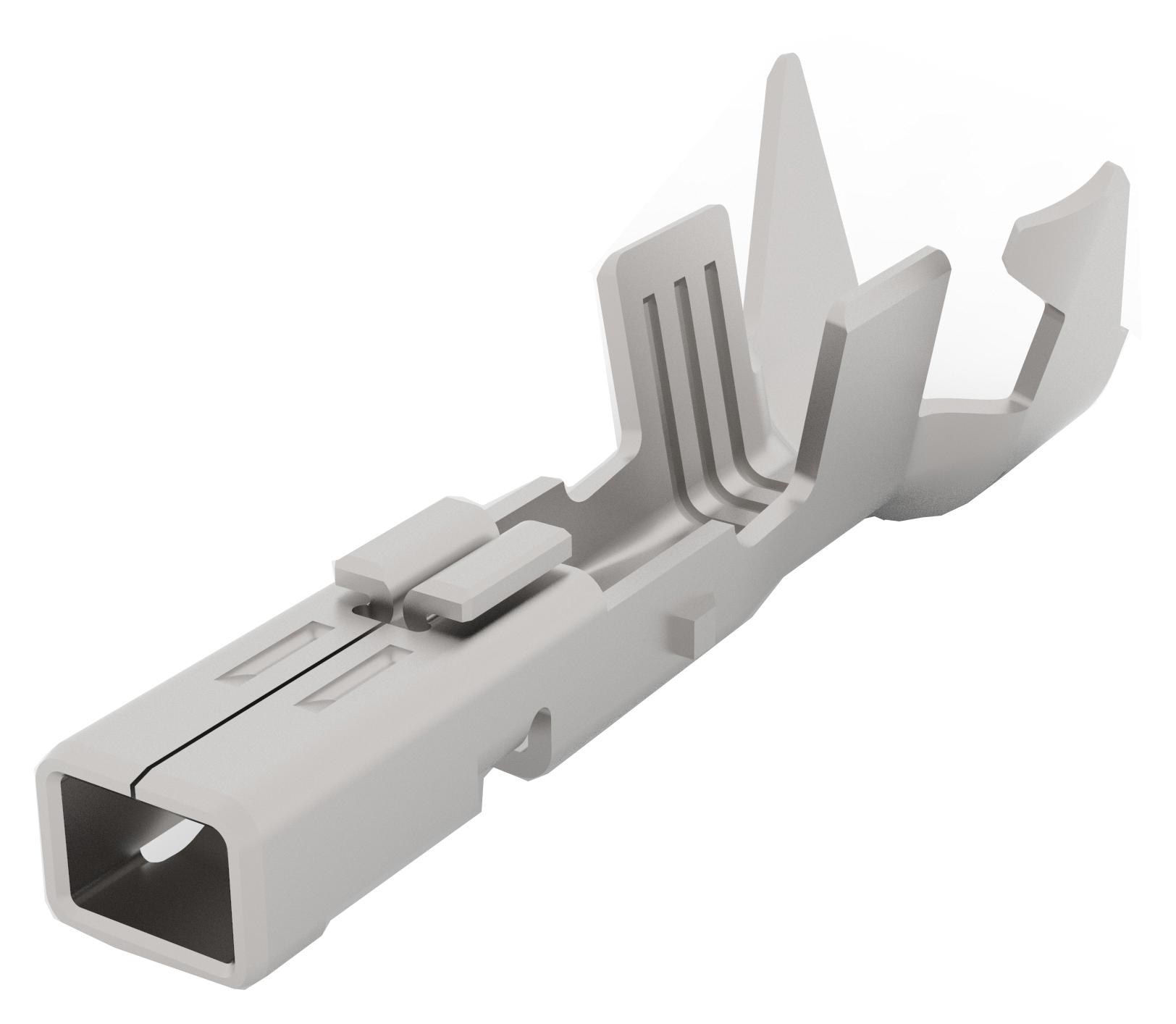

TE CONNECTIVITY 23299161 Power Contact
The TE Connectivity 2329916-1 Power Versa-Lock 5.0 contact is a robust solution for power transmission in various industrial applications. Designed for wire-to-wire connections, this contact offers a secure and reliable connection with a pre-tin plating for enhanced solderability. It supports wire sizes ranging from 16 to 14 AWG and is rated for an operating voltage of 600 VAC/VDC, making it suitable for demanding power applications. The contact is also sealed, offering protection against environmental factors. Its robust design and reliable performance make it ideal for use in automotive, industrial equipment, and power distribution systems.
TE CONNECTIVITY 23299161 Power Contact Specifications:
- Power Contact Type: Contact
- Connector System: Wire-to-Wire
- Sealable: Yes
- Connector & Contact Terminates To: Wire & Cable
- Continuous Current Rating: 15 A
- Operating Voltage: 600 VDC
- Contact Mating Area Plating Material: Pre-Tin
- Contact Current Rating (Max): 18 A
- Contact Type: Receptacle
- Contact Retention Within Housing: Without
- Mating Tab Width: 1.5 mm
- Mating Tab Thickness: .5 mm
- Contact Base Material: Copper Alloy
- Wire Contact Termination Area Plating Material: Pre-Tin
- Contact Orientation: Straight
- Termination Method to Wire & Cable: Crimp
- Carrier Strip Mount Orientation: Side Feed
- Connector Mounting Type: Panel Mount
- Wire Insulation Support: With
- Wire Size: 1.3 – 2 mm²
- Accepts Wire Insulation Diameter Range: 2.3 – 3.5 mm
- Operating Temperature Range: -30 – 105 °C
- Circuit Application: Power
- Packaging Method: Reel
- Wire/Cable Type: Discrete Wire
- Wire Type: Stranded
- For Use With: Plug Housing, Rear Seal
