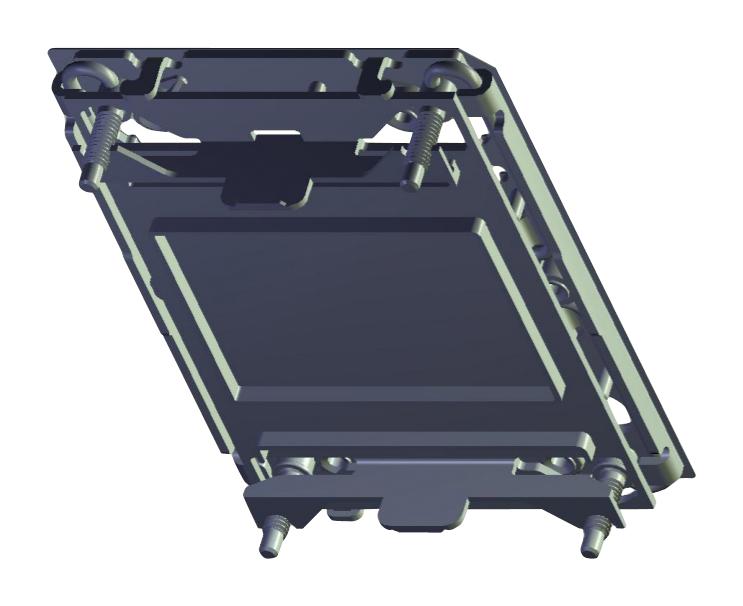

TE CONNECTIVITY 323305502 LGA 4189 Socket and Hardware
TE Connectivity’s LGA 4189 socket and hardware offer high reliability for the latest CPU platforms, supporting PCIe Gen 4 and multi-processor systems. Made with durable thermoplastic and copper alloy contacts with gold plating, these sockets support next-generation processors with a pitch of 0.9906mm and a height of 2.7mm. Designed for servers, data centers, and high-performance computing, they are qualified for 30 test cycles, providing a full solution for advanced CPU socket applications.
TE CONNECTIVITY 323305502 LGA 4189 Socket and Hardware Specifications:
- Electrical: Current rating 0.5 Amps, Insulation resistance 800 megohms min. @ 500 VDC
- Mechanical: Durability 30 cycles
- Materials: Housing made of LCP, Contact made of Copper alloy, gold plated with 15u" or 30u" thickness, Cap made of Thermoplastic
- Physical: Pitch: 0.9906mm, Support for multi-processor system, Height: 2.7mm, Support next-generation processors supporting PCIe Gen 4
- Additional: Full solution provider with socket and hardware parts available, Compatible with various PCB thicknesses (1.42mm-3.94mm), Supports high-reliability applications in data centers and HPC
Buy the TE Series LGA 4189 CPU Socket: 323305502
Enhance your high-performance computing and server systems with TE Connectivity’s LGA 4189 socket and hardware, supporting next-generation CPUs with PCIe Gen 4 compatibility. Made of durable materials, it offers a reliable connection with a pitch of 0.9906mm and a height of 2.7mm. Designed for multi-processor architectures, it withstands 30 test cycles, ensuring long-term durability. Purchase online today to integrate this advanced socket solution into your data center, HPC, or server designs for superior performance and dependability.
Order your TE Series LGA 4189 CPU socket 323305502 today and ensure your server and HPC systems operate with reliable, next-generation CPU support.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 323305502?
You can click on the BUY or RFQ button to purchase 323305502 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 323305502?
You can download the 323305502 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 323305502?
TE CONNECTIVITY
