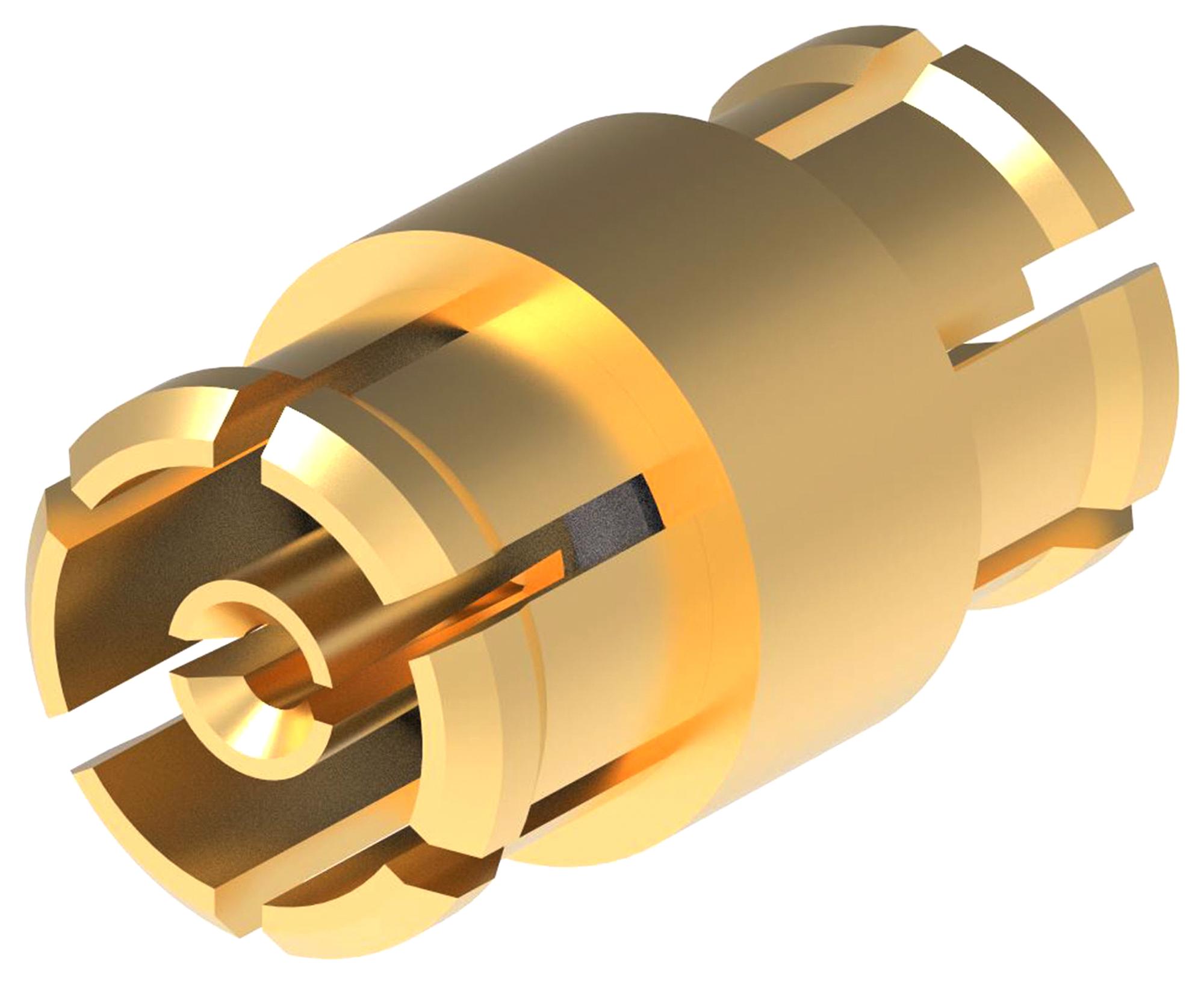

TE CONNECTIVITY 23316301 NanoRF Edge Launch Connector
TE Connectivity's NanoRF Edge Launch Connector provides a robust and space-saving solution for high-frequency applications. It eliminates the need for cables by directly terminating NanoRF contacts to the PCB, improving density and ruggedness. The connector's design supports VITA 67.3 interface for VPX implementations and is suitable for military, radar, and software-defined radio applications. It features configurable contact and module designs for various sizes and contact counts, making it versatile for diverse industrial needs.
TE CONNECTIVITY 23316301 NanoRF Edge Launch Connector Specifications:
- Frequency Range: 2 MHz to 40 GHz and 1.5:1 over the frequency range of 40 GHz to 85 GHz
- VSWR: 1.4:1 over the frequency range of 2 MHz to 40 GHz and 1.5:1 over the frequency range of 40 GHz to 67 GHz
- Crosstalk: 3 GHz to 27 GHz, achieving 100 dB
- Insertion Loss: Not be greater than 0.12 * sqrt (f) dB (where f is in GHz). Maximum insertion loss at 20 GHz = 0.5367 dB
- Standards Compliance: ['Meets VITA 72 Shock and Vibration', 'Meets VITA 67 Environmental Requirement', 'EIA-364', 'ANSI/VITA 67.3', 'ANSI/VITA 48.1', 'ANSI/VITA 46.0', 'ANSI/VITA 65.0-2019', 'ANSI/VITA 65.1-2019', 'MIL-STD-810H']
- Material (Body and Center Contact): Copper Alloy
- Material (Insulator): PTFE
- Finish (Body and Center Contact): Gold Plate over Nickel
- Finish (Rear Body): 3-15 µin. Gold Plate over Nickel
