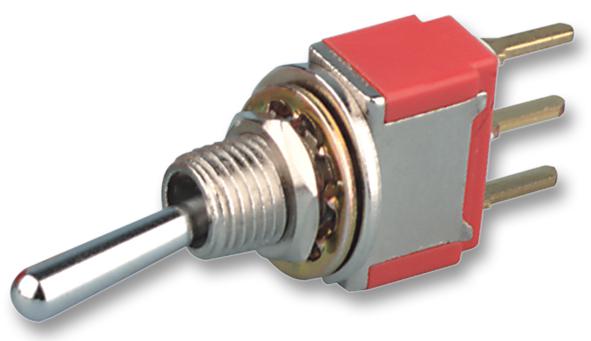

TE CONNECTIVITY A105SYCB04 Switch
The TE Connectivity Gemini Series switches feature a versatile range of toggle and rocker/paddle styles, suitable for industrial, medical, and communication applications. Designed with epoxy sealed terminals and options for single or double poles, these switches provide reliable operation in harsh environments with IP67 compliance. Crafted from corrosion-resistant materials like brass, thermoplastic cases, and gold or silver contacts, they offer excellent electrical performance, durability, and multiple actuation and termination configurations. Ideal for human interface controls with robust sealing and multiple configuration options.
TE CONNECTIVITY A105SYCB04 Switch Specifications:
- Contact Configuration: 1, 2, 3, and 4 pole options
- Contact Rating Max.: Gold: 0.4VA @20V AC/DC; Gold over Silver: 5A @ 125VAC or 28VDC resistive; Silver: 5A @ 125VAC or 28VDC resistive
- Electrical Life: 6000 cycles
- Contact Resistance, Initial: 10 mOhms max. at 2-4 VDC 100 mA
- Insulation Resistance: 1,000 MOhms
- Dielectric Strength: 1,000 Vrms @ sea level
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -30°C to +85°C
- Actuator Travel: 22° for D and E functions, 18° for F and G functions
- Material: Brass, thermoplastic, copper alloy, with gold or silver contacts
- Terminal Seal: Epoxy sealed terminals
- Ingress Protection: Meets IP67 requirements
Buy the Buy TE Connectivity Gemini Switch Part Number A105SYCB04 Online
Purchase the TE Connectivity Gemini series switch part number A105SYCB04 online and enhance your project with dependable, corrosion-resistant toggle switch solutions. Offering excellent electrical performance, robust sealing, and multiple configuration options, this switch is suitable for industrial, medical, and communication equipment. Designed with epoxy sealed terminals and high-quality materials, it ensures durability in harsh environments. Get your switch now and experience seamless operation, long lifespan, and versatile mounting options to meet your technical and operational needs.
Order your TE Connectivity Gemini series switch part number A105SYCB04 today and ensure reliable control with high durability and IP67 sealing for industrial and outdoor applications.
