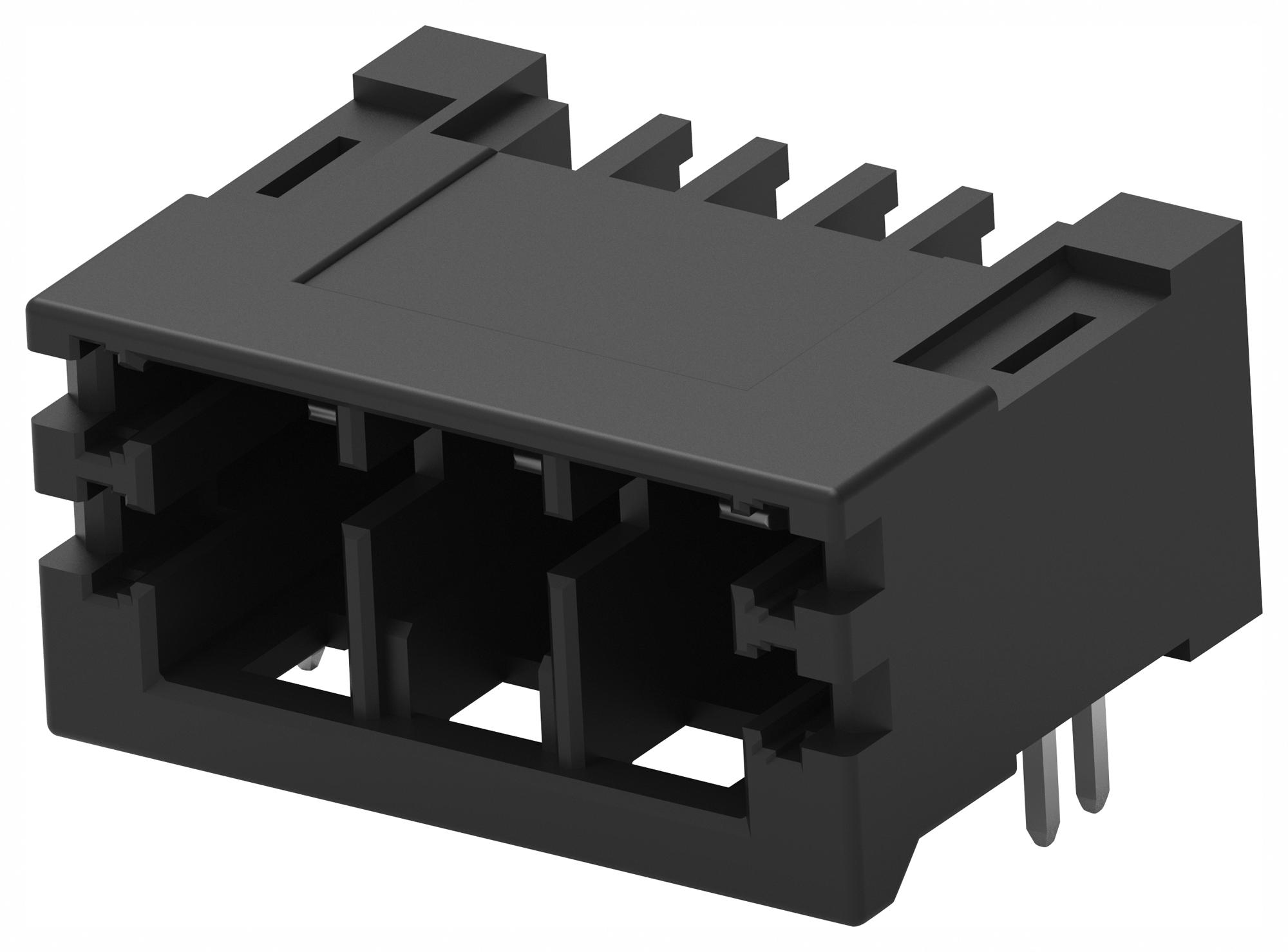

TE CONNECTIVITY 23364903 Dynamic Series PCB Connector
The TE Connectivity D-2970 Dynamic Series is a compact, wire-to-board PCB connector designed for efficient and safe installation. Its push-in clamp termination and center-locking lever significantly reduce mating time, while the tactile and audible feedback ensures secure connections. The connector's flexibility, supporting various wire sizes and mating configurations, makes it suitable for industrial applications such as servo drive/inverter power inlets, industrial microcontrols, and building automation systems. It is compliant with UL and IEC regulations and offers robust performance in demanding environments.
TE CONNECTIVITY 23364903 Dynamic Series PCB Connector Specifications:
- Applicable Wire size (Solid): AWG 24-16 / 0.2-1.5 mm[2]
- Applicable Wire size (Stranded): AWG 26-14 / 0.13-2.5 mm[2]
- Mating cycles: 50
- Wire sizes: 0.2mm[2] -2.5mm[2]
- Extraction forces (0.2mm[2]): >10N
- Extraction forces (2.5mm[2]): >50N
- Voltage (Application B): 300V AC/DC
- Voltage (Application D, 151-300V AC/DC): 10A Max
- Voltage (Application D, 51-150V AC/DC): 15A Max
- Voltage (Pollution Degree:2, Protection Class:II): 400V AC/DC
- Voltage (Pollution Degree:2, Protection Class:III): 320V AC/DC
- Voltage (Pollution Degree:3, Protection Class:III): 250V AC/DC
- Current (up to 26A): per pole @ 20°C ambient temperature
- Current (up to 20A): per pole @ 55°C application ambient temperature
- Product specification: 108-140223
- Instruction Sheet: 408-78171
- Product standards: UL1059, IEC 61984
- Electrical standards: IEC 60664-1, IEC 60947-7-1
- Environmental standards: IEC 61249-2, IPC-4101, JPCA-ES-01, JEDEC/ECA JS709A
- Mechanical standards: IEC 60999-1, IEC 60512, IEC 60529
- Flammability: UL 94 V-0, IEC 61800-5-1: GWIT over 875 deg.C
- Female Housing Material: PBT
- Male Housing Material: LCP
- Clamp Material: stainless steel
- Contact Material: copper alloy
- Plating Material: tin over nickel
