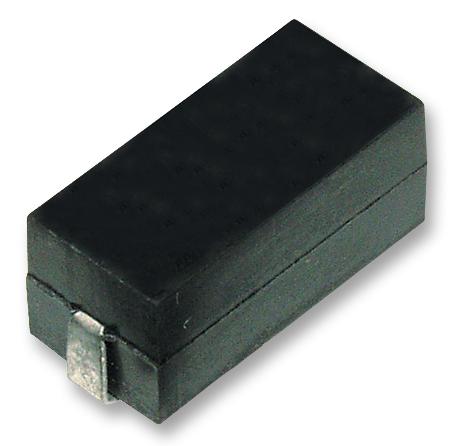

TE CONNECTIVITY SMV1W1M2JT High Voltage Power Resistor
High voltage metal-glaze surface-mount resistors designed for demanding electrical environments, providing excellent surge and pulse withstand capabilities. UL94VO flameproof, resistant to sulfur, heat, and humidity, these resistors feature stable performance over temperature variations, with resistance tolerances of ±5% or ±1%. Rated for maximum voltages up to 5000V, they are suitable for power applications requiring high surge endurance, dielectric withstand, and reliable insulation. Their compact SMD package supports high-density circuit designs, ensuring durability and consistent electrical characteristics in industrial and electronic systems.
TE CONNECTIVITY SMV1W1M2JT High Voltage Power Resistor Specifications:
- Flameproof UL94VO molded package
- Resistance Range: 100K~10M ohms
- Rated Power: 1W, 2W, 3W
- Maximum Voltage: 1600V to 5000V
- Resistance Tolerance: ±5% (J), ±1% (F)
- Resistance Temp. Coefficient: +200ppm/°C
- Operating Temperature: -65°C to +275°C
- Dielectric Withstanding Voltage: AC 1000V for 1min
- Insulation Resistance: 10,000 MΩ at DC 500V
- Pulse Loading Capabilities: IEC 61000-4-5 immunity test
- Ambient Temperature Range: -65°C to +70°C
- Load Life Stability: 1000 hours at 70°C with 90% rated power
Buy the TE Connectivity SMV1W1M2J – Reliable High Voltage Resistance for Industrial Applications
Enhance your electronic designs with our high voltage power resistors featuring UL94VO flameproof rating and sulfur resistance. Designed for demanding industrial uses, these SMD resistors withstand high surges, pulses, and temperature variations, ensuring reliable performance in power supplies, automation, and industrial control systems. Their compact size supports high-density applications, providing excellent dielectric strength and load stability. Ideal for engineers seeking durable, fail-safe resistor solutions to improve circuit resilience and safety in complex, high-voltage environments.
Buy TE Connectivity SMV1W1M2J high voltage surface-mount resistors now and experience unmatched durability, surge resistance, and thermal stability in your electronic systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV1W1M2JT?
You can click on the BUY or RFQ button to purchase SMV1W1M2JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV1W1M2JT?
You can download the SMV1W1M2JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV1W1M2JT?
TE CONNECTIVITY
