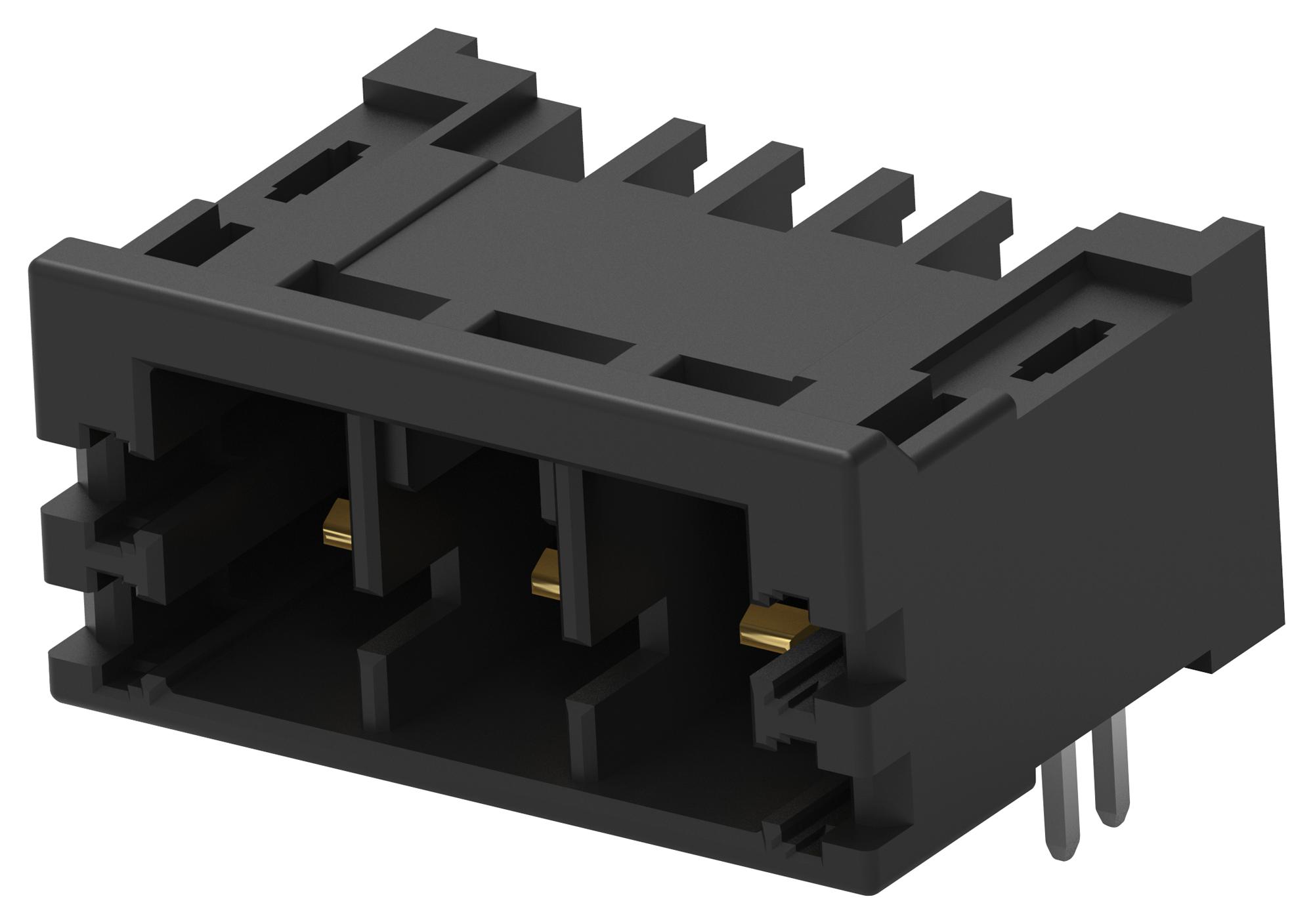

TE CONNECTIVITY 23364913 Industrial PCB Connector
The D-2970 Dynamic Series is a compact, 5-mm pitch wire-to-board PCB connector featuring field-installable push-in clamp termination and a center-locking lever for faster, tool-free connections. Suitable for industrial automation, robotics, and control systems, it offers robust housing, shock and vibration resistance, and IP20 finger-safe design. Capable of supporting up to 26A per pole at 20°C, its versatile male and female connectors accommodate various angles and pin configurations. Fully compliant with UL and IEC standards, the D-2970 ensures reliable, quick, and safe electrical connections in demanding environments.
TE CONNECTIVITY 23364913 Industrial PCB Connector Specifications:
- Voltage: 300V AC/DC (Application B), 51-150V AC/DC 15A Max, 151-300V AC/DC 10A Max
- Current: Up to 26A per pole @ 20°C, up to 20A @ 55°C
- Wire Size: Solid AWG 24-16 / 0.2-1.5 mm², Stranded AWG 26-14 / 0.13-2.5 mm²
- Mating Cycles: 50
- Extraction Force: >10N for 0.2mm strand, >50N for 2.5mm strand
- Housing Material: PBT (female), LCP (male)
- Clamp Material: Stainless steel
- Contact Material: Copper alloy, Plated with tin over nickel
- Ingress Protection: IP20 finger-safe housing
- Temperature Rating: Suitable for applications up to 20A and 400V at 55°C ambient
- Mechanical: Wire range solid and stranded, with quick to release to prevent fingertip injury
- Standards: UL 1059, IEC 61984, IEC 60947-7-1, RoHs, Reach, UL94 V-0, IEC 61800-5-1
- Features: Audible and tactile locking latch, robust design for shock and vibration resistance, various angle options
Buy the TE Connectivity D-2970 – Reliable Industrial Connectors for Automation and Control
Purchase the TE Connectivity D-2970 Dynamic Series online for rapid, tool-free assembly and dependable electrical performance. Designed for industrial automation, robotics, and control systems, this connector offers high current capacity, robust housing, and versatile configurations suitable for harsh environments. With compliant UL and IEC standards, easy locking mechanisms, and high mating cycle durability, it ensures seamless, safe, and efficient connections in demanding applications. Order now to benefit from quick delivery and reliable performance.
Get TE Connectivity D-2970 today—built for precision, quick installation, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23364913?
You can click on the BUY or RFQ button to purchase 23364913 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23364913?
You can download the 23364913 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23364913?
TE CONNECTIVITY
