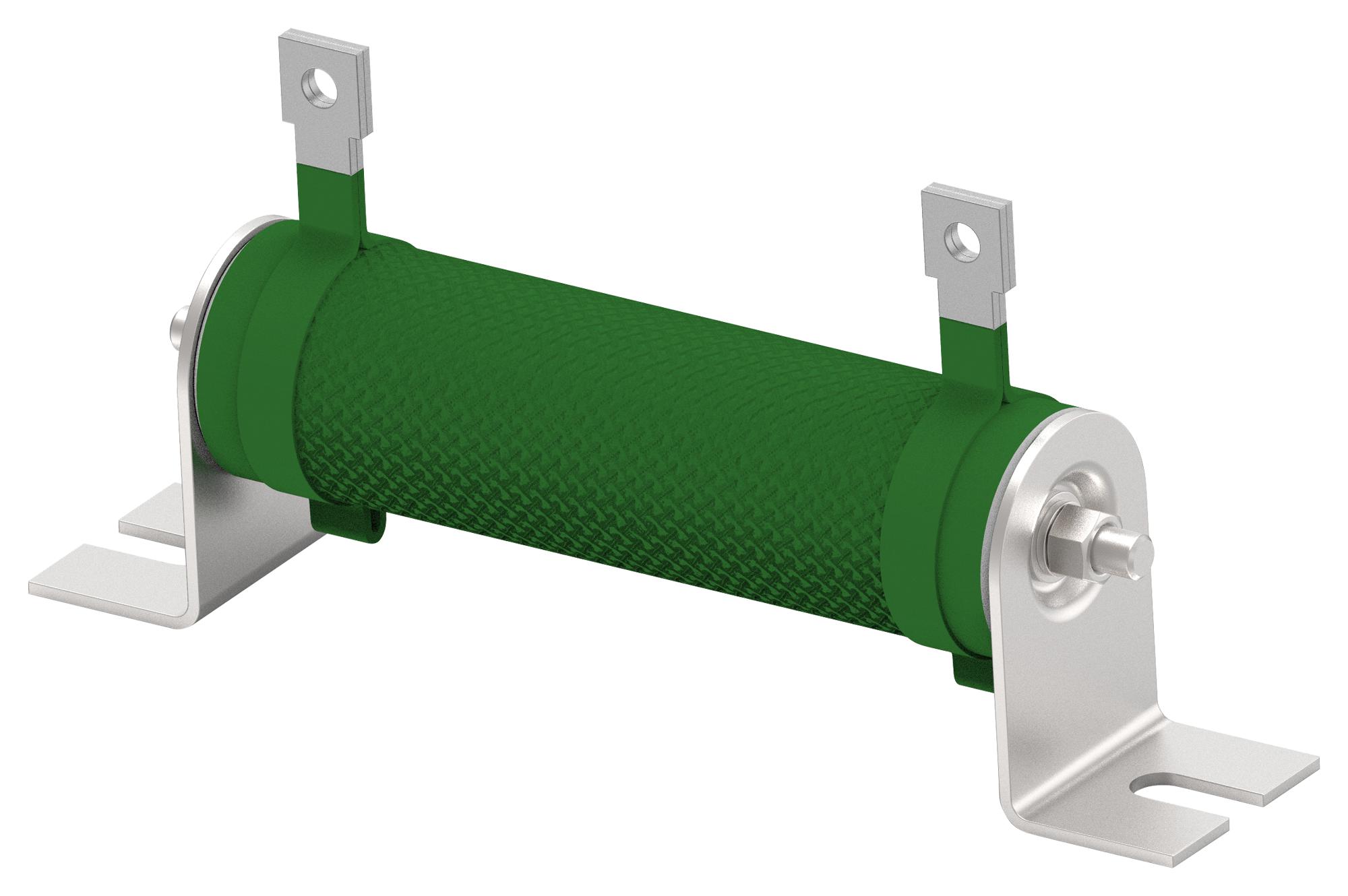

TE CONNECTIVITY TE200B2K7J Power Resistor
The TE series high power wire wound resistors feature a flameproof coating and tubular ceramic core, designed for heavy-duty machinery, electrical equipment, and motor control. They utilize standard and edge wound methods for enhanced power capacity, operate from -55°C to +155°C, and handle short-term overloads up to three times their rated power for 5 seconds. Suitable for load testing, dynamic braking, and equipment discharge, these resistors have a dielectric strength of at least 2500VAC, insulation resistance of ≥20MΩ at 500VDC, and include a mounting bracket for secure installation, ensuring reliability in demanding industrial environments.
TE CONNECTIVITY TE200B2K7J Power Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 239 x 40 x 81 mm
- Number of Terminations: 2
- Packaging Method: Box
- Passive Component Tolerance: 5%
- Resistance Class: 1kΩ - 1MΩ
- Resistance Value: 2.7KΩ
- Power Rating: 200 W
- Mounting Style: Chassis Mount
- Temperature Coefficient: +300 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2500VAC
- Insulation Resistance: ≥20MΩ at 500VDC
Buy the CGS 4-1879447-6 – Reliable Power Resistor for Industrial Applications
Order the high power wire wound resistor online today to ensure your industrial machinery operates smoothly and reliably. Featuring a flameproof coating, tubular ceramic core, and a robust 200W power rating, these resistors are ideal for load testing, motor control, and dynamic braking. They operate efficiently from -55°C to +155°C, handle short-term overloads, and include a secure mounting bracket for easy installation. Purchase now and benefit from fast delivery, trusted quality, and enhanced equipment performance.
Buy CGS 4-1879447-6 now and experience unmatched reliability and performance in heavy-duty industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE200B2K7J?
You can click on the BUY or RFQ button to purchase TE200B2K7J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE200B2K7J?
You can download the TE200B2K7J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE200B2K7J?
TE CONNECTIVITY
