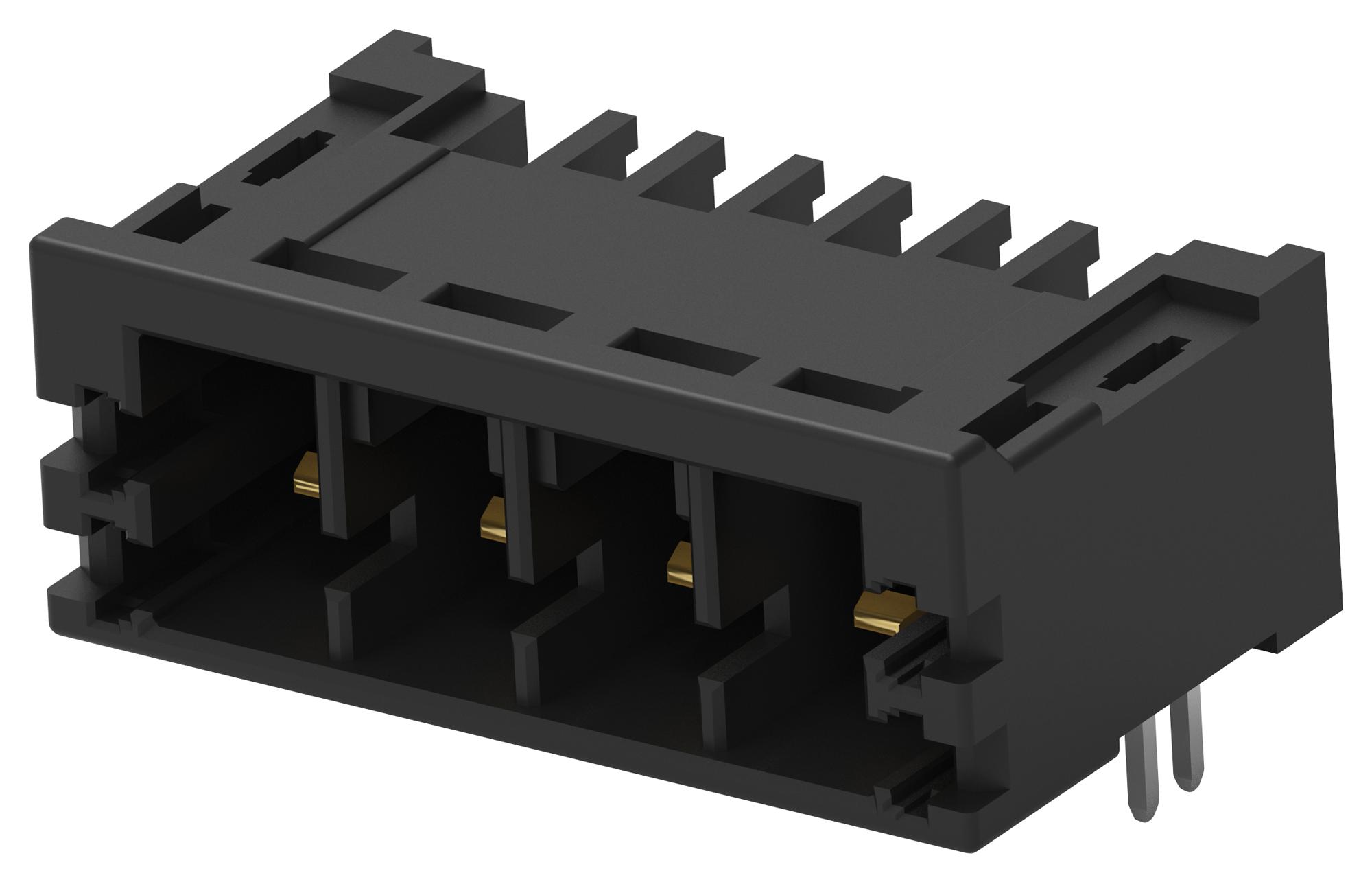

TE CONNECTIVITY 23364914 PCB Connector
The D-2970 Dynamic Series is a compact 5-mm pitch PCB connector featuring a field-installable push-in clamp termination that significantly reduces assembly time by up to 90%. This robust connector includes a tactile and audible locking latch, supports up to 50 mating cycles, and is suitable for industrial automation, servo drives, and robot controls. Made with high-quality materials such as PBT housing and stainless steel clamp, it complies with UL, IEC, RoHs, and Reach standards, ensuring safety, durability, and ease of installation in harsh environments.
TE CONNECTIVITY 23364914 PCB Connector Specifications:
- Voltage: 300V AC/DC (Application B), 51-150V AC/DC 15A Max (Application D), 151-300V AC/DC 10A Max
- Current: Up to 26A per pole @ 20°C, Up to 20A per pole @ 55°C
- Wire Size: Solid AWG 24-16 / 0.2-1.5 mm?, Stranded AWG 26-14 / 0.13-2.5 mm?
- Number of Mating Cycles: 50
- Extraction Force: >10N (0.2mm strand/solid), >50N (2.5mm strand/solid)
- Housing Material: PBT (female), LCP (male)
- Clamp: Stainless steel
- Contact Material: Copper alloy, Plated with tin over nickel
- Operational Voltage: Up to 400V AC/DC, 20A at 55°C
- Environmental Standards: IEC 61249-2, RoHs, Reach, UL 94 V-0 flammability
- Applicable Wire Sizes: 0.2mm² to 2.5mm²
- Number of Positions: 2 to 12 (versions available include 3, 4, and 12 positions)
- Design Features: Tactile and audible locking latch, IP20 finger-safe housing, field-installable push-in clamp, suitable for shock and vibration applications
Buy the TE Connectivity D-2970 – Reliable PCB Connector for Industrial Applications
Purchase the D-2970 Dynamic Series PCB connector online today and enjoy quick installation with field-installable push-in clamp technology. Designed for industrial automation, robot controls, servo drives, and building automation, this connector supports up to 50 mating cycles and handles voltages up to 400V AC/DC with a current capacity of 20A. Made from durable materials like PBT housing and stainless steel clamps, it meets UL, IEC, RoHs, and Reach standards, ensuring safety, reliability, and space-saving installation in demanding environments.
Get TE Connectivity D-2970 today—built for precision and long-lasting durability in industrial automation and power control.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23364914?
You can click on the BUY or RFQ button to purchase 23364914 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23364914?
You can download the 23364914 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23364914?
TE CONNECTIVITY
