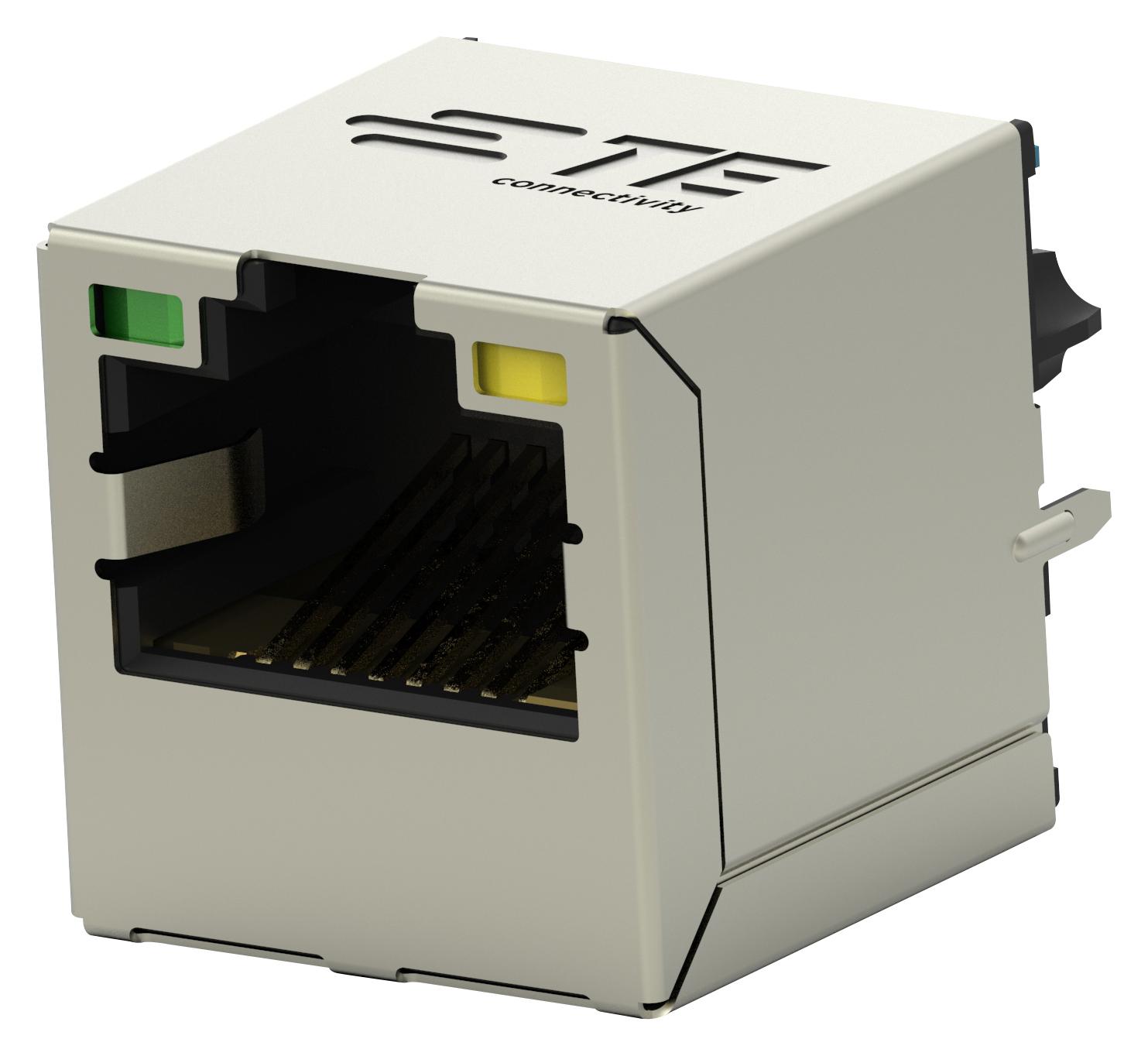

TE CONNECTIVITY 23379932 Industrial Ethernet Jack
Industrial Ethernet jacks with integrated magnetics and Power over Ethernet support reliable network connections in harsh environments. Designed for industrial applications, these jacks operate from -40°C to +85°C, supporting 10/100 Mbps and 1 Gbps Ethernet speeds with IEEE 802.3at PoE+ compliance. Constructed with high-quality materials, they feature gold over nickel plating for corrosion resistance, reflow soldering capability at 260°C, and a durable design supporting at least 750 mating cycles. Ideal for industrial machinery, automation, and communication systems, these jacks ensure EMI performance and remote power delivery, making them essential for industrial network infrastructure.
TE CONNECTIVITY 23379932 Industrial Ethernet Jack Specifications:
- Operating Temperature: -40°C to +85°C
- Ethernet Speed: 10/100 Mbps, 1 Gbps
- PoE Support: IEEE 802.3at (PoE+)
- Plating Thickness: 0.76 μm gold over 1.27 μm nickel
- Dielectric Withstanding Voltage: 2250V DC
- Material: High-grade LCP, UL94-VO
- Reflow Capability: Up to 260°C
- Moisture Sensitivity Level: MSL 1
- Electrical: Support for voltage or current mode applications
- Mechanical: Min. 750 mating cycles
- Standards: Product Specification 108-94694, Application Specification 114-94556
Buy the TE Connectivity 23379932 – Reliable Ethernet for Industrial Applications
Purchase the Industrial Ethernet Jack with integrated magnetics and PoE support online today. Designed for industrial environments, it supports Ethernet speeds up to 1 Gbps, operates within -40°C to +85°C temperature range, and is compliant with IEEE 802.3at PoE+. Its robust construction features gold over nickel plating for corrosion resistance, ensuring long-lasting performance. Reflow solderable at 260°C, it supports over 750 mating cycles and enhances EMI performance. Ideal for machinery, automation, and network systems, this highly reliable connector simplifies installation and enhances network stability in demanding industrial applications.
Get TE Connectivity 23379932 today—built for precision, durability, and industrial networking reliability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23379932?
You can click on the BUY or RFQ button to purchase 23379932 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23379932?
You can download the 23379932 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23379932?
TE CONNECTIVITY
