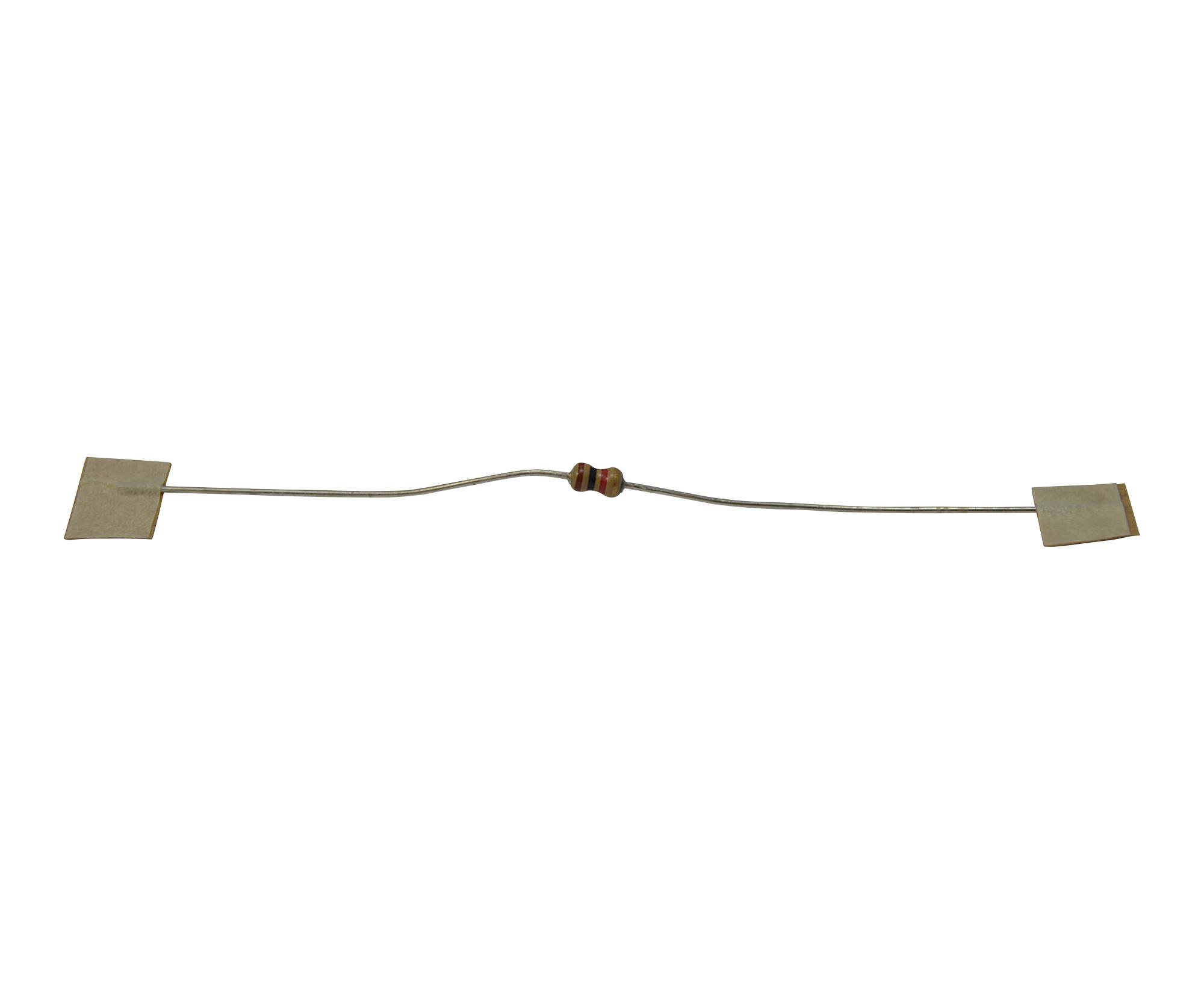

TE CONNECTIVITY CFR16J330K Carbon Film Resistor
The TE CONNECTIVITY CFR16J330K is a carbon film resistor designed for versatile applications. Its ceramic core with a high alumina content provides excellent power-to-size ratios. The resistive element is a thin film of carbon deposited on a ceramic core, ensuring consistent performance. These resistors are suitable for automatic insertion equipment and are marked with a four-color band code according to IEC 62 standards. They are commonly used in audio, communication, measurement, and computer circuits due to their cost-effectiveness and reliability.
TE CONNECTIVITY CFR16J330K Carbon Film Resistor Specifications:
- Rated Power @ 70 °C (W): 0.25
- Resistance Range (Ohms): 1R0 - 4M7
- Tolerance (%): 2-5
- Temp. Coefficient (ppm/°C): 0 to -450
- Selection Series: E24
- Limiting Element Voltage (V): 200
- Max Overload Voltage 1 (V): 400
- Max Intermittent Overload Voltage 2 (V): 500
- Operating Temp. Range (°C): -55 to +155
- Dielectric Strength (V): 400
- Insulation Resistance (Mohms): 1000
- Length (L* max.) (CFR16): 3.5
- Length (L* max.) (CFR25): 6.8
- Length (L* max.) (CFR50): 9.0
- Length (L* max.) (CFR100): 12.0
- Length (L* max.) (CFR200): 16.0
- d ±0.05 (CFR16): 0.45
- d ±0.05 (CFR25): 0.54
- d ±0.05 (CFR50): 0.54
- d ±0.05 (CFR100): 0.70
- d ±0.05 (CFR200): 0.70
- I (CFR16): 28 ± 3
- I (CFR25): 28 ± 3
- I (CFR50): 28 ± 3
- I (CFR100): 25 ± 3
- I (CFR200): 28 ± 3
