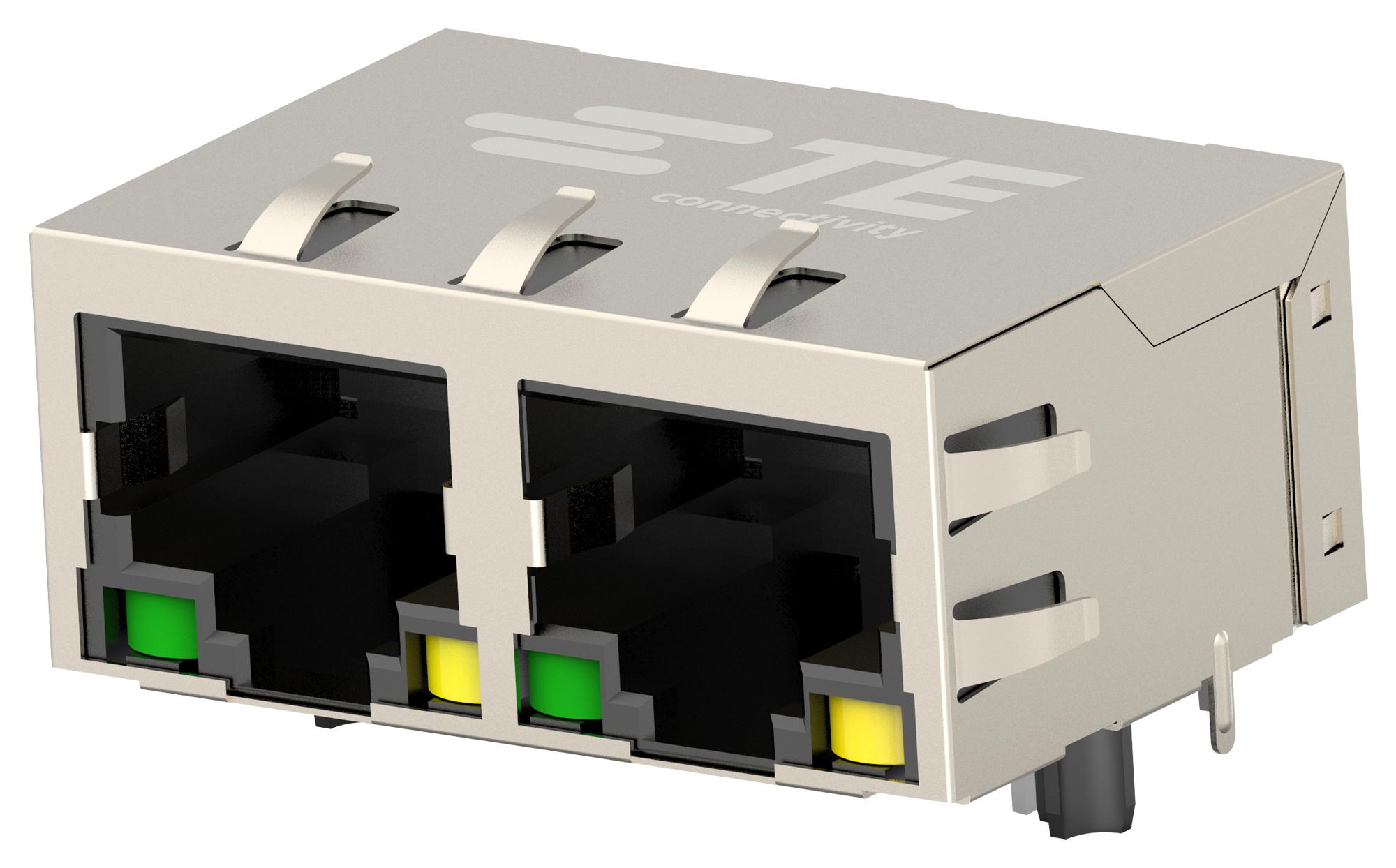

TE CONNECTIVITY 23379944 Industrial Ethernet Jack
Industrial Ethernet jacks with integrated magnetics and Power over Ethernet (PoE) support robust industrial communications. Designed for temperatures from -40°C to +85°C, these jacks enable reliable remote powering according to IEEE 802.3at standards, supporting up to 25.5W. They feature 3-wire chokes to improve EMI performance, are compatible with reflow soldering at 260°C, and have thick plating for corrosion resistance. Suitable for industrial machinery, automation, and test equipment, they ensure durable, high-performance Ethernet connections in harsh environments.
TE CONNECTIVITY 23379944 Industrial Ethernet Jack Specifications:
- Extended temperature range: -40°C to +85°C
- Supports PoE+ according to IEEE 802.3at
- Dielectric withstand voltage: 2250V DC
- Plating thickness: 0.76μm gold over 1.274μm nickel
- Reflow solder capable at 260°C
- Mechanical durability: minimum of 750 mating cycles
- Supports 10/100 Mbps and 1 Gbps Ethernet
- Supports voltage or current mode applications
- Supports EMI reduction with integrated 3-wire choke
- High-grade LCP material, UL94-V0 flammability rating
- Moisture sensitivity level (MSL): 1
Buy the TE Connectivity 23379944 – Reliable Industrial Ethernet Jacks with Integrated Magnetics and PoE
Purchase the high-performance industrial Ethernet jack with integrated magnetics and PoE support online today. Designed for harsh environments, it withstands -40°C to +85°C temperatures and features thick plating for corrosion resistance. Its compatibility with reflow soldering at 260°C simplifies manufacturing, ensuring reliable, long-lasting connections. Ideal for industrial machinery, automation, and test equipment, this Ethernet jack supports IEEE 802.3at PoE+ standard up to 25.5W, providing efficient remote power and EMI performance for critical industrial communication networks.
Get TE Connectivity 23379944 today—built for precision, durability, and industrial Ethernet applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23379944?
You can click on the BUY or RFQ button to purchase 23379944 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23379944?
You can download the 23379944 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23379944?
TE CONNECTIVITY
