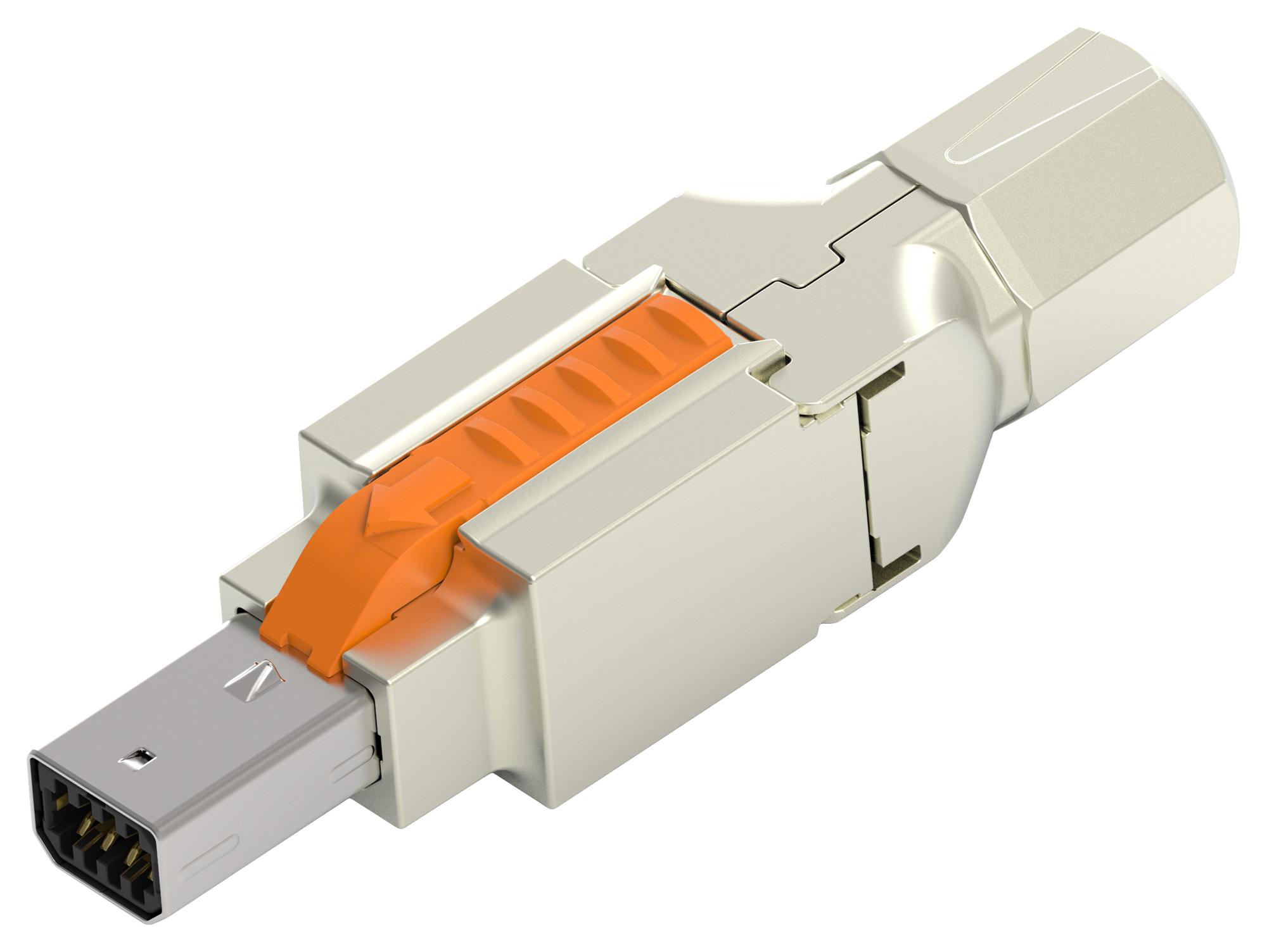

TE CONNECTIVITY 23503102 Mini I/O Connector
The TE Connectivity Industrial Mini I/O connector is designed for Cat6A Ethernet applications, offering quick and reliable field installation without the need for special tools. It supports 8-wire AWG24/26 cables and features an innovative IDC termination for fast, error-free connections. Its compact size—only a quarter of the size of traditional RJ45 plugs—saves PCB space and is ideal for industrial environments. The connector ensures optimal transmission performance by automatically trimming wires during contact. Suitable for robotics, machinery, drives, motors, and distributed peripherals, it also supports high-speed peripherals like cameras and Power over Ethernet (PoE). The system provides a wire-to-wire and wire-to-board solution for reliable serial, bus, and Ethernet connections in automation and data communication markets.
TE CONNECTIVITY 23503102 Mini I/O Connector Specifications:
- Port Matrix Configuration: 1x1
- Connector Contact Density: High
- Connector Style: Plug
- Shielded: Yes
- Housing Material: PA 4T GF30
- Centerline (Pitch): 1.27 mm [.05 in]
- Operating Temperature Range: -40 to 105 °C [-40 to 221 °F]
- Wire & Cable Support: 8-wire AWG24/26
- Industry Standards: Meets Category 6A performance
- Housing Features: Cable mount (free-hanging)
- Certifications: Compliant with EU RoHS, REACH, ELV directives
- Maximum Current Rating: Not specified
- Mating Compatibility: Standard Ethernet interfaces
- Mounting Type: Cable-to-Board, Cable-to-Cable
- Performance Category: Cat 6A
- Packaging: Carton, small quantity for industrial use
Buy the TE Connectivity 23503102 – Reliable Ethernet Connector for Industrial Applications
Purchase the TE Connectivity Mini I/O Connector for Cat6A Ethernet, offering high contact density, shielded design, and quick IDC termination. Compact size saves PCB space, making it ideal for industrial automation, robotics, and high-speed data transfer. Supports 8-wire AWG24/26 cables, ensuring reliable Ethernet, serial, and bus connections. Easy field installation without special tools reduces downtime. Crafted with durable materials, it is suitable for rugged environments and compliant with major industrial standards. Enhance your industrial networking with this reliable, space-saving connector available online now.
Get TE Connectivity 23503102 today—built for quick field installation and high durability in demanding industrial environments.
