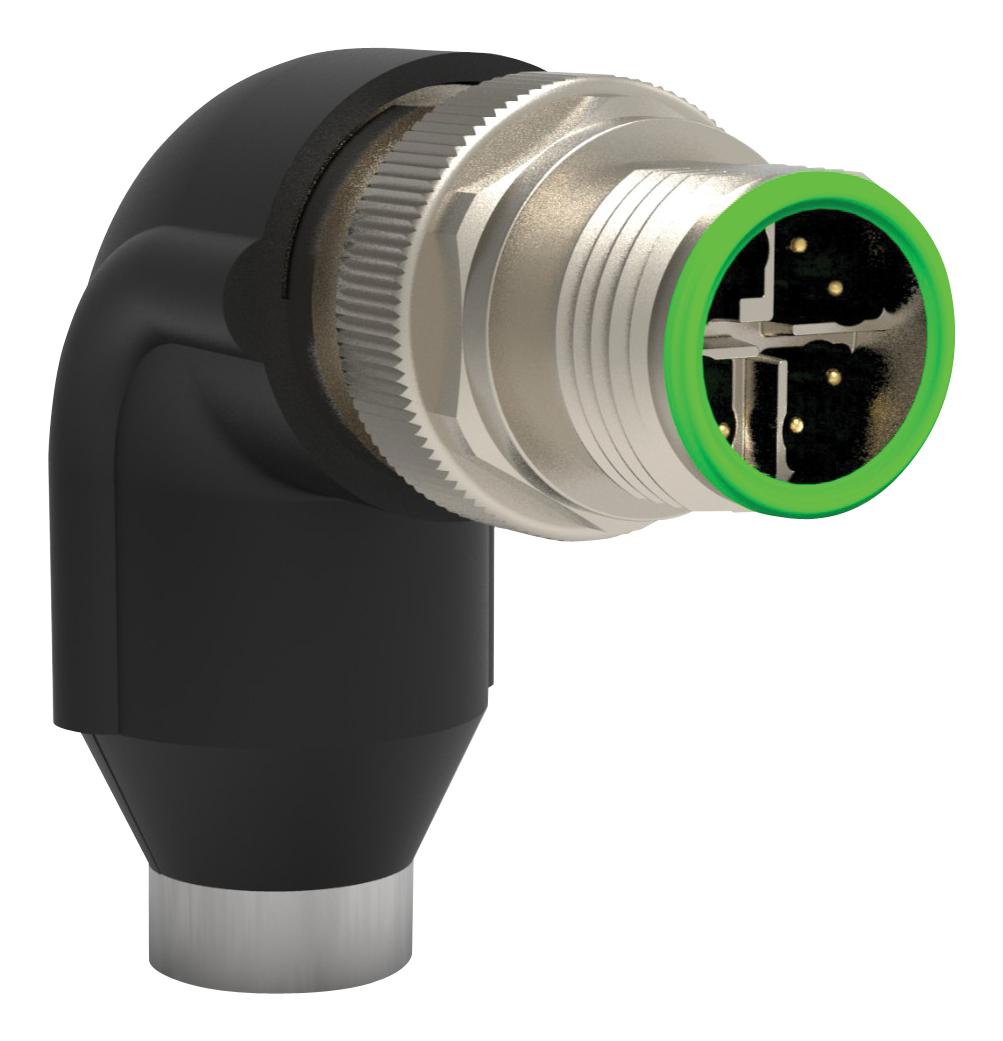

TE CONNECTIVITY 23507911 Industrial M12 Connectors
The M12 X-Coded Right Angle connector is a highly ruggedized, compact industrial component designed for efficient field assembly in railway and industrial environments. It features IP67 waterproof protection, quick assembly with pre-assembled components, and flexible cable exit options at 45° increments. With a data transmission rate up to 10Gb/s, it supports onboard Ethernet, passenger info, surveillance, and Wi-Fi systems. Constructed with Cu Alloy and elastomer seals, it offers durability, vibration resistance, and excellent shielding for reliable high-speed data communication in harsh conditions.
TE CONNECTIVITY 23507911 Industrial M12 Connectors Specifications:
- Dimensions: Length 35.6mm, Width 43.4mm, Height 42.2mm
- Material: Housing Cu Alloy Ni plated, Contact holder Thermoplast, O-Ring Elastomer, Grip TPE
- Electrical: Data rate up to 10Gb/s, Current 0.5A, Nominal Voltage 48V, Contact Resistance <5mΩ
- Environmental: Temp range -40°C to 70°C with booth, -40°C to 85°C without booth, IP67 waterproof
- Mechanical: Durability 250 cycles, Vibration tested EN 61373 Category 1, class B
- Conductor size: AWG22-26
Buy the TE Connectivity Series M12 X-Coded Right Angle: 23507911
Purchase the TE Connectivity M12 X-Coded Right Angle connector online today and ensure robust, fast, and reliable Ethernet connections for industrial and railway systems. Its IP67 waterproof design, quick assembly, and flexible cable exit options make it ideal for confined spaces and demanding environments. Constructed with durable materials and featuring shielded contacts, this connector provides excellent resistance to vibrations and torsion, supporting data rates up to 10Gb/s. Upgrade your industrial network systems with this high-performance, field-assembly capable solution for enhanced reliability and performance.
Buy TE Connectivity M12 X-Coded Right Angle connector now and experience reliable high-speed industrial communication in harsh environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23507911?
You can click on the BUY or RFQ button to purchase 23507911 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23507911?
You can download the 23507911 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23507911?
TE CONNECTIVITY
