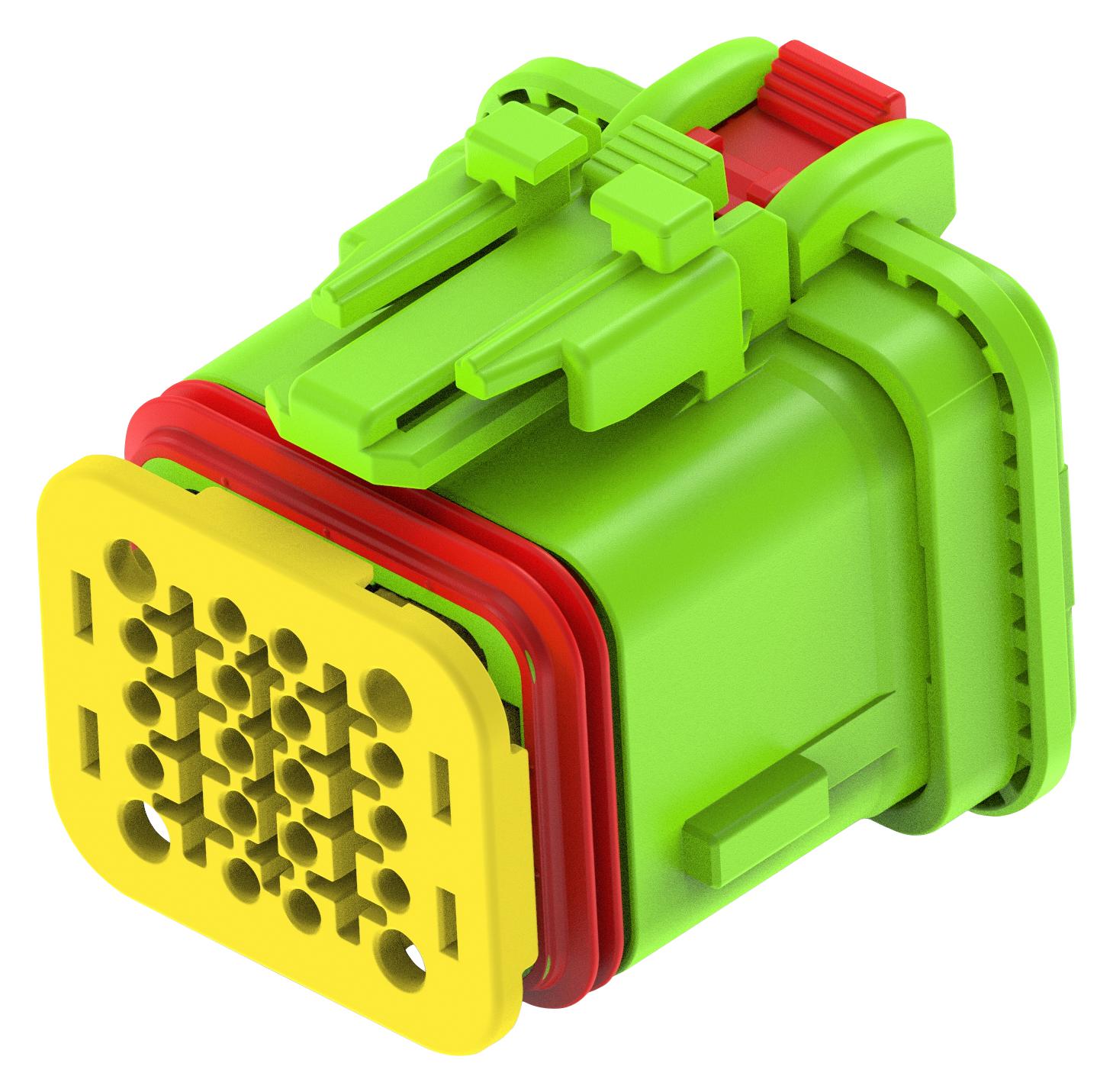

TE CONNECTIVITY 23508903 20-Position Sealed Connector
This application specification details the guidelines for using and mounting 20-position high-density sealed connectors and their accessories. It provides comprehensive information for both plug and receptacle connectors, covering aspects like assembly, disassembly, and accessory usage (backshells, mounting clips, blind blocks, and terminal crimping specifications). The document is intended to guide users in the proper application and maintenance of these connectors, ensuring reliable performance in various industrial settings.
TE CONNECTIVITY 23508903 20-Position Sealed Connector Specifications:
- application: Application and mounting of subject connectors and their accessories
- purpose: Guidelines for application and mounting
- connector_type: 20Pos. connector
- connector_description: Plug connector, Receptacle connector, Accessories
- accessories: ['Backshells', 'Mounting clip', 'Blind block', 'Applicable terminal and crimping specifications', 'Flange fixation application for Rec. connector']
- loading: Loading connector with Contacts, Loading Plug connector with Contacts, Loading Receptacle connector with Contacts
- extracting: Extracting Contacts from the connector, Extracting Contacts from plug connector, Extracting Contacts from Rec. connector
- mating: Mating Plug& Receptacle connector
- unmating: Unmating Plug& Receptacle connector
Buy the 2350890-3 TE CONNECTIVITY 20-Position Sealed Connector | myMectronic
Purchase the TE CONNECTIVITY 2350890-3 20-Position Sealed Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23508903?
You can click on the BUY or RFQ button to purchase 23508903 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23508903?
You can download the 23508903 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23508903?
TE CONNECTIVITY
