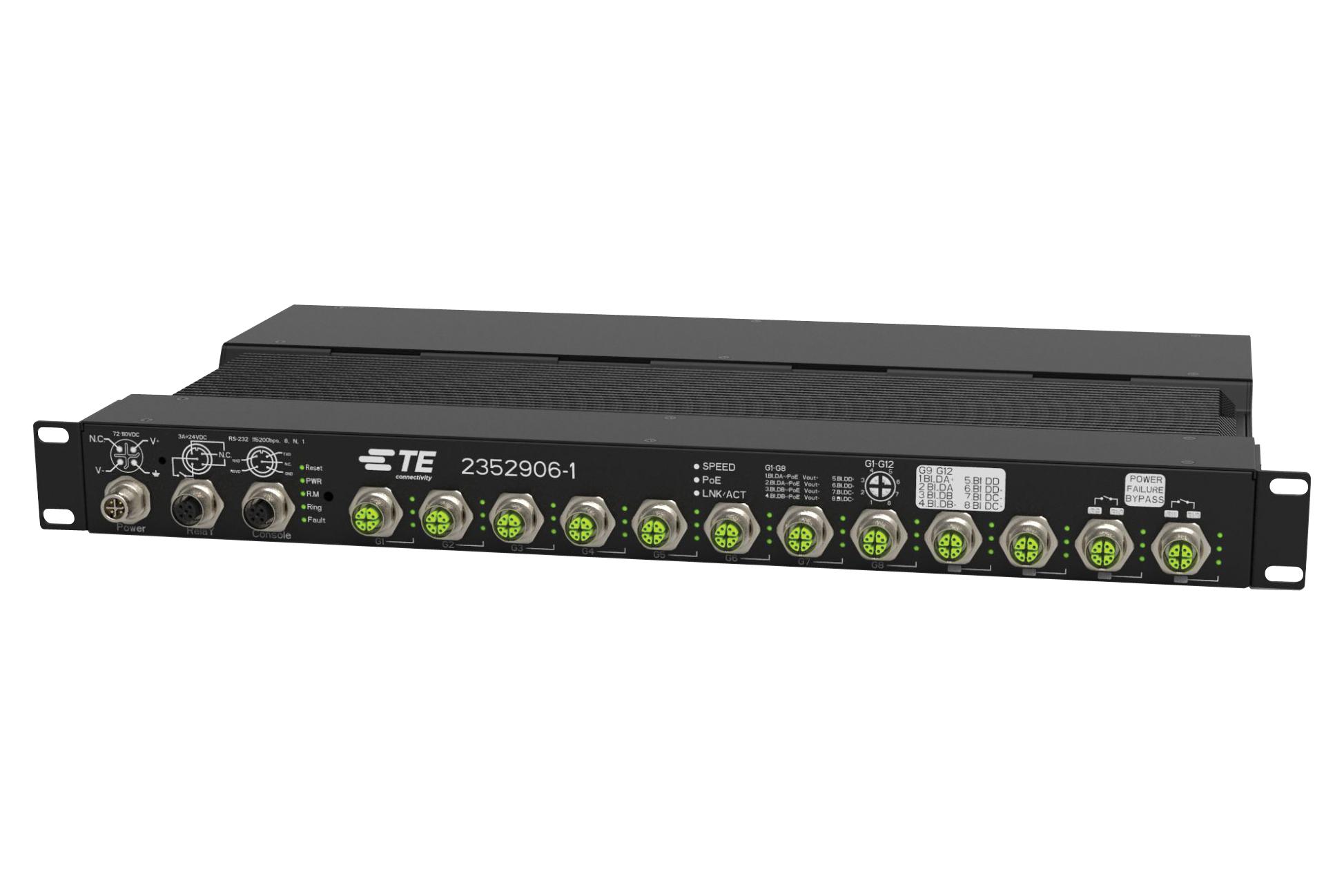

TE CONNECTIVITY 23529061 12-Port Gigabit Ethernet Switch
The TE Connectivity 2352906-1 is a managed 2.5/10 Gigabit Redundant Ring Ethernet switch built for demanding industrial environments. It offers features like TE-Ring for rapid network recovery, TE-Chain for enhanced redundancy, and advanced security measures such as device binding and DOS/DDOS prevention. With support for IEEE 802.3az Energy-Efficient Ethernet and Modbus TCP, this switch provides a robust and versatile solution for critical network infrastructure.
TE CONNECTIVITY 23529061 12-Port Gigabit Ethernet Switch Specifications:
- Physical Ports: 12 x M12 connector (8-pin M12 female X-coding), 8 ports with P.S.E.
- Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3x, 802.3ad, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1x, 802.1AB, 802.3at
- MAC Table: 8k
- Priority Queues: 8
- Processing: Store-and-Forward
- Switching Latency: 7 us
- Switching Bandwidth: 24Gbps
- Max Number of VLANs: 4095
- IGMP Multicast Groups: 128 per VLAN
- Port Rate Limiting: User defined
- Jumbo Frame: Up to 9.6K Bytes
- Security Features: Device Binding, MAC-based port security, VLAN, Radius, SNMPv3
- Software Features: STP/RSTP/MSTP, TE-Ring, TE-Chain, TOS/Difserv, VLAN, IGMP Snooping, IP-based bandwidth management, Application-based QoS, DHCP Server/Client/Relay, SMTP Client, Modbus TCP
- Network Redundancy: TE-Ring, TE-Chain, MSTP
- RS-232 Serial Console Port: RS-232 in M12 (5-pin female A-coding) connector, 115200bps, 8, N, 1
- Power Indicator: Green
- Ring Master Indicator: Green
- TE-Ring Indicator: Green/Blinking
- Fault Indicator: Amber
- 10/100/1000Base-T(X) Port Indicator: Green/Amber/Off (Speed), Green (PoE), Green (Link/Act)
