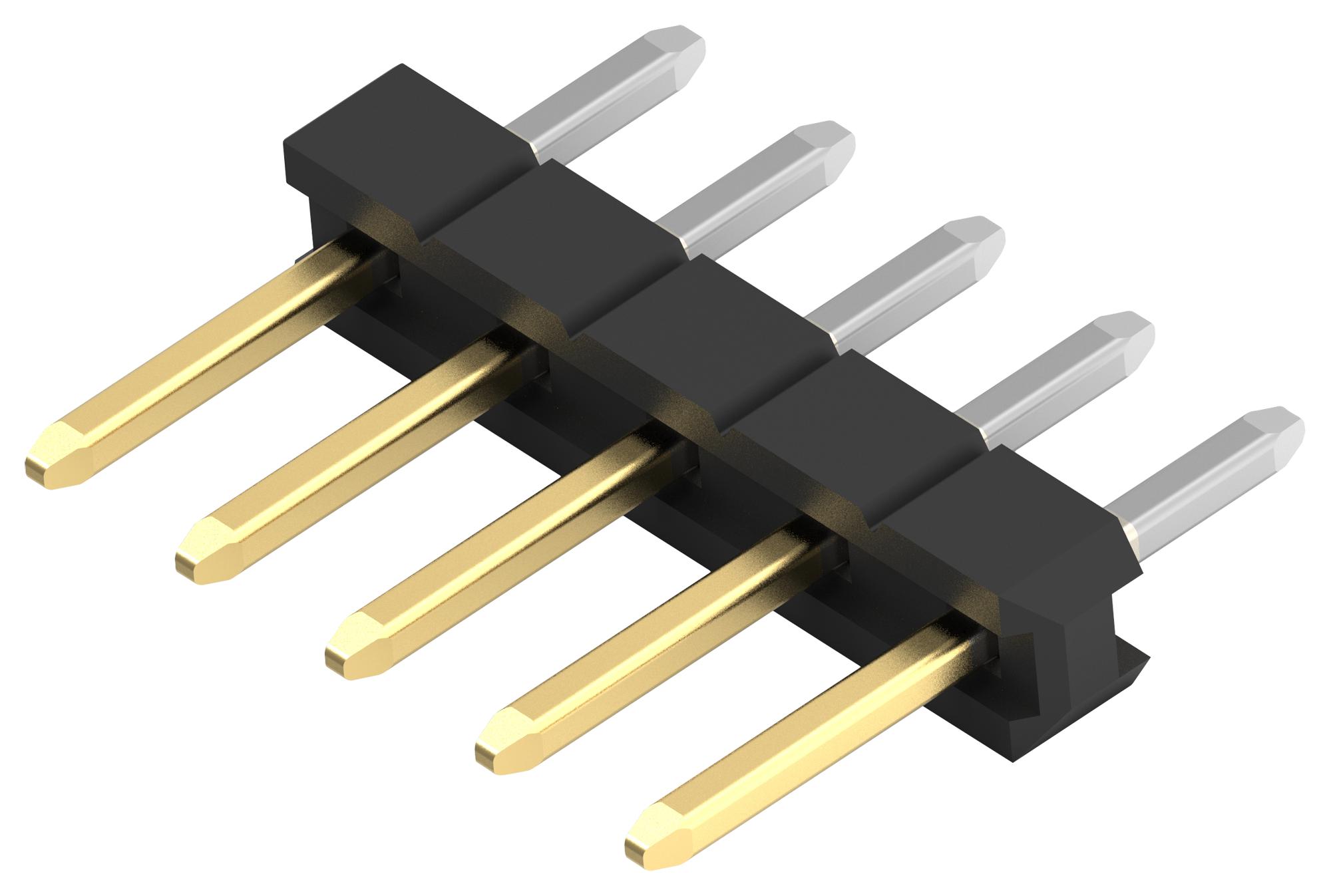

TE CONNECTIVITY 23551826 2mm Breakaway Header
TE Connectivity's AMPMODU 2mm breakaway headers provide a space-saving and versatile interconnect solution for a wide range of industrial applications. These headers feature a centerline of 2mm, reducing board space by 38% compared to traditional 2.54mm headers. They are compatible with major brand receptacles and offer flexible mounting options, including automated surface mounting, through-hole-reflow, and traditional through-hole mounting. Ideal for applications such as PLC, servo drives, industrial controls, material handling, and instrumentation, these headers contribute to more compact and efficient PCB designs.
TE CONNECTIVITY 23551826 2mm Breakaway Header Specifications:
- Centerline: 2.00mm [0.079”]
- Contact Dimension: 0.50mm [0.02”] square pins
- Connector Size: 2-25 positions per row, single and double row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Environment Class: Class III
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Plating: 0.76 µ m [30 µ ’’] Gold, 0.38 µ m [15 µ ’’] Gold, 0.1 µ m [4 µ ’’] Gold, Tin
- Housing Material: High Temperature Plastic, UL 94V0, Black
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder: Capable to 260°C
- Vibration: No electrical discontinuity greater than 1 microsecond
- RoHS Compliant: Yes
- UL Certified: Yes
- Product Specification: 108-64040
- Application Specification: 114-32259
